🔧 Lenovo ThinkPad Ultra Dock 40A2 (FRU: 00HM917)

Mechanical docking | 2× DisplayPort · HDMI · DVI-D · VGA | 6× USB | Gigabit LAN | Midnight Black

⚙️ PRODUCT OVERVIEW

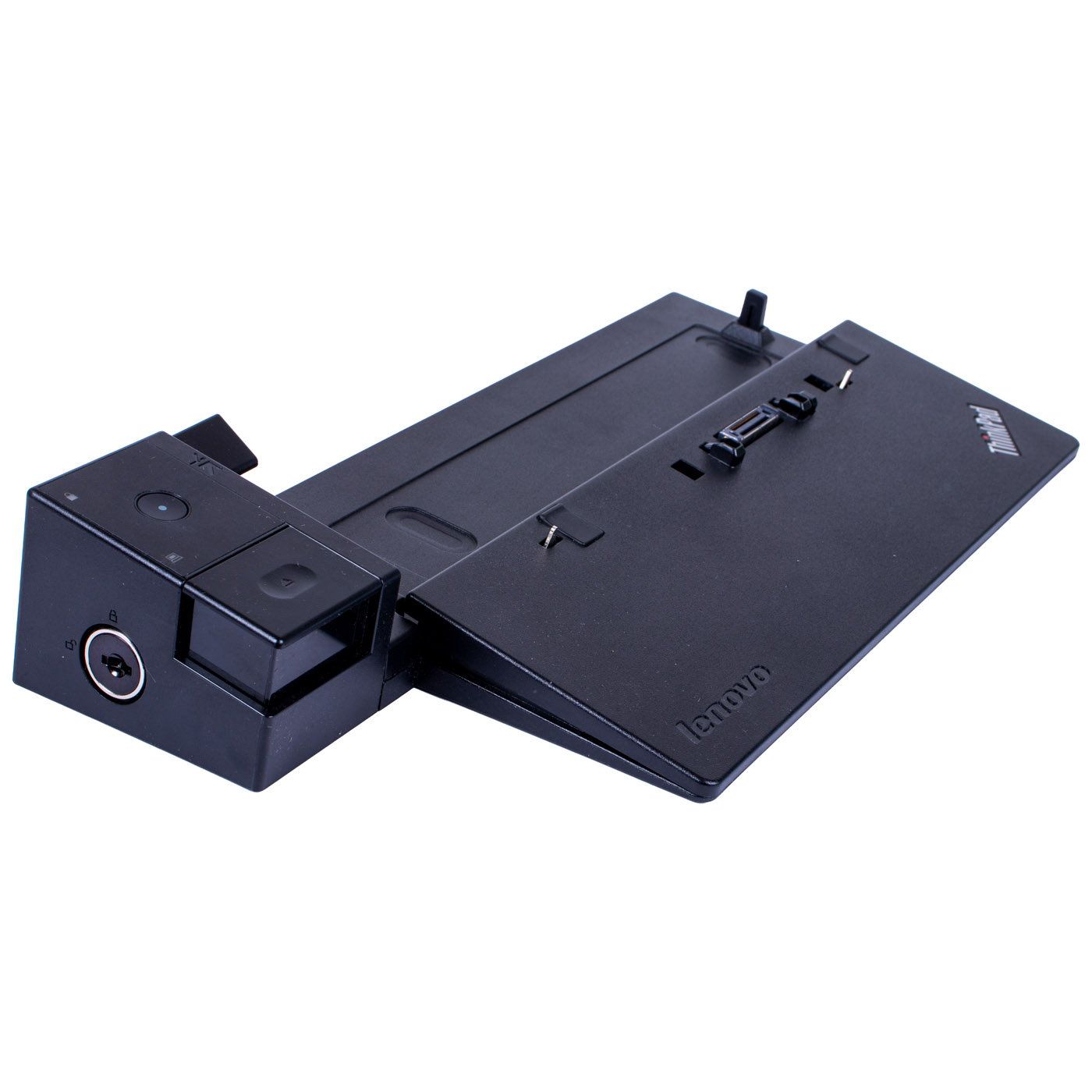

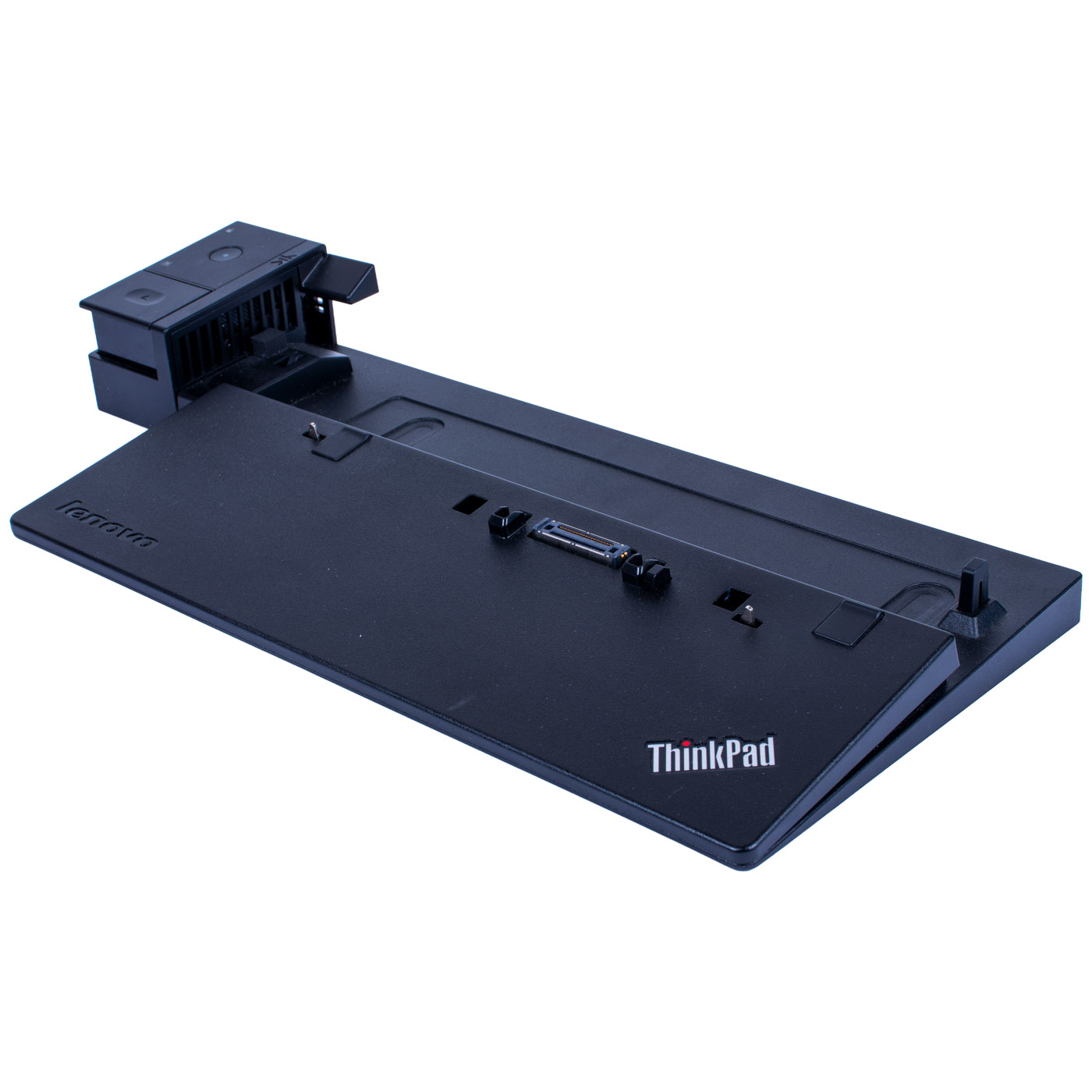

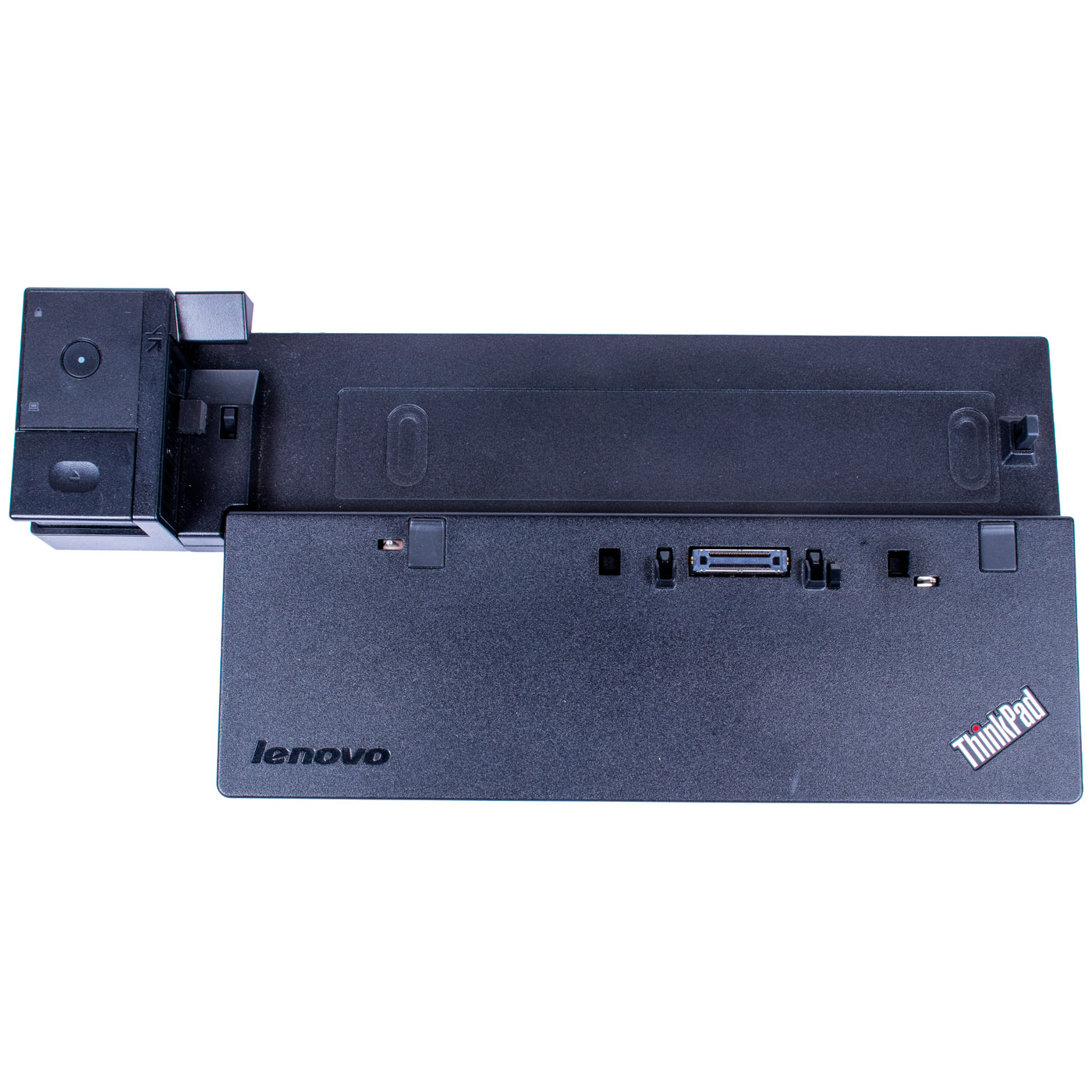

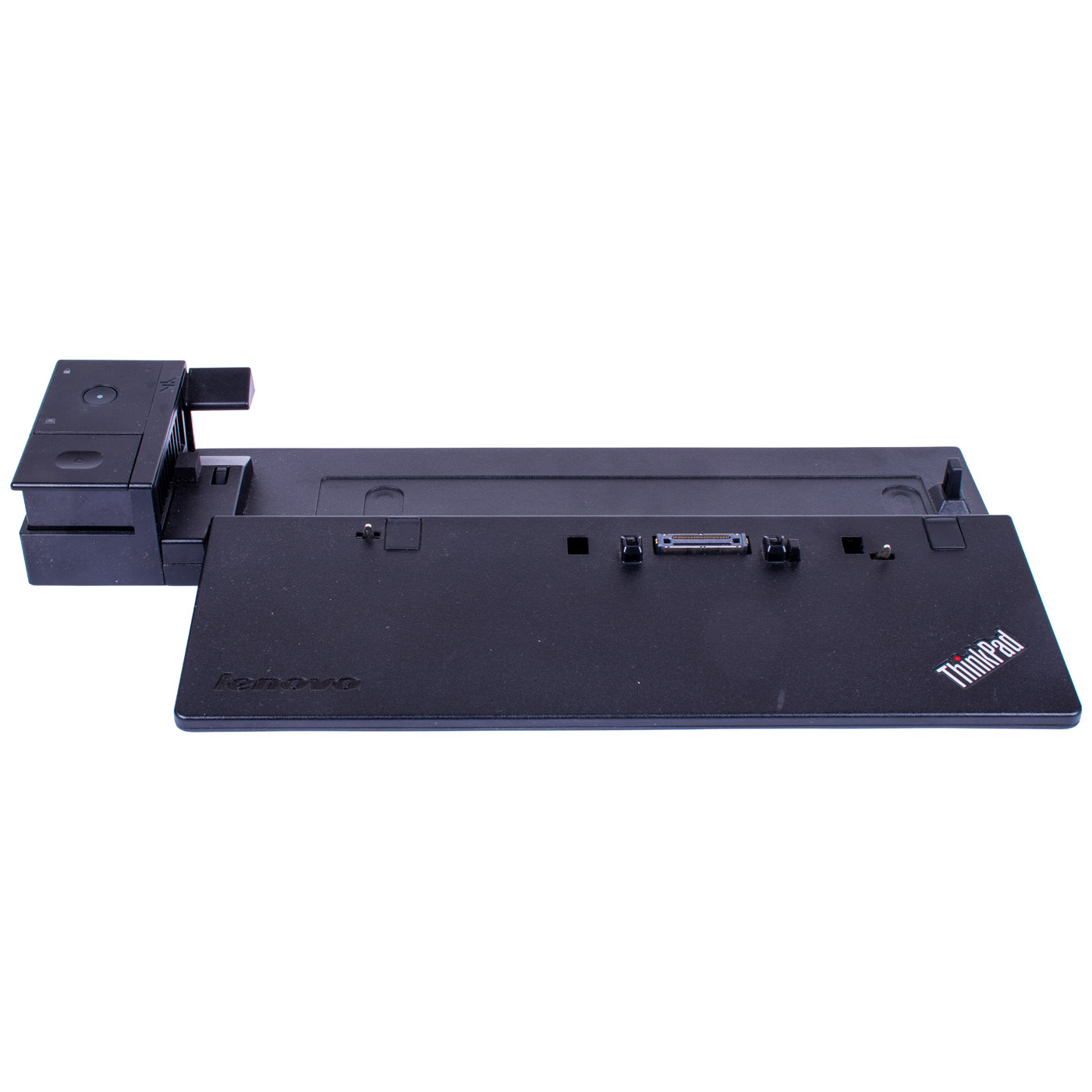

The Lenovo ThinkPad Ultra Dock 40A2 is a robust mechanical docking station that turns your ThinkPad into a full desktop setup. With a single motion you dock the laptop and gain instant access to wired network, USB peripherals, and multiple monitors—without reconnecting cables every time.

This unit is used, in very good technical and cosmetic condition. No key for the mechanical lock is included. Power adapter is not included—the dock uses a Lenovo 20V adapter (same standard as Lenovo laptops).

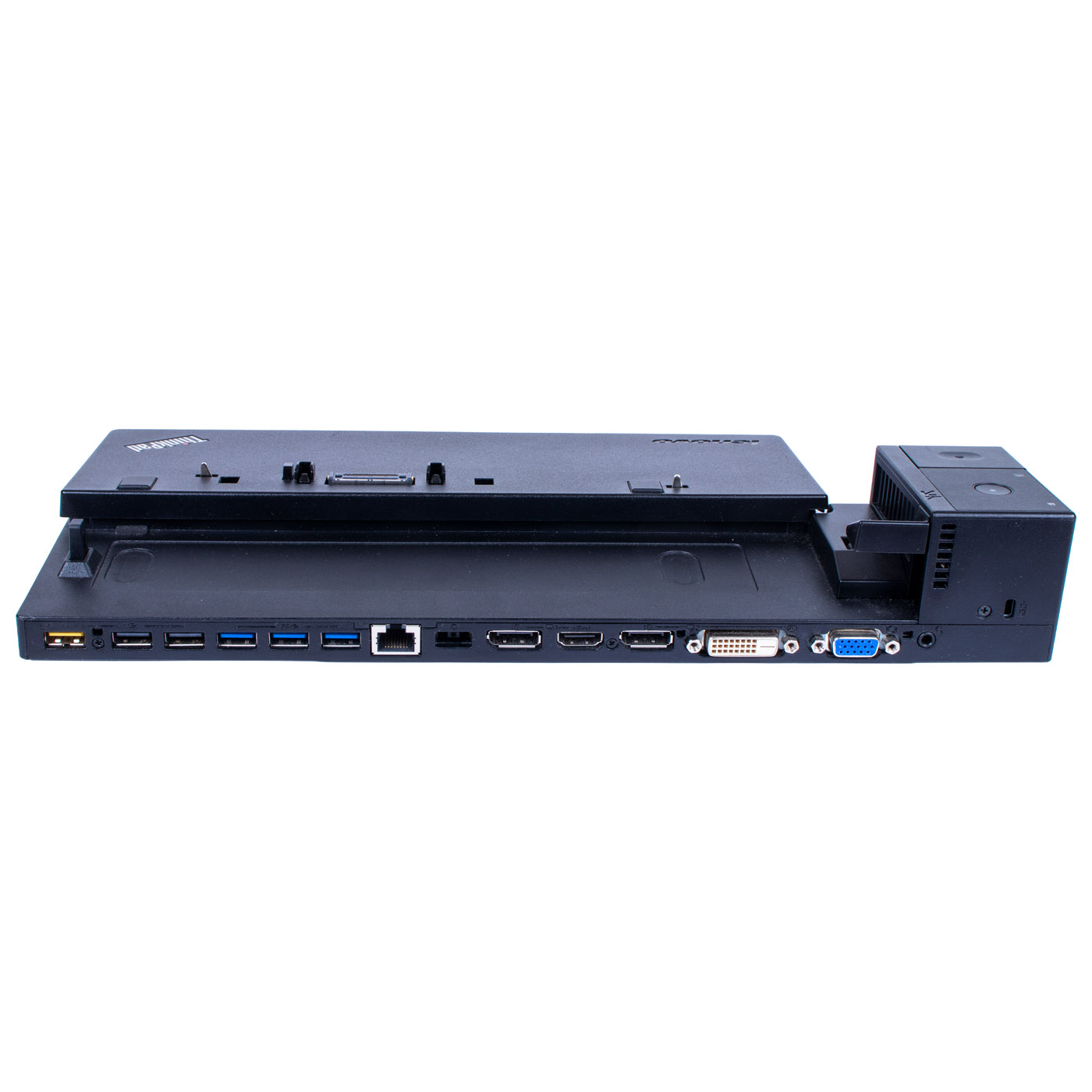

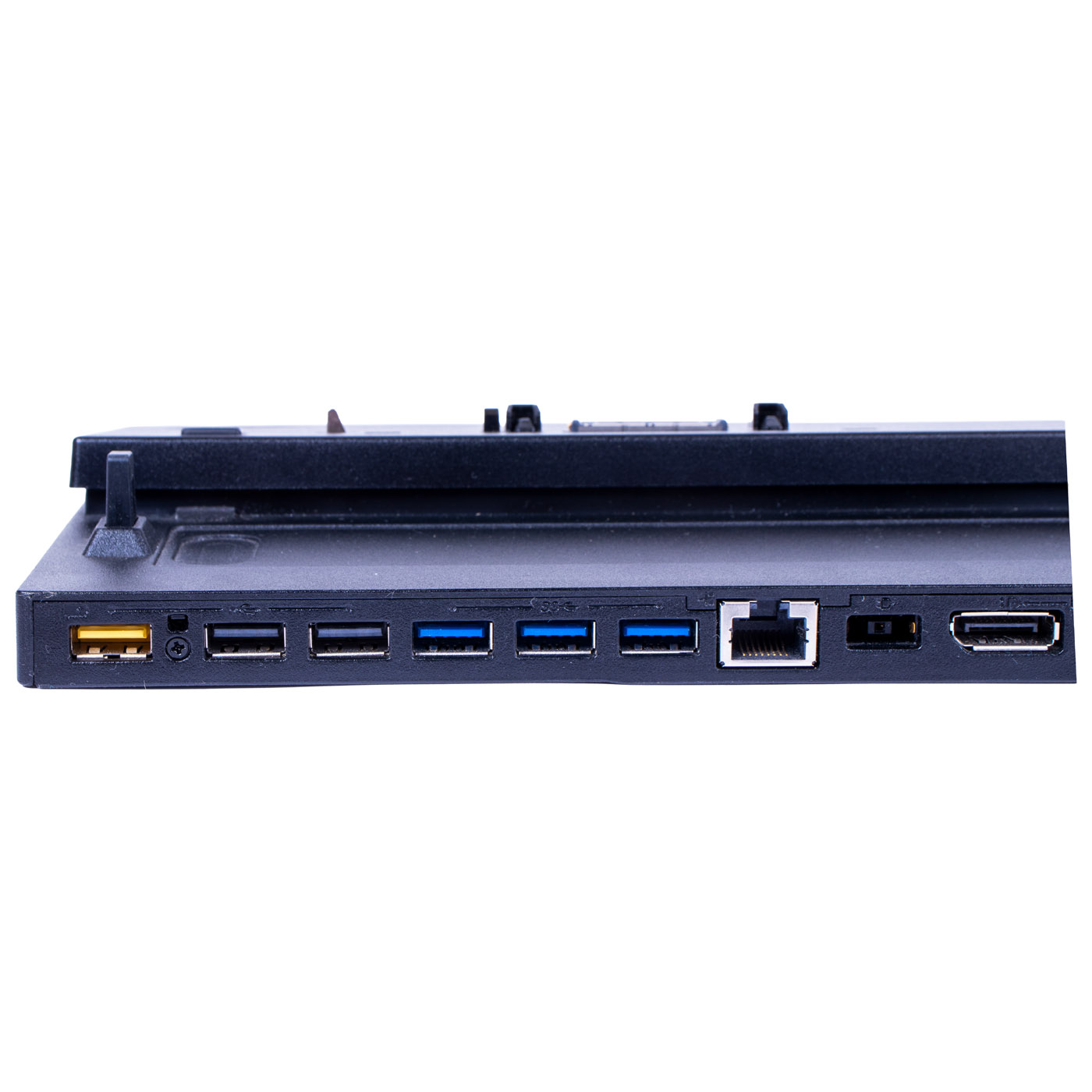

🔌 PORTS AND CONNECTIVITY (rear)

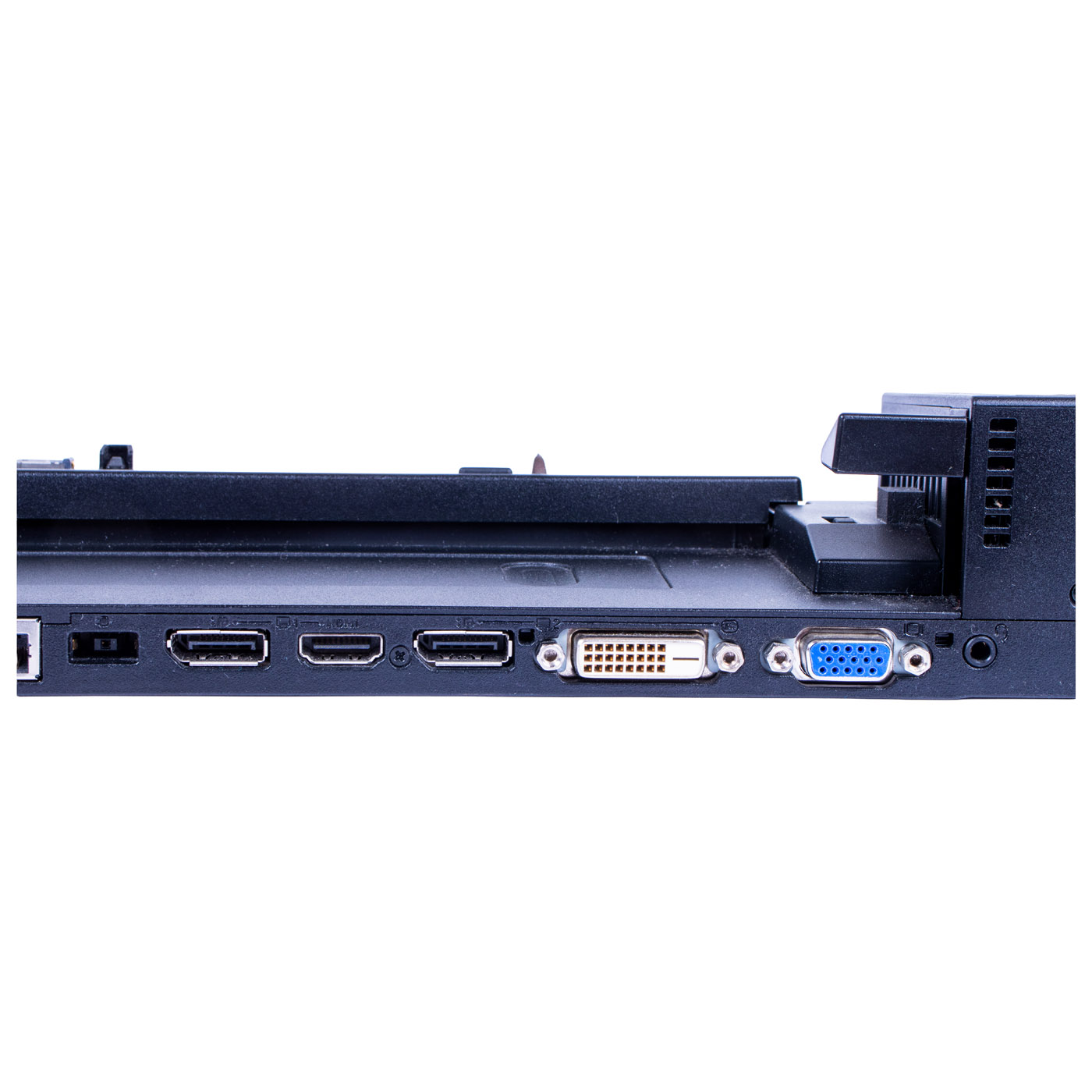

• 🖥️ Video (5 total): 2× DisplayPort, 1× HDMI, 1× DVI-D, 1× VGA
• ⚡ USB (6 total):
  • 1× USB 2.0 Always On (yellow) – charges devices even when the laptop is in sleep
  • 2× USB 2.0 (black)
  • 3× USB 3.0 (blue)
• 🌐 Network: 1× RJ‑45 Gigabit Ethernet (10/100/1000)
• 🔒 Security: Kensington lock slot
• ⚡ Power: DC 20V input

Port layout and count confirmed with photos: 01855.jpg, 01856.jpg, 01857.jpg.

📐 SPECIFICATIONS

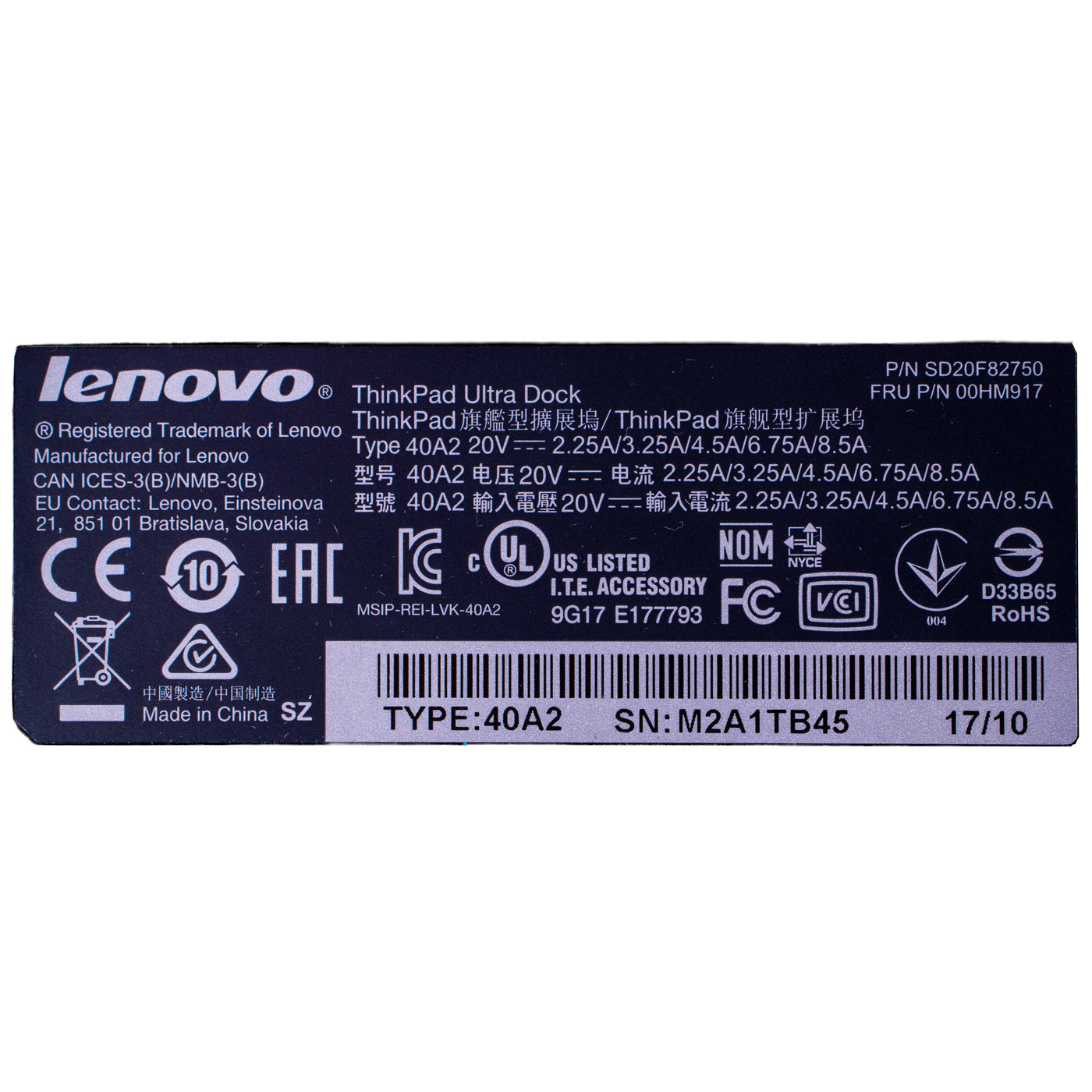

• Model: ThinkPad Ultra Dock 40A2
• FRU: 00HM917
• Host connection: Mechanical docking connector (Lenovo proprietary; not OneLink/USB)
• Color: Midnight Black
• Audio: handled through the docked laptop (no front audio ports on this version)
• Drivers: provided by Windows (install automatically)
• Operating temperature: 5–40°C; humidity: 5–95% RH
• Power: 20V (depending on configuration, 65–170W; use the adapter recommended for your ThinkPad)

✅ COMPATIBILITY

Compatible only with Lenovo ThinkPad laptops equipped with the mechanical docking connector on the underside (ThinkPad T/X/L/W/P generations circa 2013–2017). Confirmed series/models:

• 🔸 T Series: T440, T440p, T440s, T450, T450s, T460, T460p, T460s, T470, T470p, T470s
• 🔸 X Series: X240, X250, X260, X270
• 🔸 L Series: L440, L450, L460, L470
• 🔸 W Series: W540, W541, W550s
• 🔸 P Series (Workstation): P50, P51, P70, P71

Important: some configuration variants may differ in the presence of the mechanical connector. Please verify that your ThinkPad has the bottom mechanical docking port before purchase.

🎯 ADVANTAGES OF MECHANICAL DOCKING (vs. USB dock)

• Reliable, repeatable connection—no loose cables
• Multi‑monitor support via diverse interfaces (DP/HDMI/DVI/VGA)
• Full bandwidth to ports without saturating a single USB link
• Durable construction for frequent docking cycles
• Kensington lock support

📦 IN THE BOX

• 1× Lenovo ThinkPad Ultra Dock 40A2 (FRU 00HM917)

Note: Power adapter not included (use your laptop’s 20V adapter). No key for the mechanical lock.

🧪 PRODUCT CONDITION

• Cosmetic: very good (minor normal signs of use)
• Technical: fully functional—ports and features tested
• Completeness: key for the lock mechanism is not included

🔎 SYSTEM REQUIREMENTS

• OS: Windows 7/8/8.1/10/11 (32/64‑bit), selected Linux distributions
• Laptop: Lenovo ThinkPad with a mechanical docking connector
• Power: 20V Lenovo adapter appropriate for your ThinkPad model

⚠️ LIMITATIONS

• Not compatible with laptops lacking the mechanical docking connector and with OneLink/USB‑C/Thunderbolt‑only systems
• Requires a matching 20V power adapter (wattage as recommended for the laptop)
• No key for the mechanical lock
