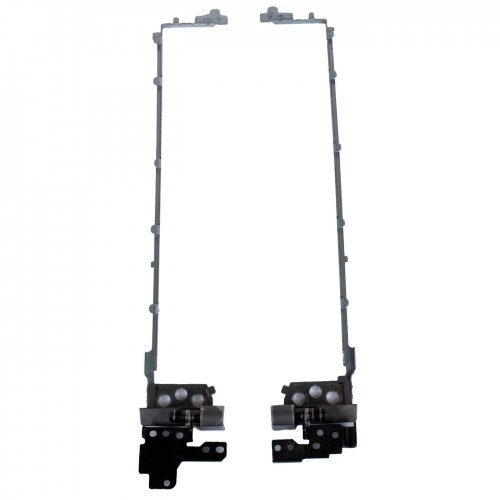

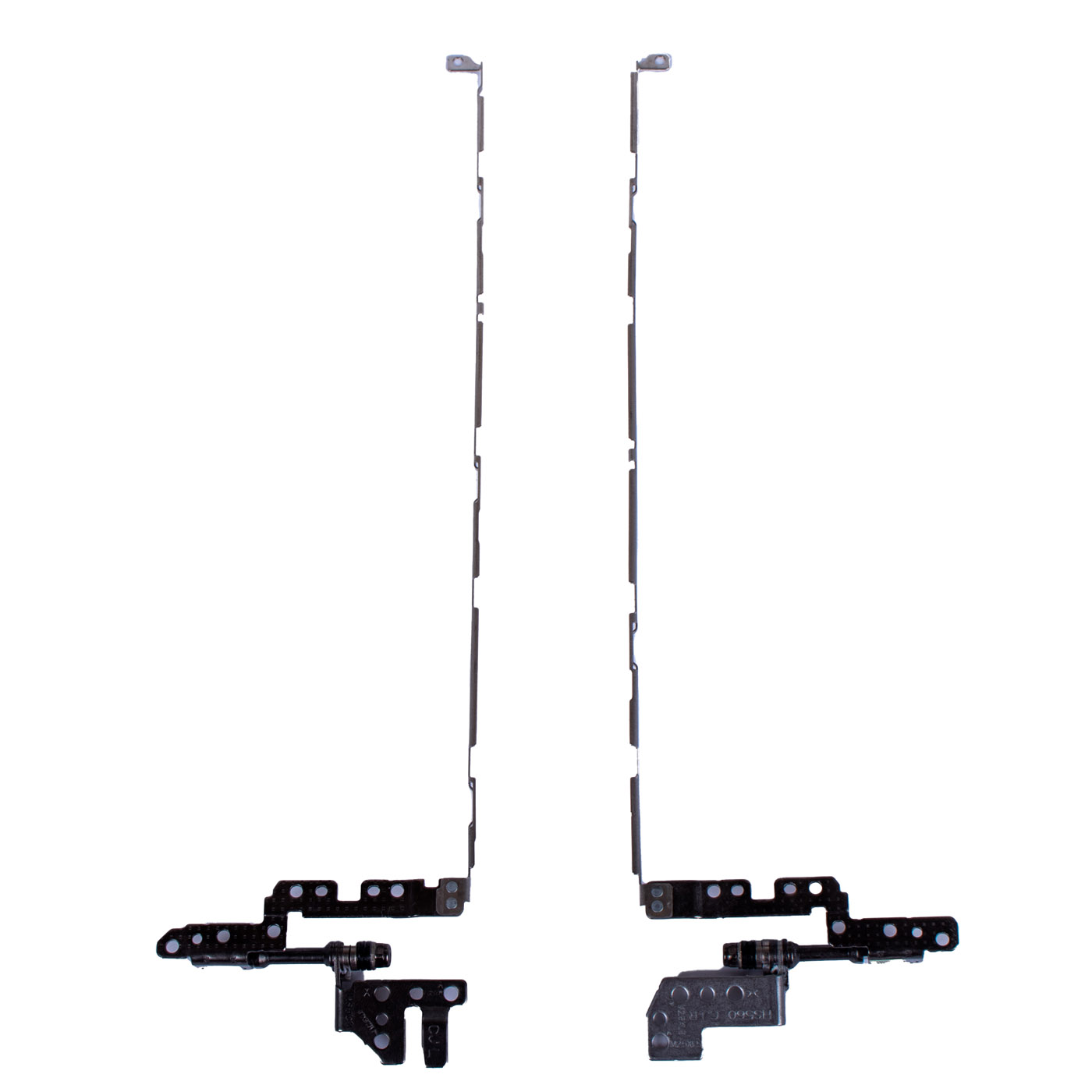

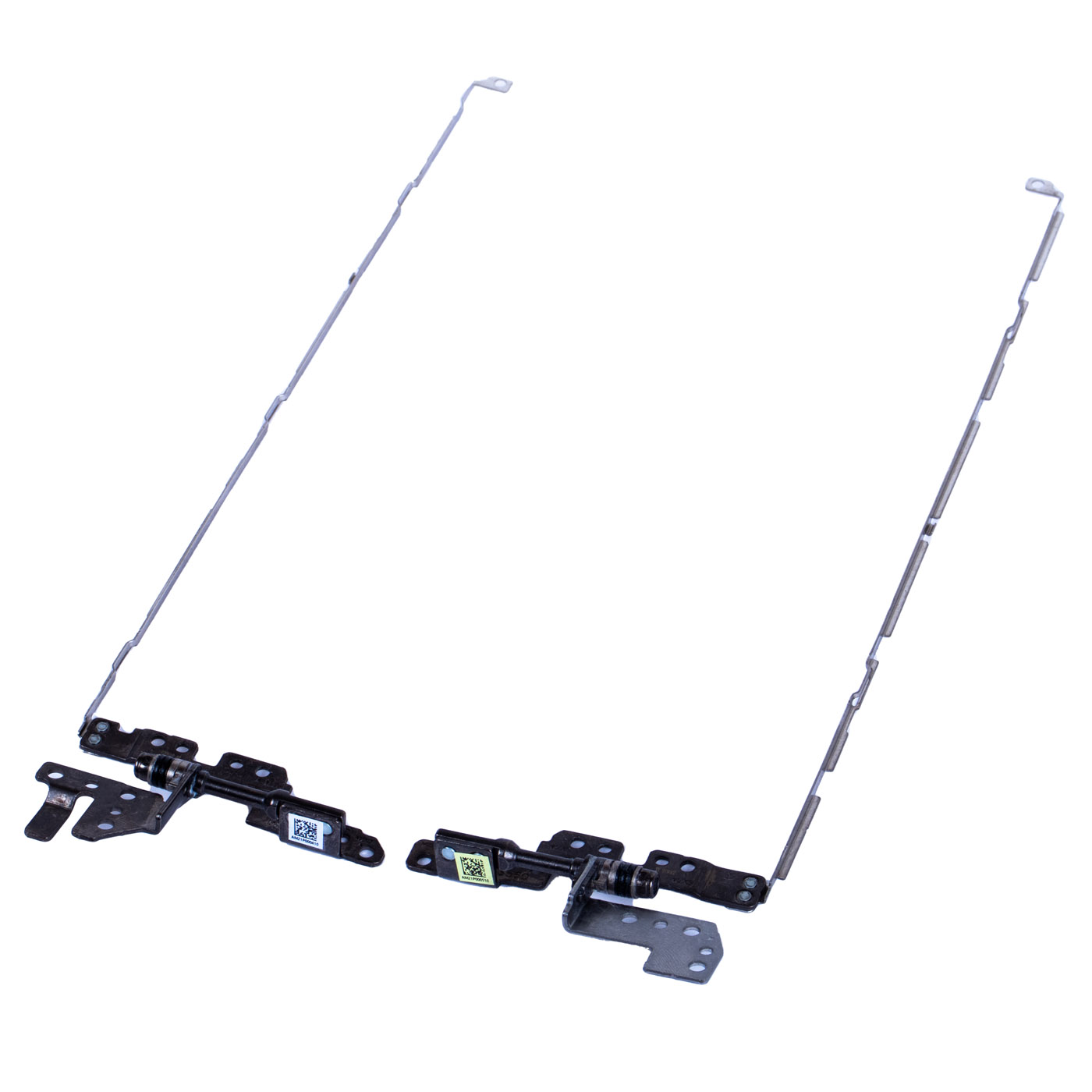

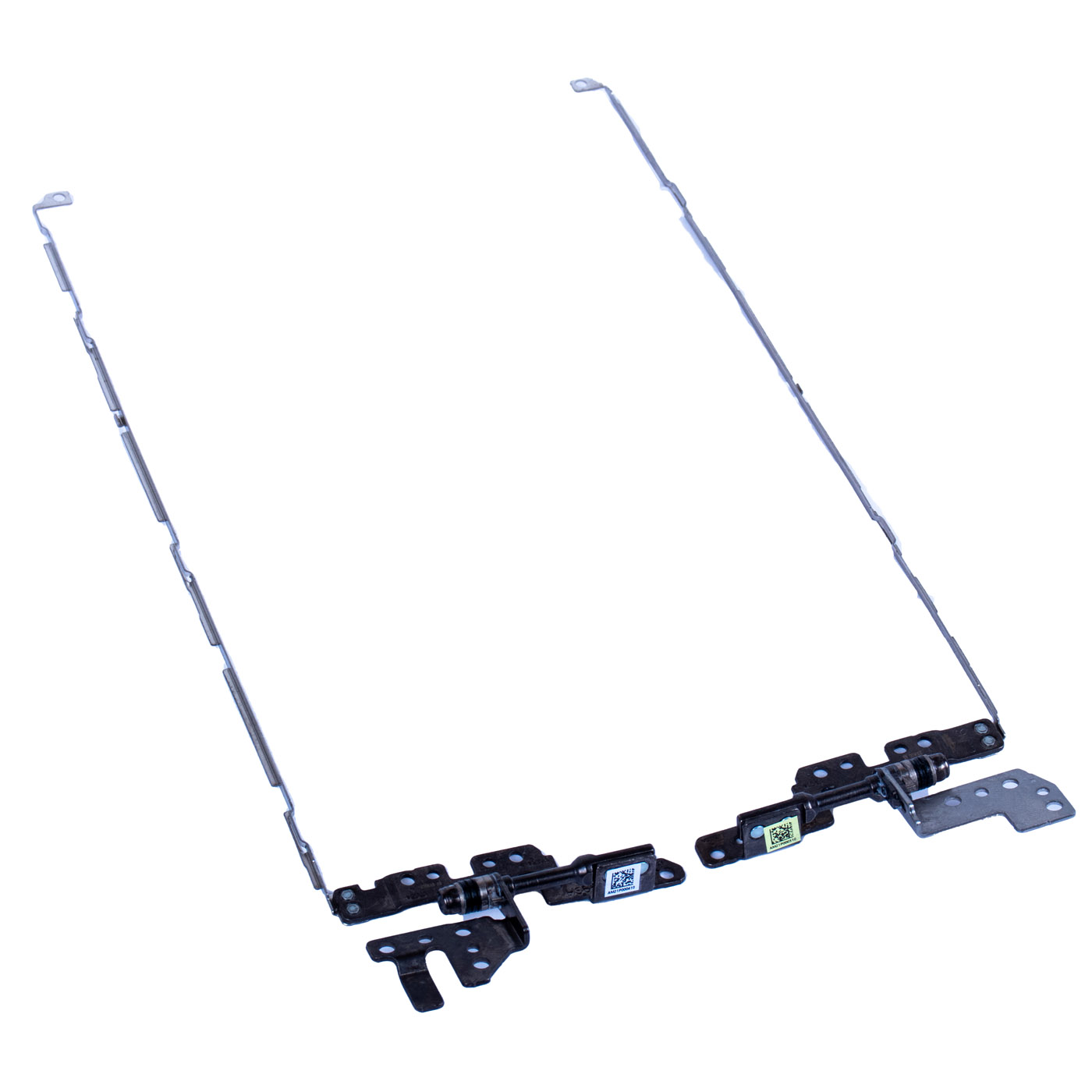

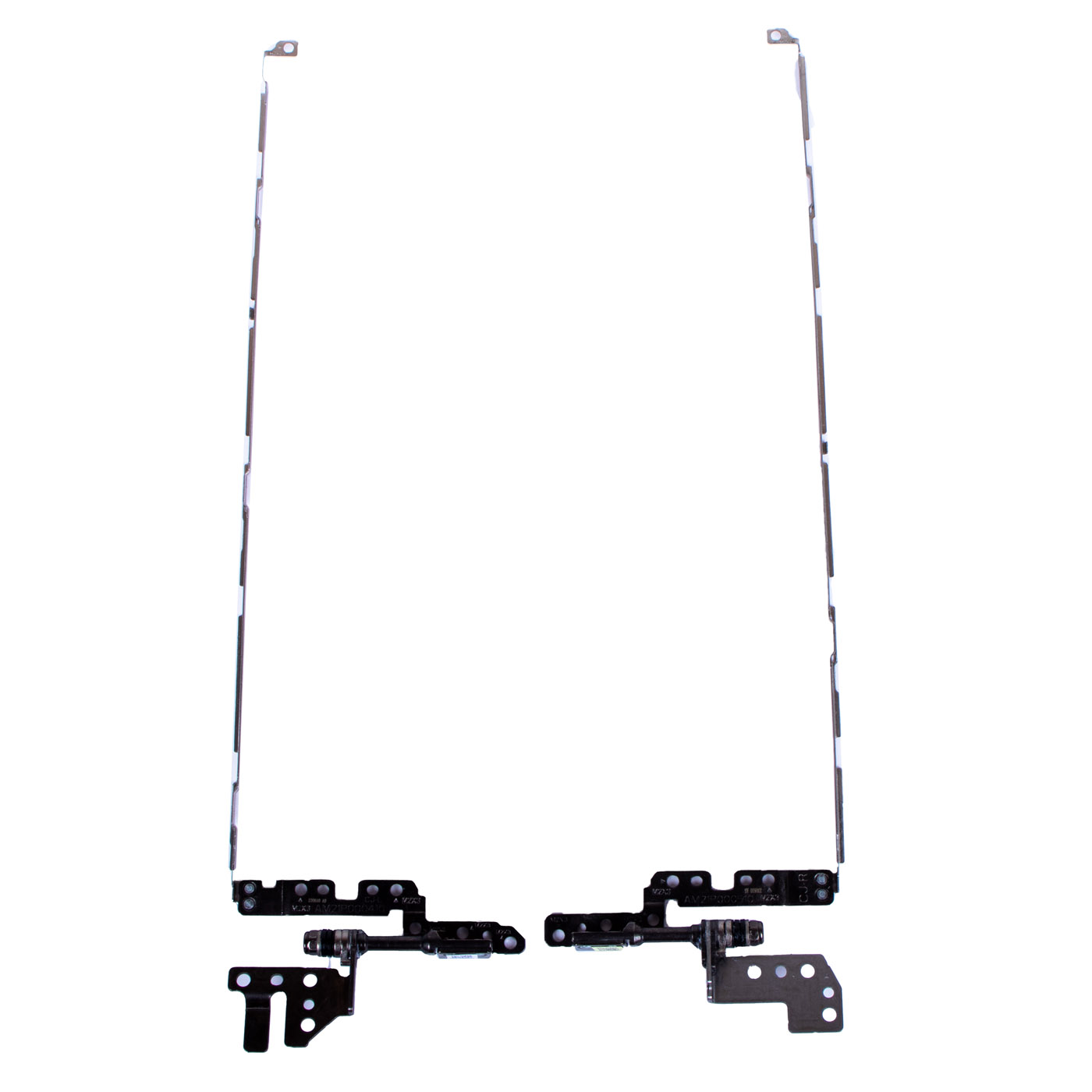

🔧 Matrix hinges pair for Lenovo IdeaPad 3 15 ITL6 ADA6 ALC6 🔧

🖥️ Lenovo IdeaPad 3 15 | Steel hinges | 15" | Left+right pair

⚙️ PRODUCT CHARACTERISTICS

Original pair of LCD matrix hinges for Lenovo IdeaPad laptops from the 3 15 series is a key structural element ensuring stable screen mounting. Dedicated to models ITL6, ADA6, and ALC6 with a 15-inch matrix, the hinges are made of high-quality steel, guaranteeing durability and long-lasting use. Precisely fitted to specific models, they ensure smooth opening and closing of the screen without unnecessary play or unwanted noises.

📋 TECHNICAL DATA

Part name: LCD matrix hinges
Type: Pair (left and right side)
Brand: Lenovo
Series: IdeaPad
Model: 3 15 ITL6, ADA6, ALC6
Matrix size: 15"
Material: Steel
Condition: New
Warranty: 12 months
FRU number: 5H50S29002

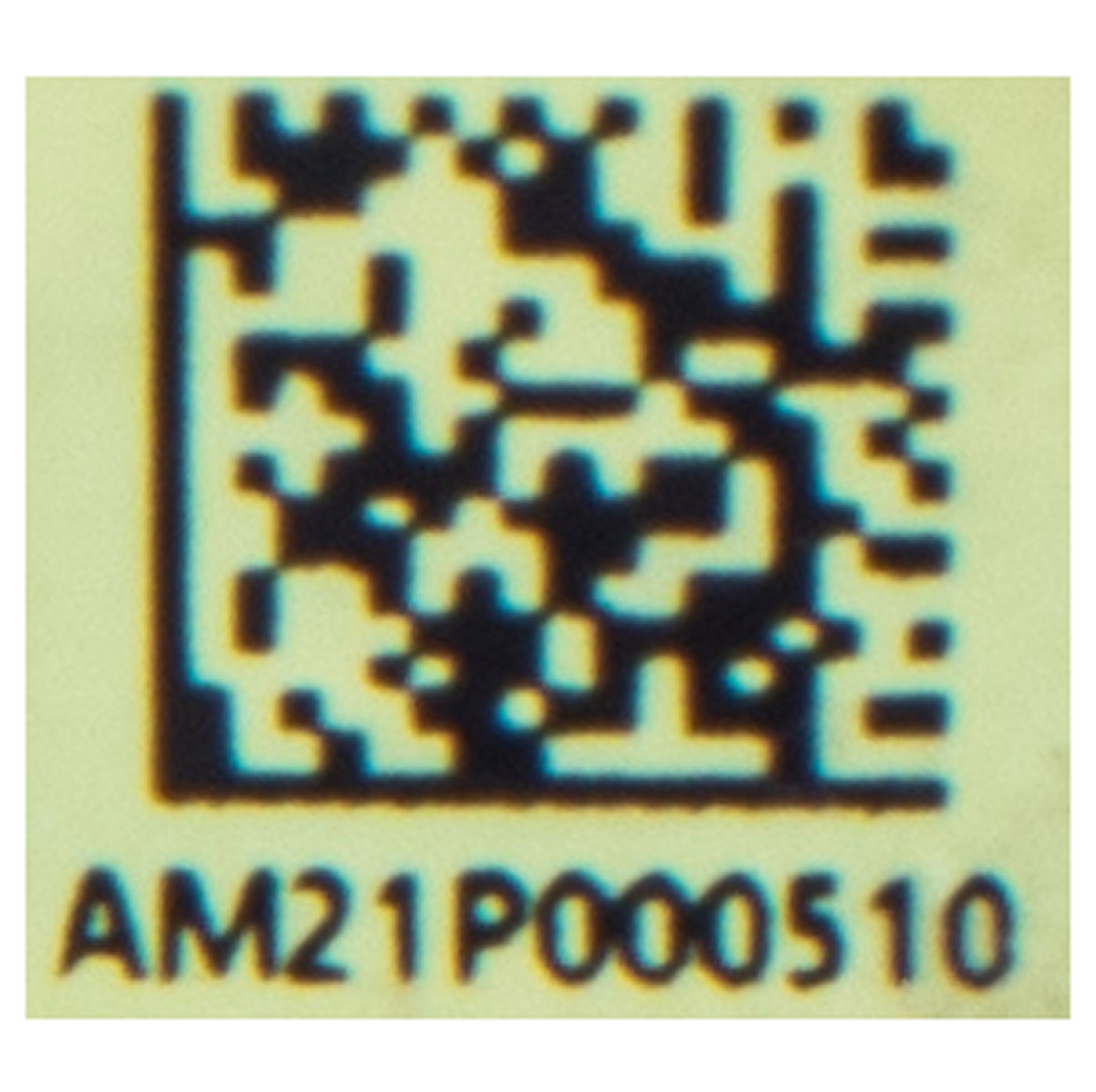

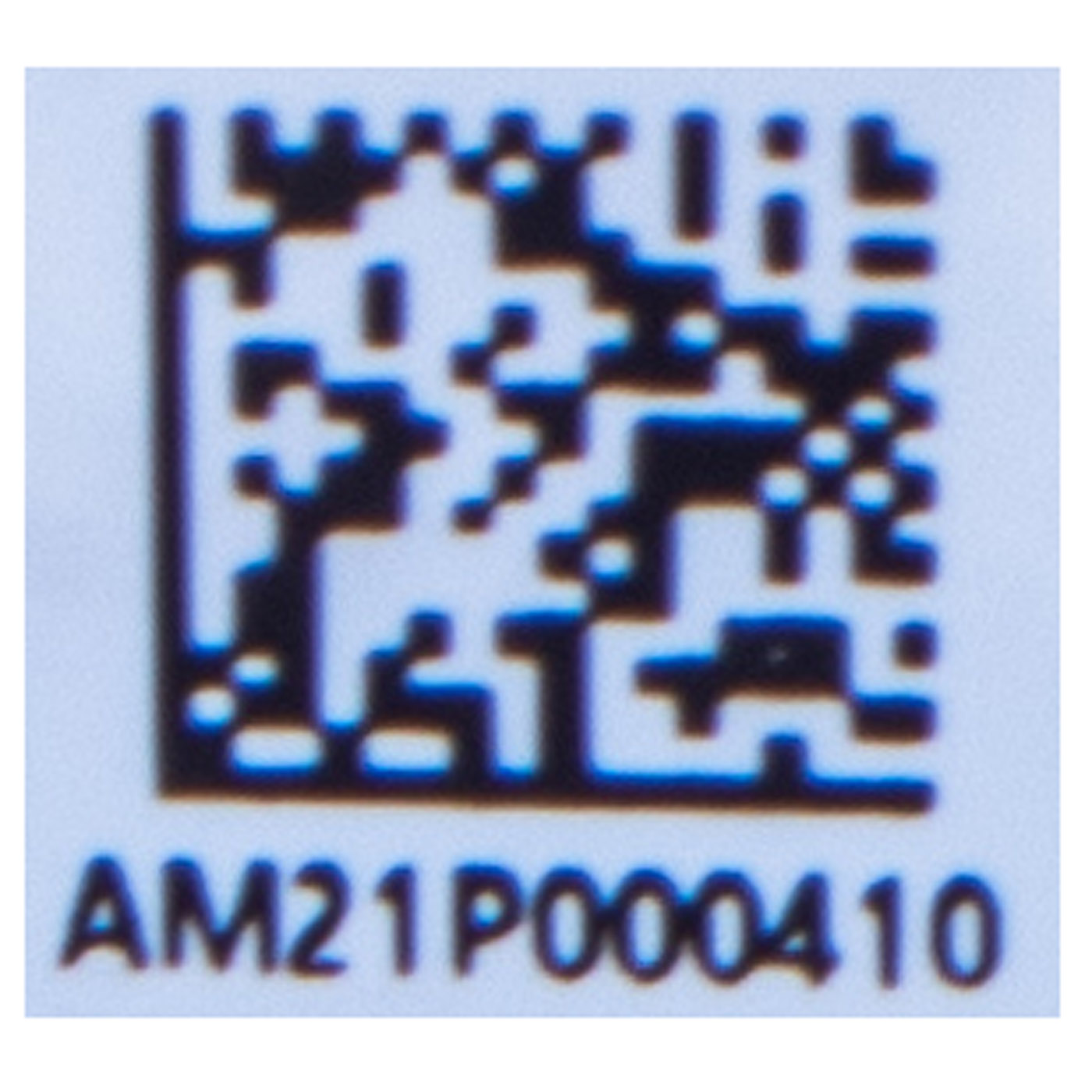

Replacement numbers: AM21P000510, AM21P000410

🌟 KEY ADVANTAGES

🔹 Original Lenovo parts – guarantee of perfect fit and compatibility with the laptop
🔹 Made of steel – ensures high durability and resistance to mechanical damage
🔹 Complete set – a pair containing both left and right hinges
🔹 Precision operation – smooth opening and closing of the screen without play and unwanted noises
🔹 Easy installation – design intended for simple replacement of damaged components
🔹 Long lifespan – top-quality materials ensuring long-lasting use

🔢 CATALOG NUMBERS

FRU: 5H50S29002
Replacement numbers: AM21P000510, AM21P000410
Compatible models: Lenovo IdeaPad 3 15 ITL6, IdeaPad 3 15 ADA6, IdeaPad 3 15 ALC6

❓ WHEN SHOULD YOU REPLACE THE MATRIX HINGES?

• The laptop screen falls down by itself or does not hold the set position
• Unpleasant sounds (cracking, creaking) are heard when opening or closing the screen
• Visible cracks or mechanical damage to the hinges
• The screen moves unstably, has play, or tilts sideways
• The hinges offer excessive resistance when opening or closing the laptop
• Deformations of the casing are noticeable around the hinge mounting area
• The matrix does not stay in the fully open or closed position

🔧 INSTALLATION PROCESS

1. Turn off the computer and disconnect the power supply and all peripherals
2. Carefully pry off the matrix casing (bezel) from the edge
3. Unscrew the screws securing the damaged hinges to the matrix casing
4. Disconnect the wires and ribbons passing through the hinge area (if present)
5. Unscrew the screws securing the hinges to the laptop's lower casing
6. Remove the damaged hinges and replace them with new ones, maintaining the correct orientation (left/right)
7. Screw the new hinges to the matrix casing and the laptop base
8. Reconnect all wires and ribbons
9. Install the matrix bezel and check the functionality

🎯 PURPOSE

Original LCD matrix hinges are dedicated to Lenovo IdeaPad 3 15 laptops with models ITL6, ADA6, and ALC6. They are the perfect solution for users who need to replace damaged or worn hinges in their laptop. Precisely designed components ensure stable matrix mounting and smooth operation when opening and closing the screen. Thanks to high-quality steel construction, the hinges guarantee long-lasting and trouble-free operation even with intensive laptop use.

✅ COMPATIBILITY WARRANTY

The offered matrix hinges are fully compatible with Lenovo IdeaPad 3 15 laptops in ITL6, ADA6, and ALC6 versions. Each component has been precisely matched to the technical specifications of these models, ensuring hassle-free installation and proper functioning. The hinges have identical mounting points and dimensions as the original parts, so their installation does not require any modifications to the laptop. If you have any doubts about compatibility with your model, contact our technical department, which will help verify compatibility.
