🔧 Lenovo ThinkPad USB 3.0 Basic Dock 🔧

🖥️ ThinkPad USB 3.0 Basic Dock | Multimedia Expansion | DL3700-ESS | Black

⚙️ PRODUCT CHARACTERISTICS

The Lenovo ThinkPad Basic USB 3.0 Dock is a compact docking station that transforms your laptop into a convenient workstation with a single USB 3.0 cable. The device provides quick connections for peripherals, network, and monitor, eliminating the need to constantly plug and unplug cables. Ideal for both office and home use - it saves time, organizes your workspace, and significantly boosts productivity.

📋 TECHNICAL DATA

Model: ThinkPad Basic USB 3.0 Dock (DL3700-ESS)

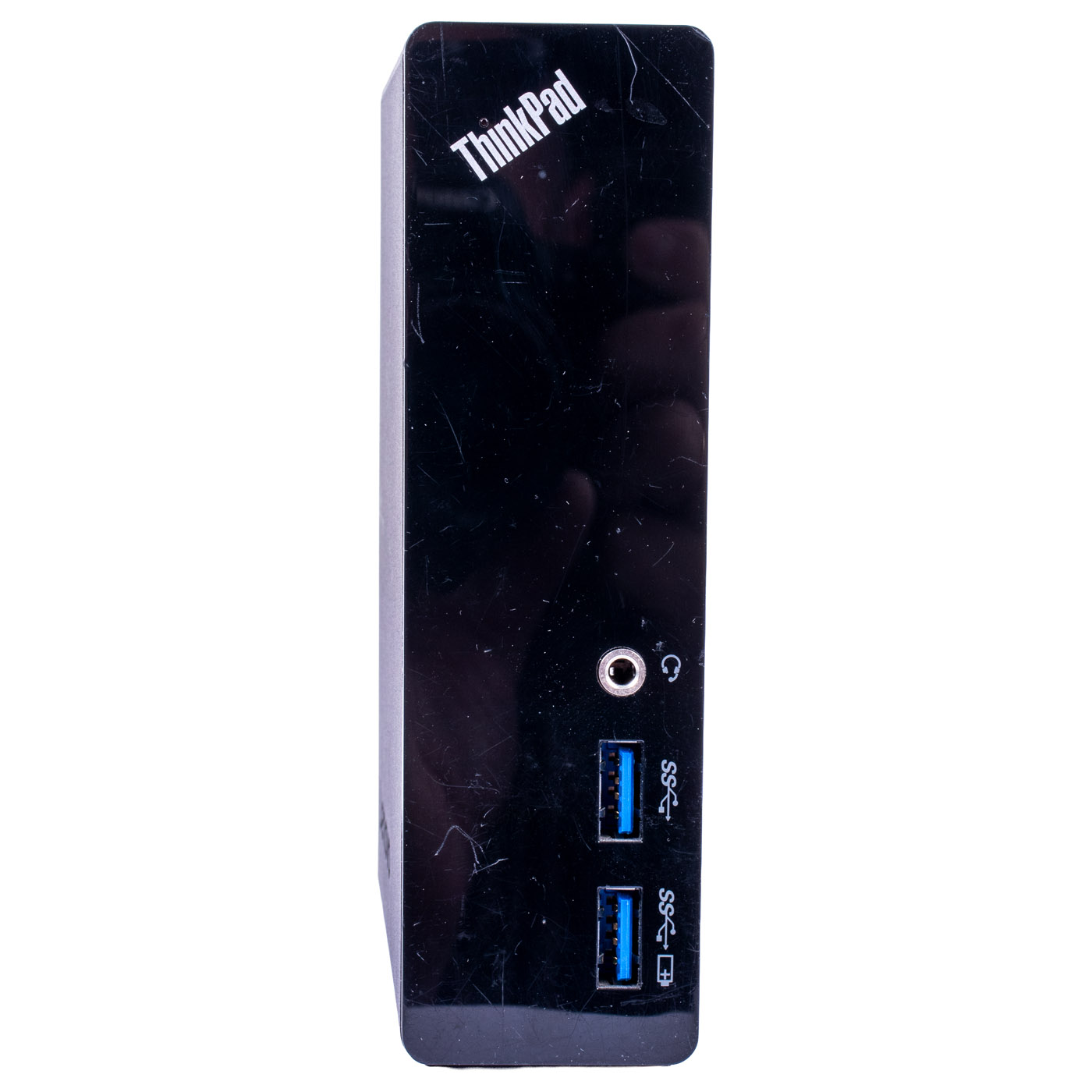

Front Ports: 2× USB 3.0 (1× Always-On for charging devices), 1× combo audio

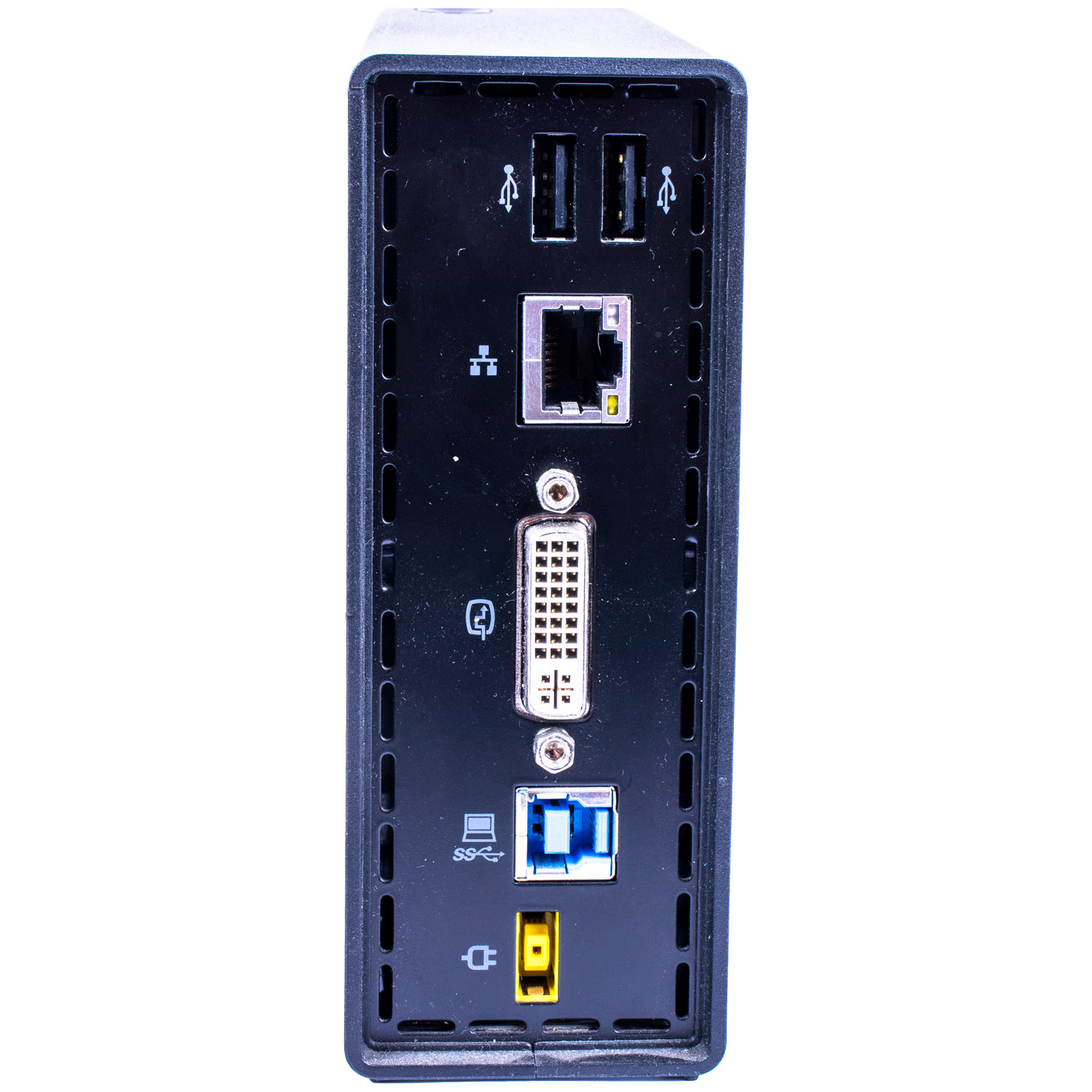

Rear Ports: 2× USB 2.0, 1× DVI-D, 1× RJ-45 Gigabit Ethernet
Video Resolution: up to 2048×1152@60 Hz (DVI), up to 1920×1080@60 Hz (VGA)
Dimensions: approx. 135 × 48 × 91 mm
Weight: approx. 309 g
Drivers: Windows 7/8/8.1/10

🌟 KEY ADVANTAGES

🔹 One connection for everything - connect monitor, network, USB devices, and audio with one cable
🔹 Universal compatibility - works with many ThinkPad models equipped with USB 3.0 port
🔹 Always-On Port - charges mobile devices even when the laptop is off
🔹 Stable HD video - supports monitor via DVI with included DVI-VGA adapter
🔹 Fast network - Gigabit Ethernet port provides a stable internet connection
🔹 Compact dimensions - takes up little space on the desk

🔢 CATALOG NUMBERS

FRU: 03X6285
Equivalent Numbers: 03X6777, SD20H13052
Commercial Model: 4X10A066WW / 4X10A0668x

❓ WHEN TO REPLACE THE DOCKING STATION?

• No image on the monitor – the dock is not transmitting video signal to the external display
• USB port issues – devices are not detected or are unstable
• No network connection – Ethernet port does not provide network access
• Mechanical damage – visible damage to the casing or connectors
• Non-working audio port – no sound or microphone issues

🔧 INSTALLATION PROCESS

Connecting the docking station is extremely simple. Just connect the dock to the laptop using the USB 3.0 cable, and then plug the power supply into the dock. Connect the monitor to the DVI port (or via VGA adapter), peripherals to the USB ports, and the network cable to the Ethernet port. Install DisplayLink/Lenovo drivers to ensure all dock functions work correctly.

🎯 PURPOSE

The docking station is ideal for creating a quick workstation with a single cable, expanding ports on ultrabooks, and providing a stable network connection. It is suitable for both office and home work environments. Particularly recommended for users of ThinkPad laptops from the T, L, X, W series and selected Yoga/Edge/E-series models equipped with USB 3.0 port.

✅ COMPATIBILITY WARRANTY

The offered part has been thoroughly checked and matched to ThinkPad models equipped with USB 3.0 port.We guarantee full compatibility with T440-T470, L430-L470, X240-X260, W540, P50s series with FRU number 03X6285.The exact appearance and condition of the offered item are shown in the photos in the listing.We provide a 3-month warranty for the used docking station with a return option within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the docking station's compatibility with your ThinkPad model? Our specialists are happy to help you choose the right solution. Contact us for professional advice and technical support.
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

For years, we have specialized in providing high-quality parts and accessories for Lenovo laptops. Our knowledge and experience allow us to offer products that meet the highest standards of quality and reliability. Trust the experts who understand your equipment's needs.

🎯 Choose professionals – invest in high quality!

By choosing our products, you opt for proven solutions and professional service. The Lenovo ThinkPad USB 3.0 Basic Dock is an investment in comfort and work efficiency that will translate into increased productivity and comfort of use for your laptop for a long time. Choose quality and reliability for the long life of your laptop!
