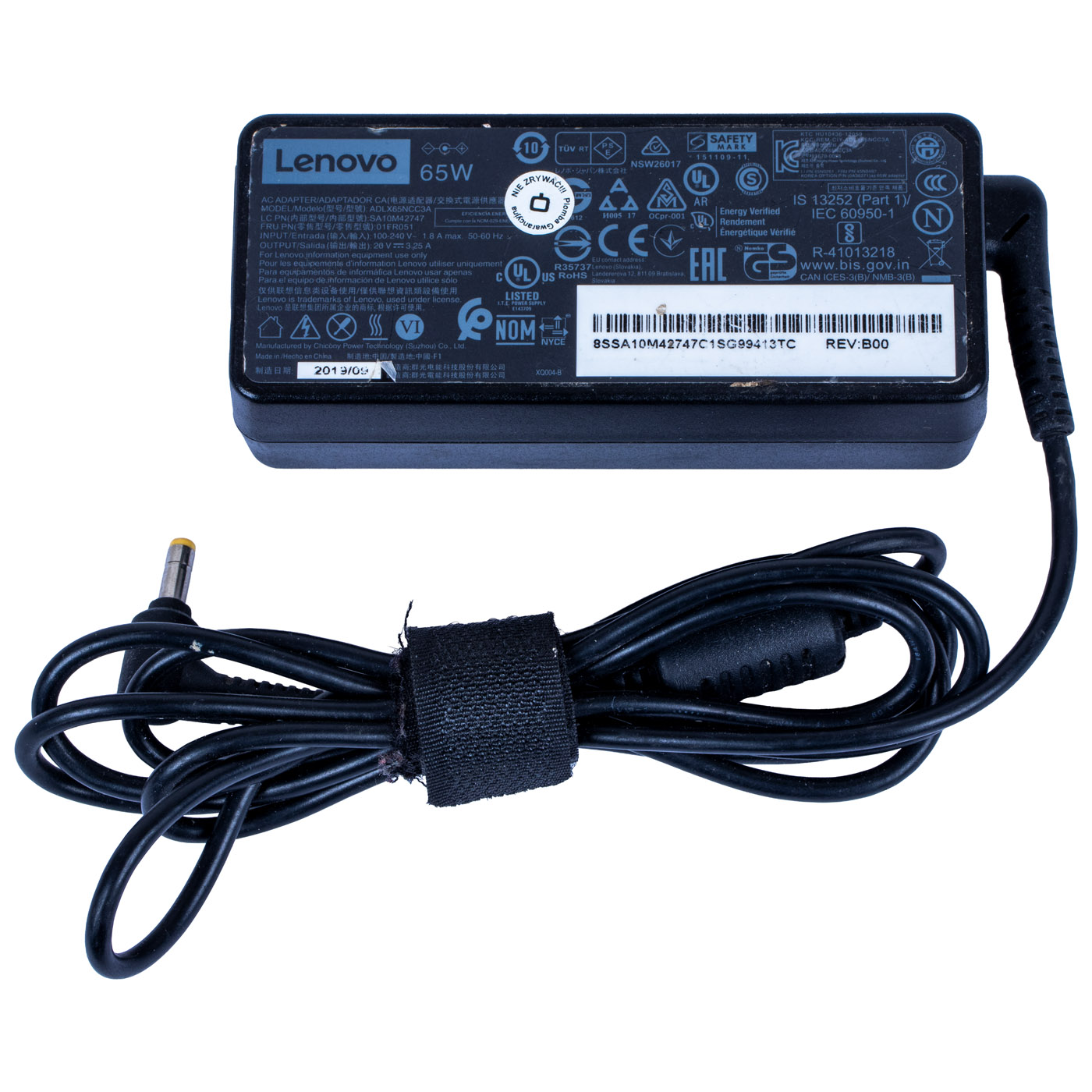

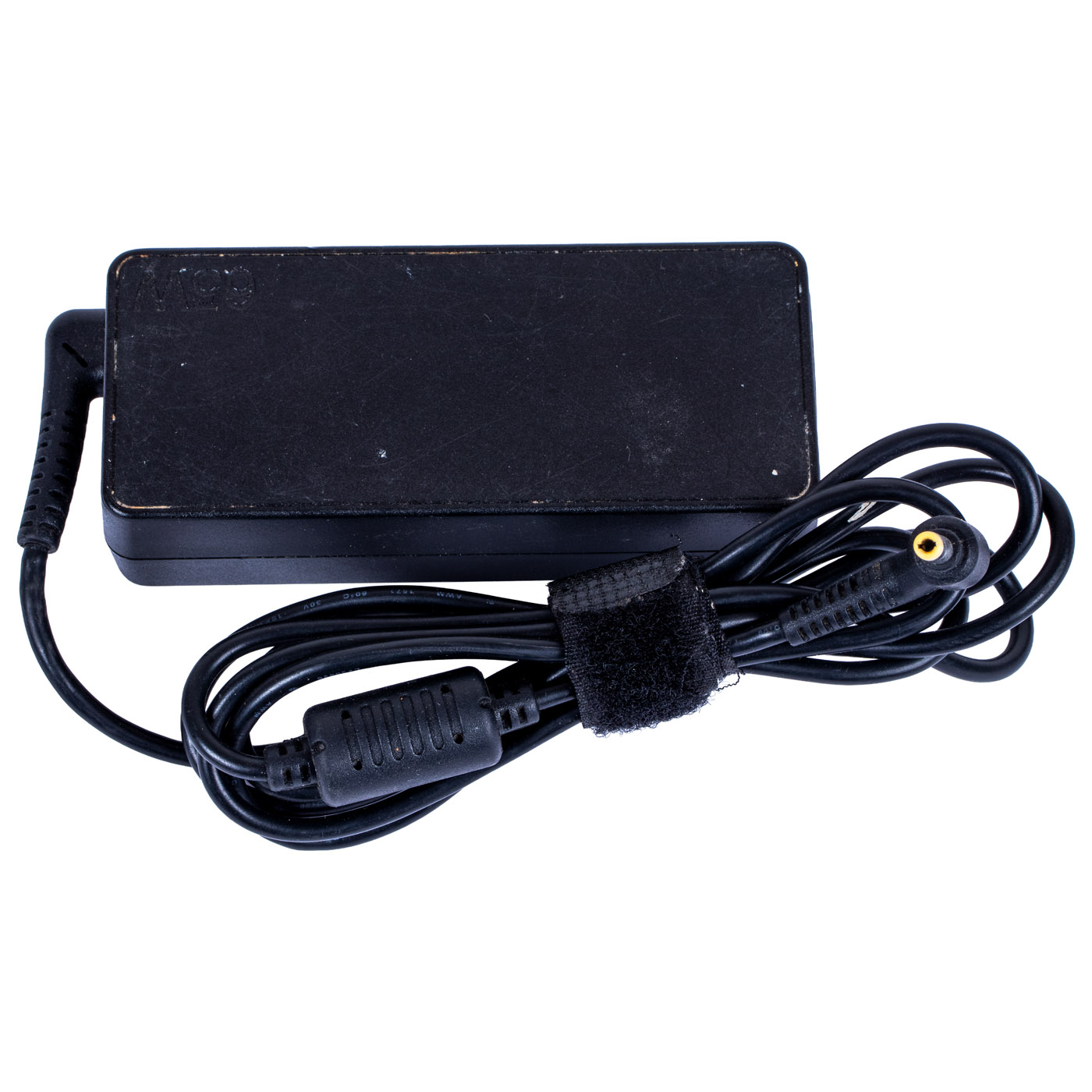

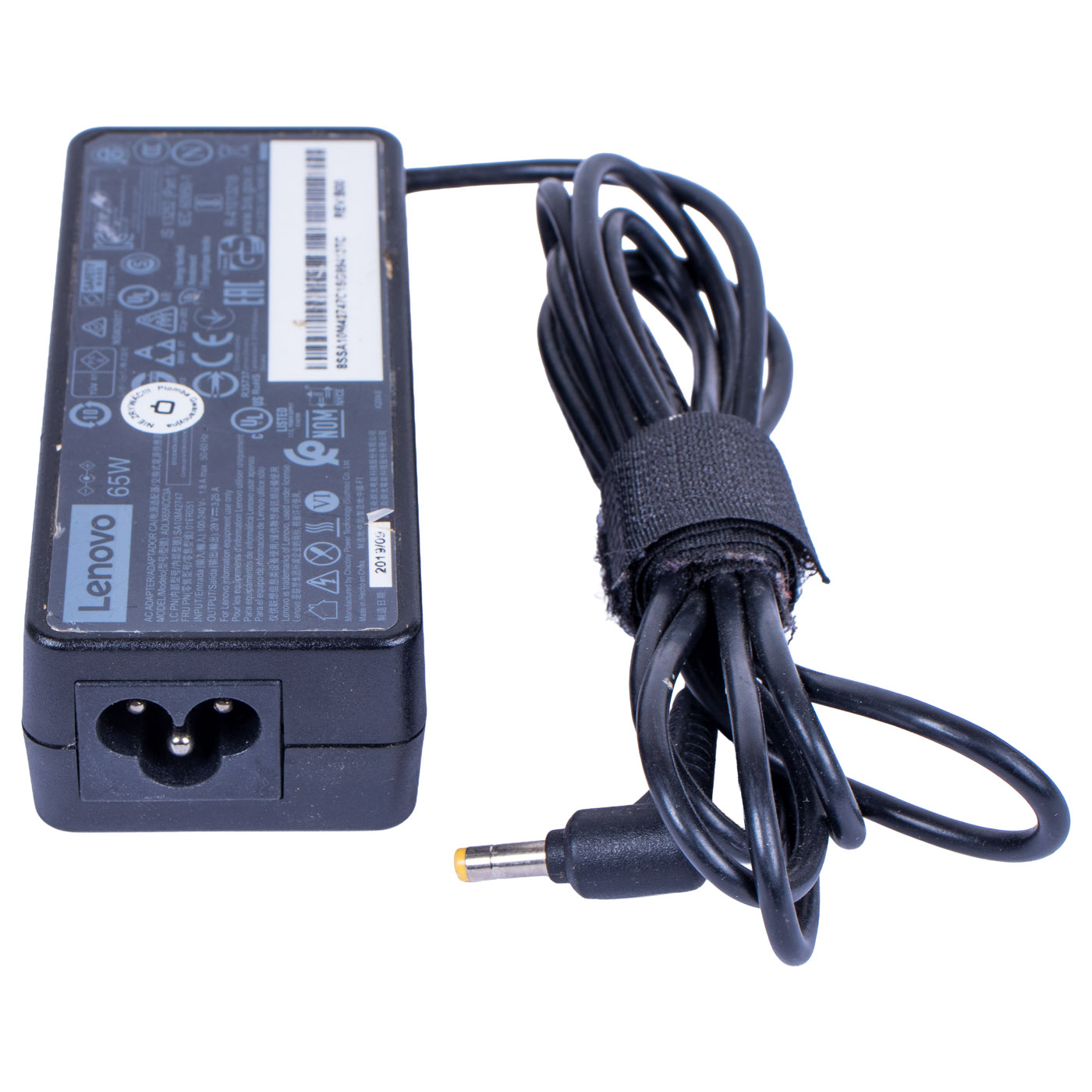

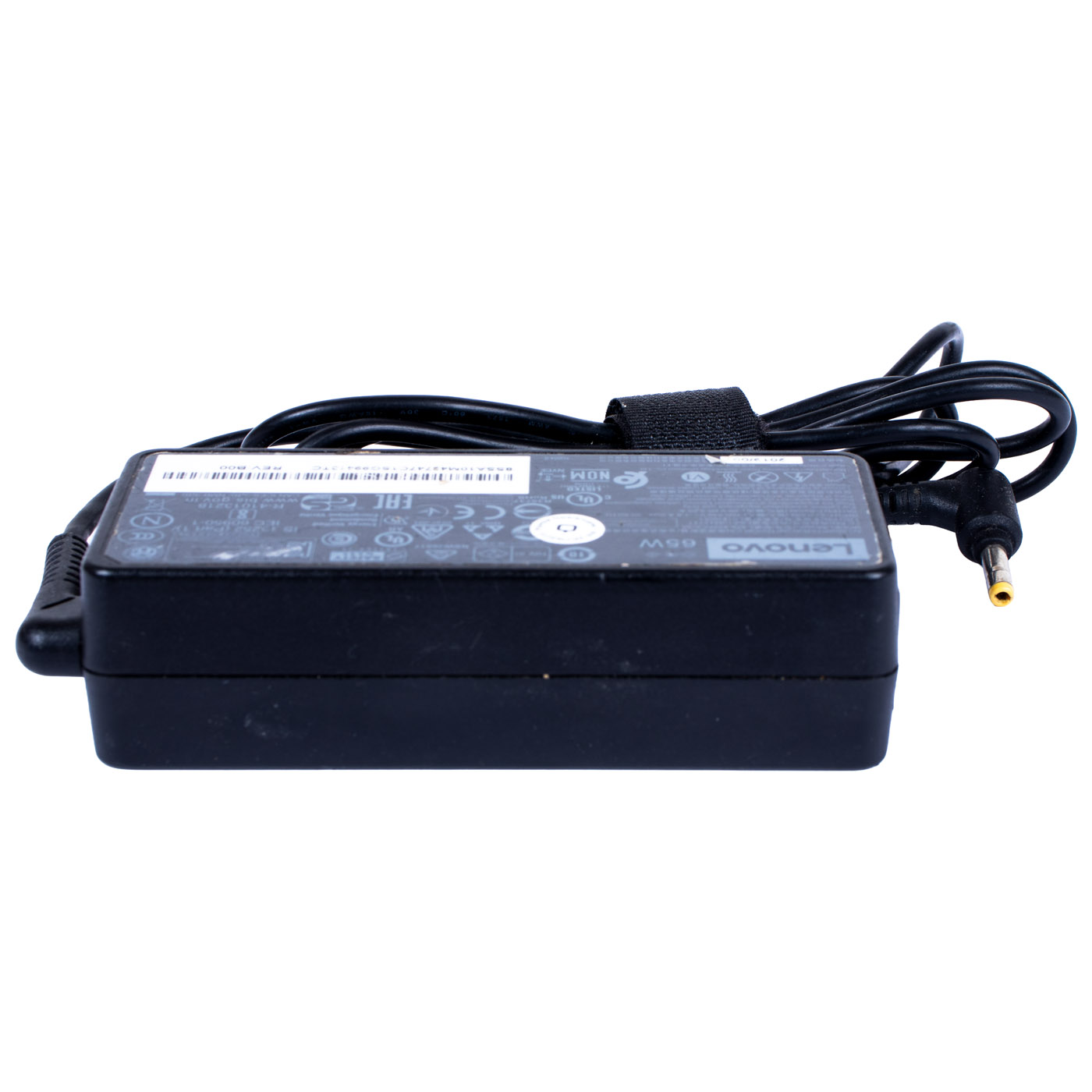

🔧 65W AC Power Adapter for Lenovo IdeaPad Laptops 🔧

🖥️ Original 65W Power Adapter | Slim Round Yellow Tip | 20V | Lenovo IdeaPad

⚙️ PRODUCT FEATURES

Original Lenovo 65W AC power adapter, a reliable power source for your IdeaPad laptop. Equipped with a Slim Round Yellow Tip connector, it provides a stable 20V output, ensuring optimal device performance and efficient battery charging. The adapter is used, but in very good technical condition and has been thoroughly tested for full operational functionality. Compatible with a wide range of IdeaPad models, including Flex 514, Flex 5-15, S340, S540, and many others listed further in this offer description.

📋 TECHNICAL DATA

Product name: Original Lenovo AC power adapter
Brand: Lenovo IdeaPad
Connector type: Slim Round Yellow Tip | thin round plug
Condition: Used
Functionality: 100% functional
Warranty: 6 months

⚡ ELECTRICAL PARAMETERS

Output voltage: 20V DC ±5%
Output current: 3.25A
Output power: 65W (20V × 3.25A = 65W)
Input voltage: 100-240V AC (universal)
Input frequency: 50-60Hz
Energy efficiency: Level VI (compliant with the latest efficiency standards)
Power factor: >0.9 at full load

🔌 DC CONNECTOR SPECIFICATION

Connector type: round, 90° angled
Outer diameter: 4.0 mm
Inner diameter: 1.7 mm
Plug length: 11.0 mm
Center pin: none
Contact material: gold-plated copper
DC cable length: approximately 1.55 m

📐 DIMENSIONS AND WEIGHT

Housing dimensions: 107 × 45 × 29 mm (L × W × H)
Weight: approximately 230 g (without mains cable)
Housing color: matte black
Housing material: high-quality ABS+PC plastic (fire-resistant)

💻 SUPPORTED LAPTOPS

Lenovo IdeaPad Flex:
Lenovo IdeaPad Flex 5-1470 (80XA/81C9)
Lenovo IdeaPad Flex 5-1570 (80XB/81CA)
Lenovo IdeaPad Flex 5 14IIL05 (81X1/81YH)
Lenovo IdeaPad Flex 5 15IIL05 (81X3/81YK)
Lenovo IdeaPad Flex 5 14ARE05 (81X2)
Lenovo IdeaPad Flex 5 14ITL05 (82FE/82HS)
Lenovo IdeaPad Flex 5 15ITL05 (82FG/82HT)
Lenovo IdeaPad Flex 5 14ALC05 (82HU)
Lenovo IdeaPad Flex 5 15ALC05 (82HV)
Lenovo IdeaPad Flex 6-11IGM (81A7)
Lenovo IdeaPad Flex 6-14ARR (81HA)

Lenovo IdeaPad S-series:
Lenovo IdeaPad S340-13IML (81UM)
Lenovo IdeaPad S340-14IWL (81N7)
Lenovo IdeaPad S340-14IML (81N9)
Lenovo IdeaPad S340-14API (81NB)
Lenovo IdeaPad S340-15IWL (81N8/81QF)
Lenovo IdeaPad S340-15API (81NC)
Lenovo IdeaPad S340-15IIL (81WW)
Lenovo IdeaPad S340-15API Touch (81QG)
Lenovo IdeaPad S540-14IWL Touch (81QX/81V0)
Lenovo IdeaPad S540-15IWL (81NE/81Q1)
Lenovo IdeaPad S540-15IML (81NG)
Lenovo IdeaPad S740-14IIL (81RS)

Lenovo IdeaPad 1/3 series:
Lenovo IdeaPad 1 14ALC7 (82R3)
Lenovo IdeaPad 1 14IAU7 (82QC)
Lenovo IdeaPad 1 15ALC7 (82R4)
Lenovo IdeaPad 1 15IAU7 (82QD)
Lenovo IdeaPad 3 14IAU7 (82RJ)
Lenovo IdeaPad 3 15IAU7 (82RK)
Lenovo IdeaPad 3 15ABA7 (82RN)
Lenovo IdeaPad 3 17IAU7 (82RL)
Lenovo IdeaPad 3 17ABA7 (82RQ)

Lenovo IdeaPad 100/300/500 series:
Lenovo IdeaPad 100-14IBD (80RK)
Lenovo IdeaPad 100-15IBD (80QQ)
Lenovo IdeaPad 320-15IAP (81A3)
Lenovo IdeaPad 330-11IGM (81A6)
Lenovo IdeaPad 330S-14IKB (81F4/81JM)
Lenovo IdeaPad 330S-15AST (81F9)
Lenovo IdeaPad 330S-15ARR (81FB/81JQ)
Lenovo IdeaPad 520-15IKB (80YL/81BF)
Lenovo IdeaPad 530-14ARR (81H9)
Lenovo IdeaPad 530-14IKB (81FQ)
Lenovo IdeaPad 530S-14IKB (81EU)
Lenovo IdeaPad 530S-15IKB (81EV)
Lenovo IdeaPad 720S-14IKB (80XC/81BD)

Lenovo Yoga series:
Lenovo Yoga 520-14IKB (80X8/81C8)
Lenovo Yoga 530-14IKB (81EK)
Lenovo Yoga 720-12IKB (81B5)
Lenovo Yoga 2 Pro (20266/80AY)
Lenovo Yoga 7 16IAP7

Lenovo V-series:
Lenovo V14 G2-ITL (82KA)
Lenovo V14 G2-ALC (82KC)

Lenovo C-series:
Lenovo IdeaPad C340-14API (81N6)
Lenovo IdeaPad C340-14IML (81TK)
Lenovo IdeaPad C340-14IWL (81N4)
Lenovo IdeaPad C340-15IIL (81XJ)
Lenovo IdeaPad C340-15IML (81TL)
Lenovo IdeaPad C340-15IWL (81N5)

Other models:
Lenovo IdeaCentre 520S-14IKB All-in-one (81BL)

🌟 KEY ADVANTAGES

🔹 Original Lenovo part — guaranteed quality and device safety
🔹 Slim Round Yellow Tip connector — compatible with IdeaPad models
🔹 Compact dimensions — convenient to carry in a laptop bag
🔹 Stable power — reliable energy delivery without voltage spikes
🔹 Wide compatibility — fits many models in the IdeaPad series
🔹 Verified technical condition — used, tested, fully functional

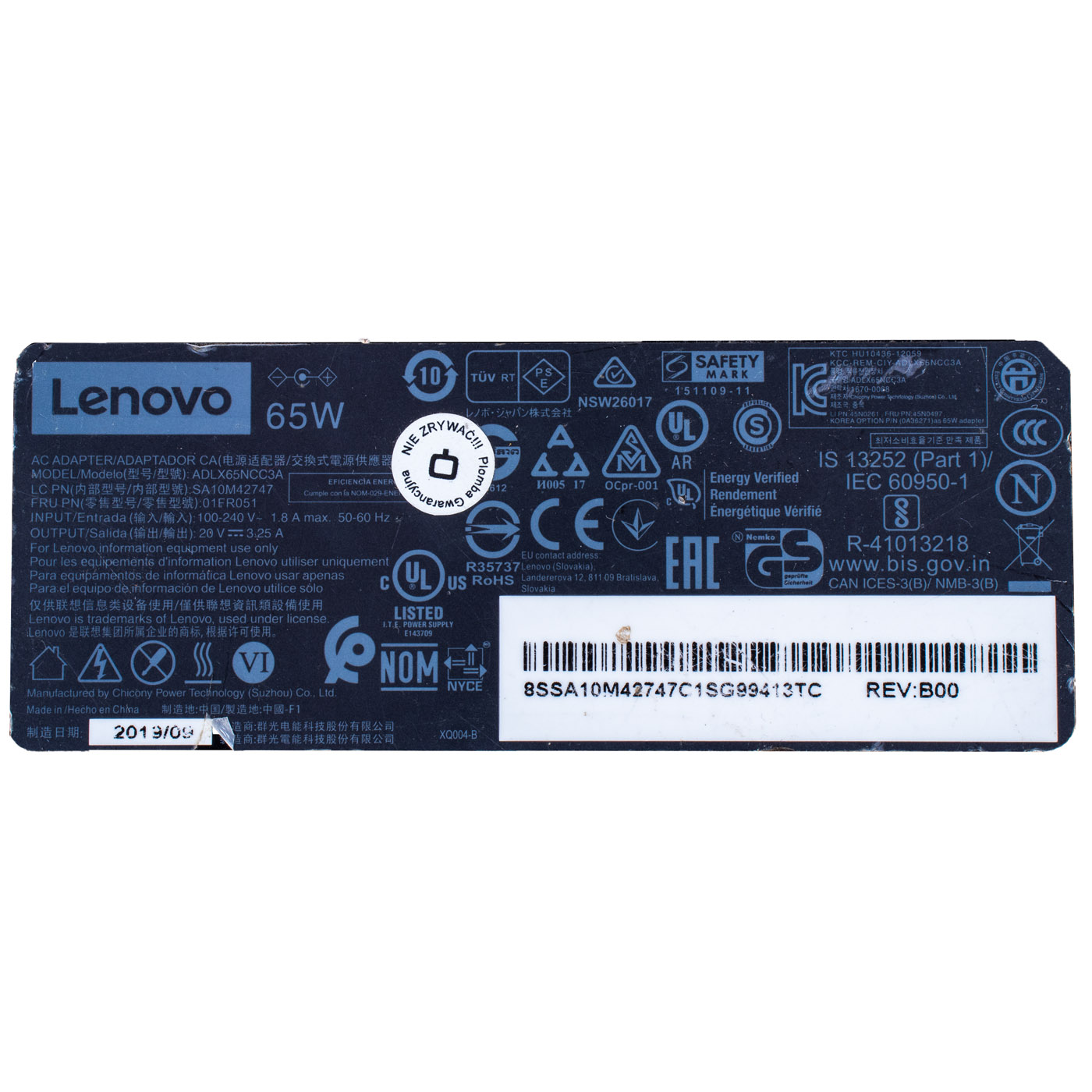

🔢 PART NUMBERS

Main FRU: 01FR051
Replacement FRUs: 01FR040, 5A10J40451, 5A10J40449, 5A10J40450, SA10M42747
Identification: Original Lenovo 65W 20V Slim Round Yellow Tip 4mm power adapter

❓ WHEN SHOULD YOU REPLACE THE POWER ADAPTER?

• When the current adapter has suffered mechanical damage
• When the power cable is frayed or damaged
• When the laptop does not charge properly or charges intermittently
• When the adapter overheats during operation
• When you notice decreased battery performance with the adapter connected
• When you need an additional adapter to work in different locations
• When the adapter emits unusual noises during operation

🔧 CONNECTION PROCESS

1. Plug the adapter into a 220/230V power outlet
2. Connect the THIN PLUG tip to the appropriate port on the laptop
3. Check whether the charging indicator on the laptop lights up
4. Make sure the laptop recognizes the adapter and starts charging
5. For optimal performance, allow the battery to charge fully during the first use

🎯 PURPOSE

The adapter is dedicated to Lenovo IdeaPad laptops equipped with a power port — a thin plug with a 4 mm outer diameter. It provides stable power during intensive work while ensuring safe battery charging. Ideal for everyday office use and as a spare power source during business trips.

✅ COMPLIANCE GUARANTEE

The offered adapter is 100% compatible with the Lenovo IdeaPad laptop models listed above. It has been tested for performance and user safety. As an original Lenovo product, it ensures optimal operating parameters while protecting your laptop’s battery from damage. If you have any doubts regarding compatibility with your model, we encourage you to contact our experts, who will help verify compatibility.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the adapter or are you unsure whether it will fit your laptop? Our specialists are at your disposal! We will be happy to help you choose the right adapter for your IdeaPad model. With many years of industry experience, we can recommend the best solution tailored to your needs.

📱 Phone: +48-601-415357
📧 Email: [email protected]

🦁 ABCDEAL — Your Trusted Lenovo Parts Specialist

At ABCDEAL, we specialize in delivering high-quality parts for Lenovo ThinkPad and IdeaPad laptops. Our many years of experience allow us to offer proven and trustworthy products. Every adapter undergoes a thorough technical inspection before shipping, which guarantees full functionality. We prioritize professionalism and customer satisfaction, which is why we always provide expert advice and technical support.

🎯 Choose professionals — invest in high quality!

An original Lenovo adapter is an investment in the safety and long-term operation of your laptop. By choosing a verified product from ABCDEAL, you gain the confidence that your IdeaPad will be powered safely and efficiently. Remember that the quality of the power adapter has a direct impact on the battery’s lifespan and the entire system. Do not risk using non-original adapters that may cause damage — choose proven quality and enjoy peace of mind and long operating time for your laptop!
