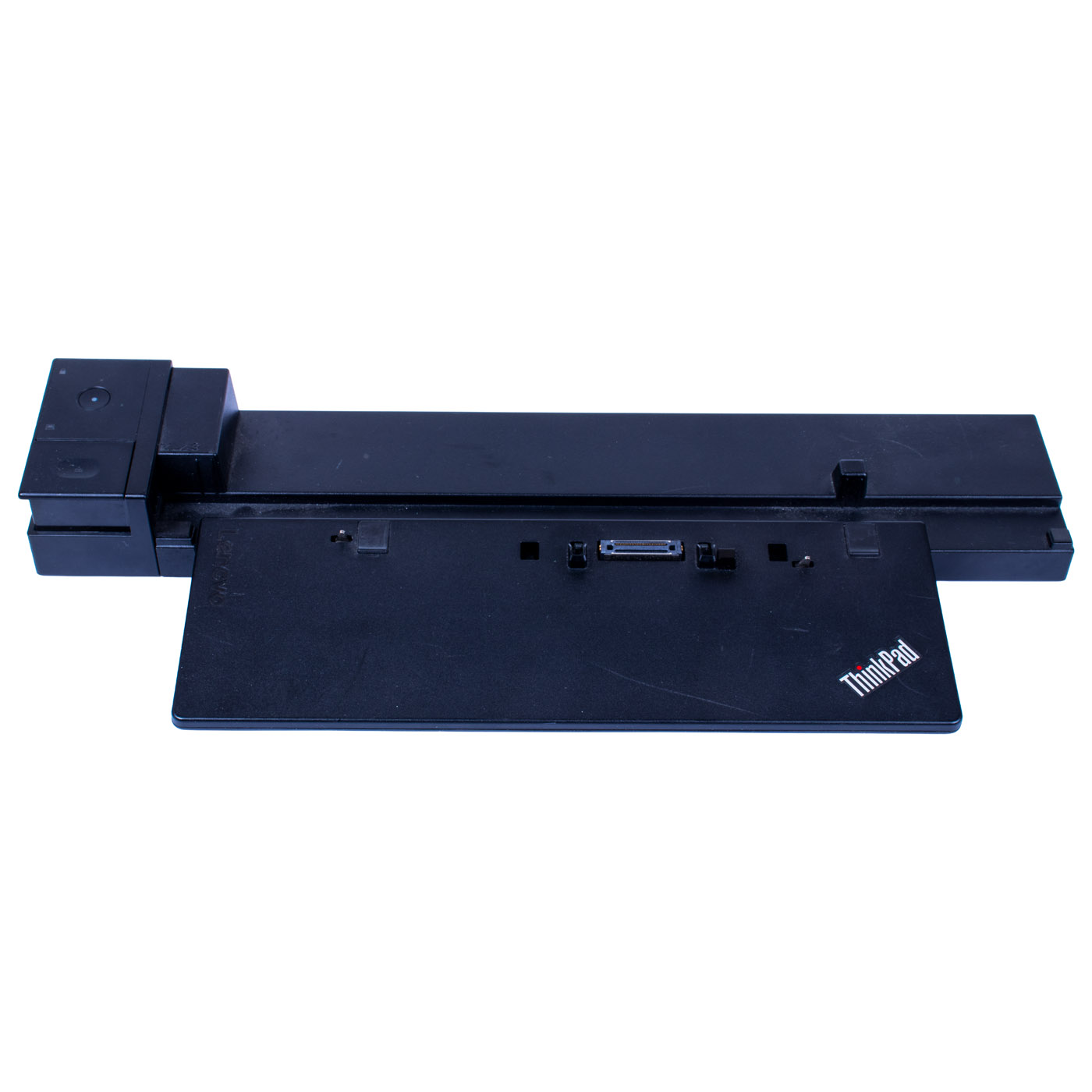

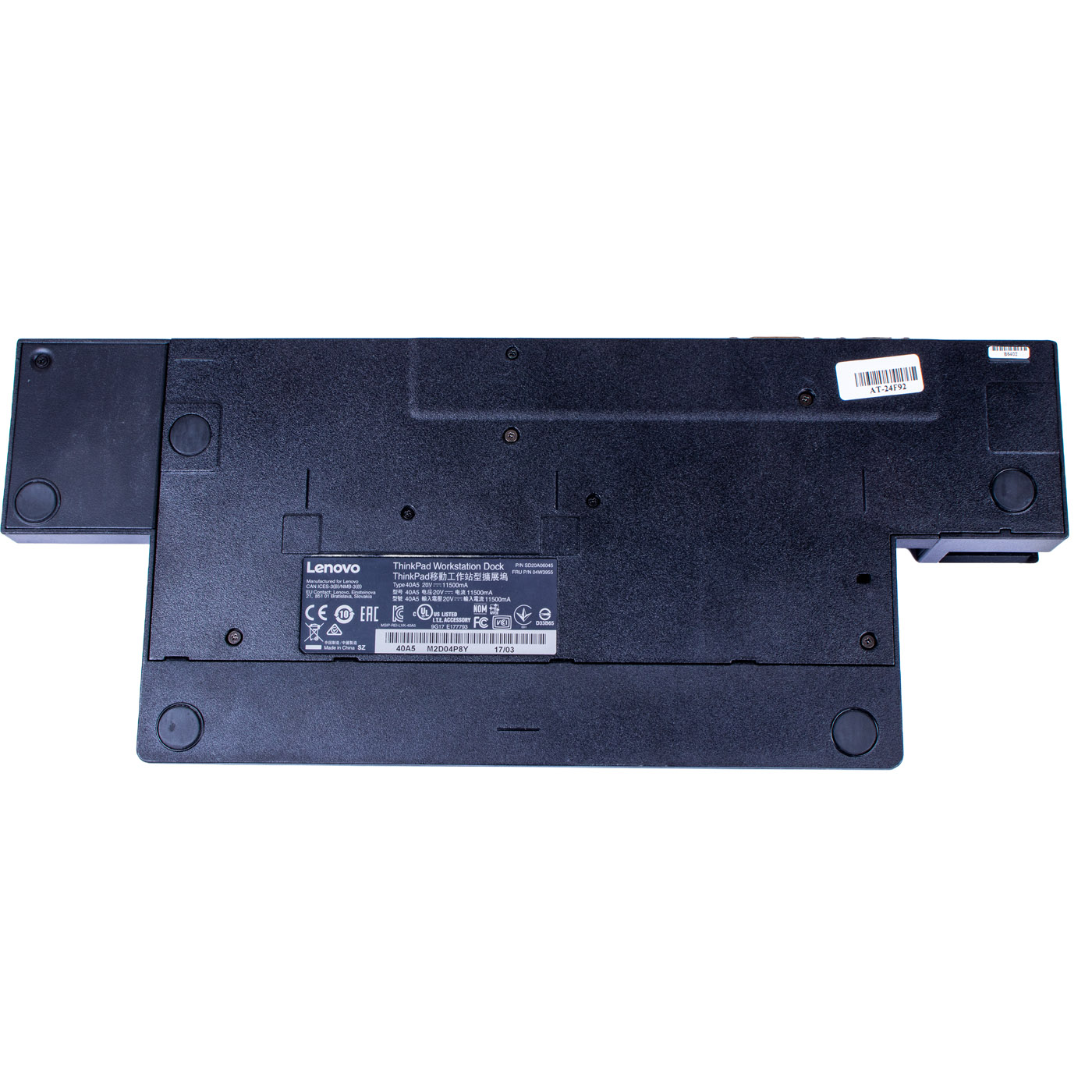

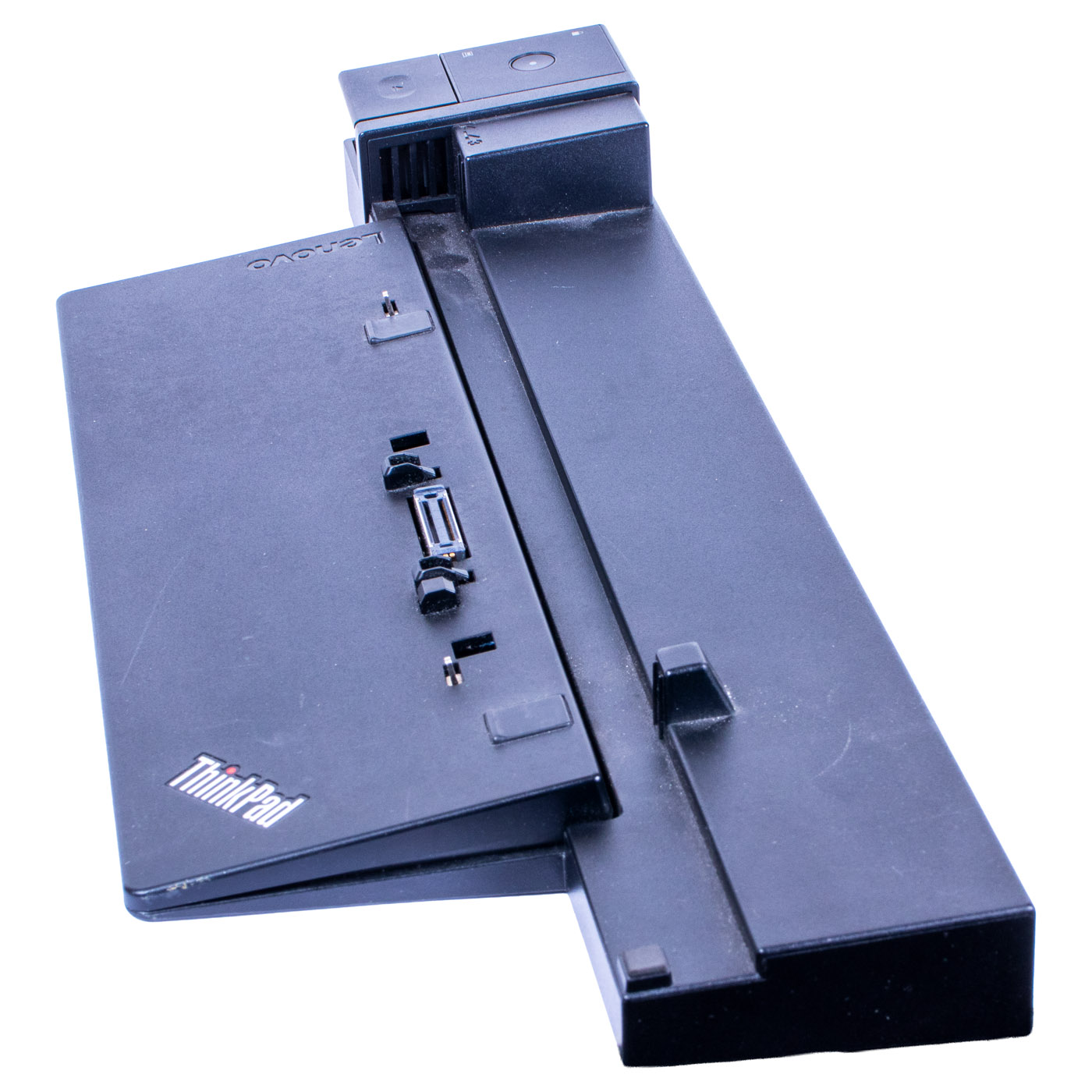

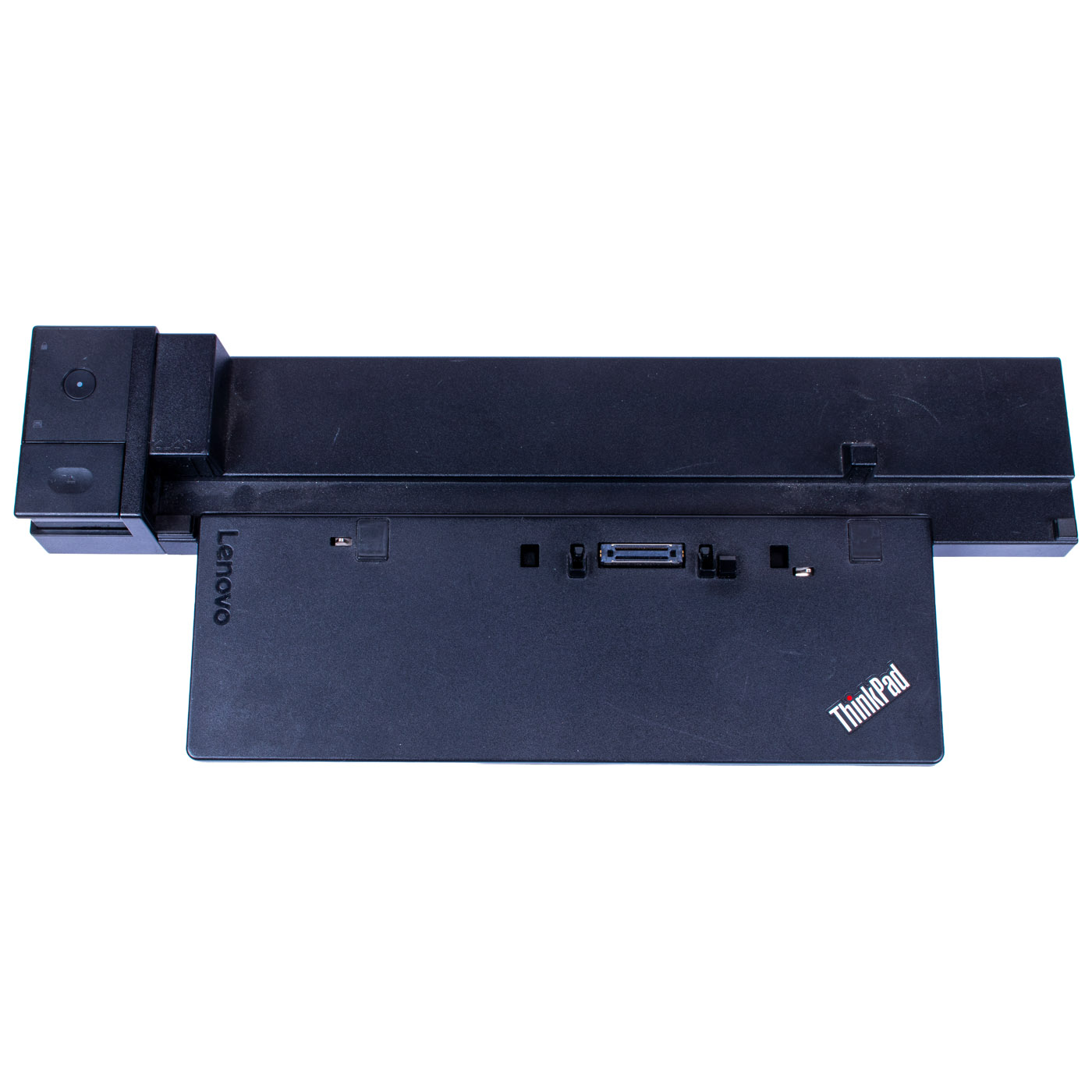

Lenovo ThinkPad Workstation Dock Type 40A5
Used, original product.
🧰 Lenovo ThinkPad Workstation Dock – 40A5 (Slim Tip)
🔎 FRU: 04W3955 • P/N: SD20A06045 • Type: 40A5
🖥️ Docking station for the newer ThinkPad generation with the Slim Tip (rectangular) power connector – full connectivity and multi‑monitor support.
🌟 Key features
- ✅ Compatible with ThinkPad laptops from the Slim Tip era (new‑generation mechanical docking).
- 🔌 Ports: 6× USB 3.0 + 1× USB 2.0 with Always‑On charging.
- 🎬 Video: 2× DisplayPort + DVI‑D + VGA – multi‑monitor configurations (depend on the laptop/GPU).
- 🌐 Gigabit Ethernet (RJ‑45) for a stable wired network connection.
- ⚡ Power input via the rectangular 20 V Slim Tip connector – 170 W / 230 W variants.

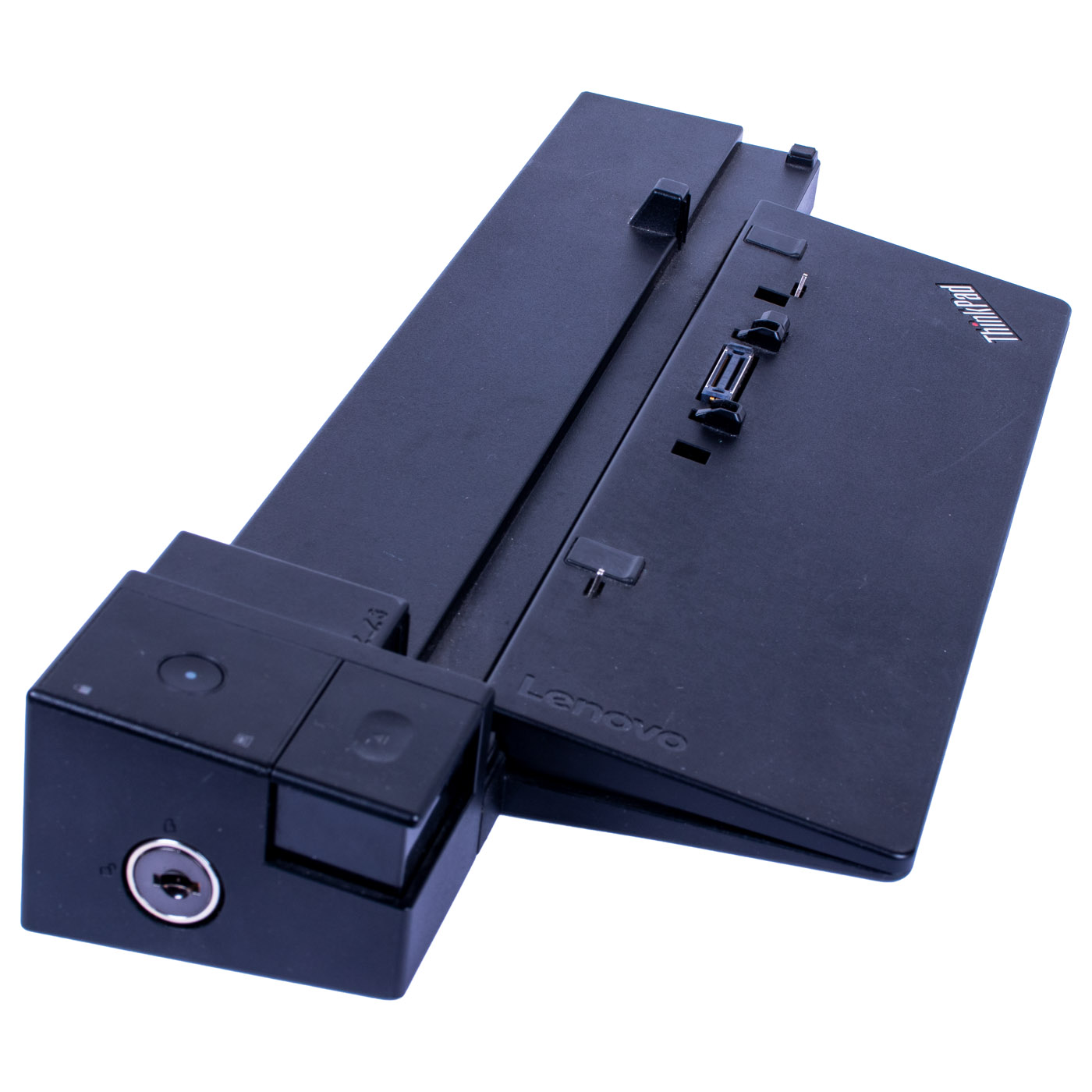

- 🔒 Mechanical lock with key and release button – fast and secure docking/undocking.

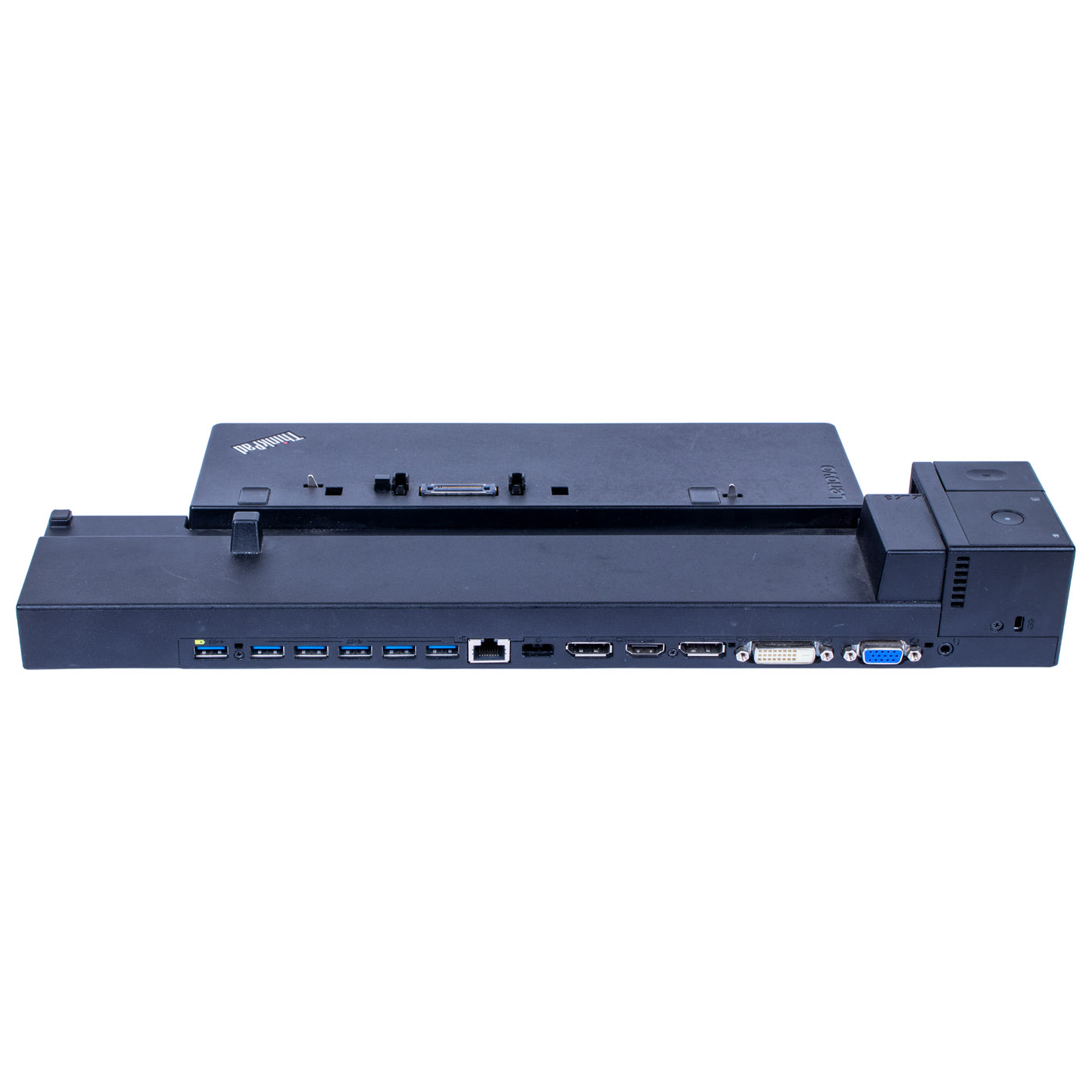

🧩 Ports and interfaces

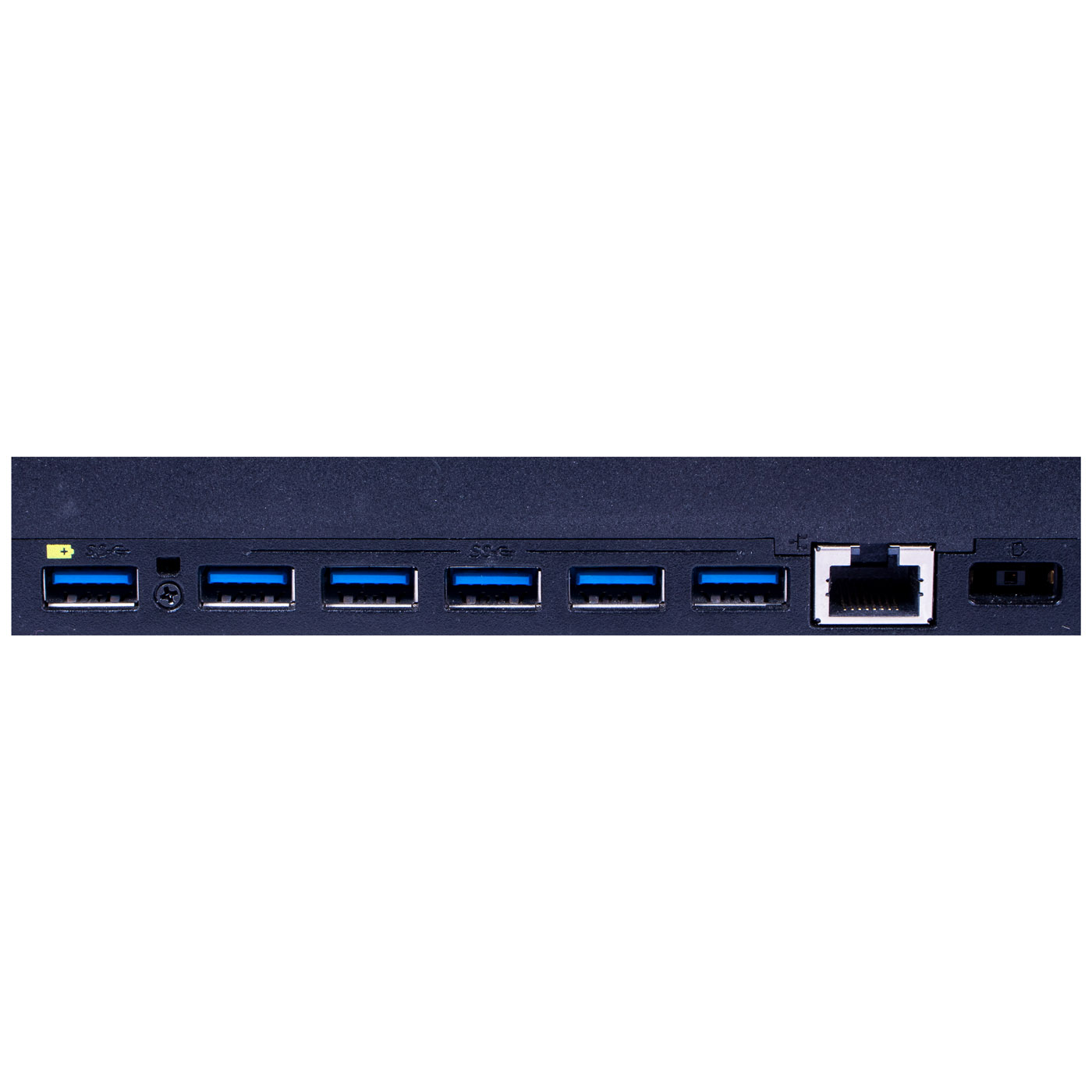

- USB:
- 6× USB 3.0 Type‑A (rear) 🔵
- 1× USB 2.0 Type‑A with Always‑On charging ⚡
- Networking:
- 1× RJ‑45 Gigabit Ethernet 🌐

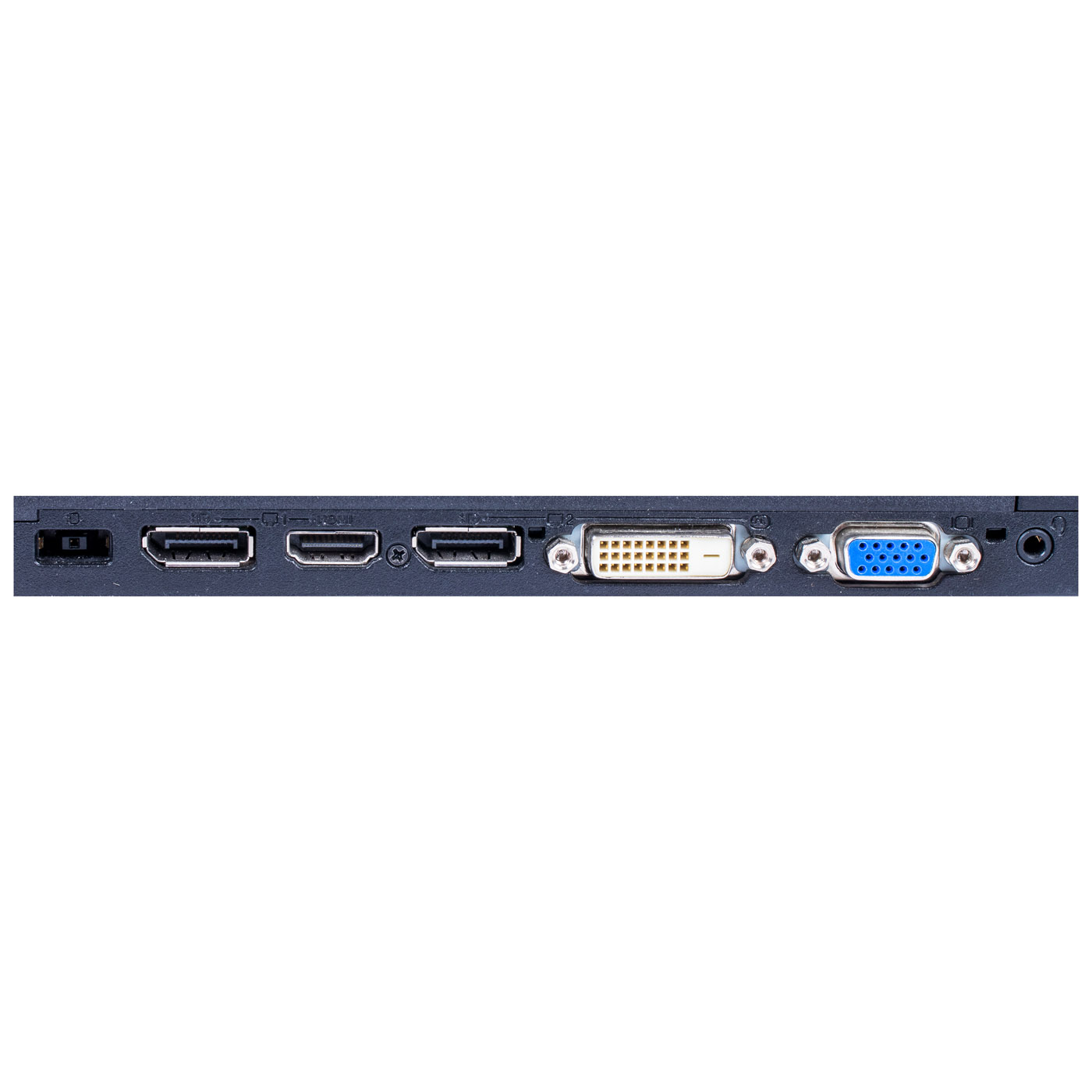

- Video:
- 2× DisplayPort 🖥️🖥️
- 1× DVI‑D 🔶
- 1× VGA 🔷
- Audio:
- 1× 3.5 mm audio out 🎧
- Power:
- 1× 20 V Slim Tip (rectangular) input ⚡
- Other:
- Kensington lock slot 🔐
- Release button and keyed lock 🗝️
📋 Technical specifications
- Model: ThinkPad Workstation Dock
- Type: 40A5 (Slim Tip)
- FRU: 04W3955 • P/N: SD20A06045

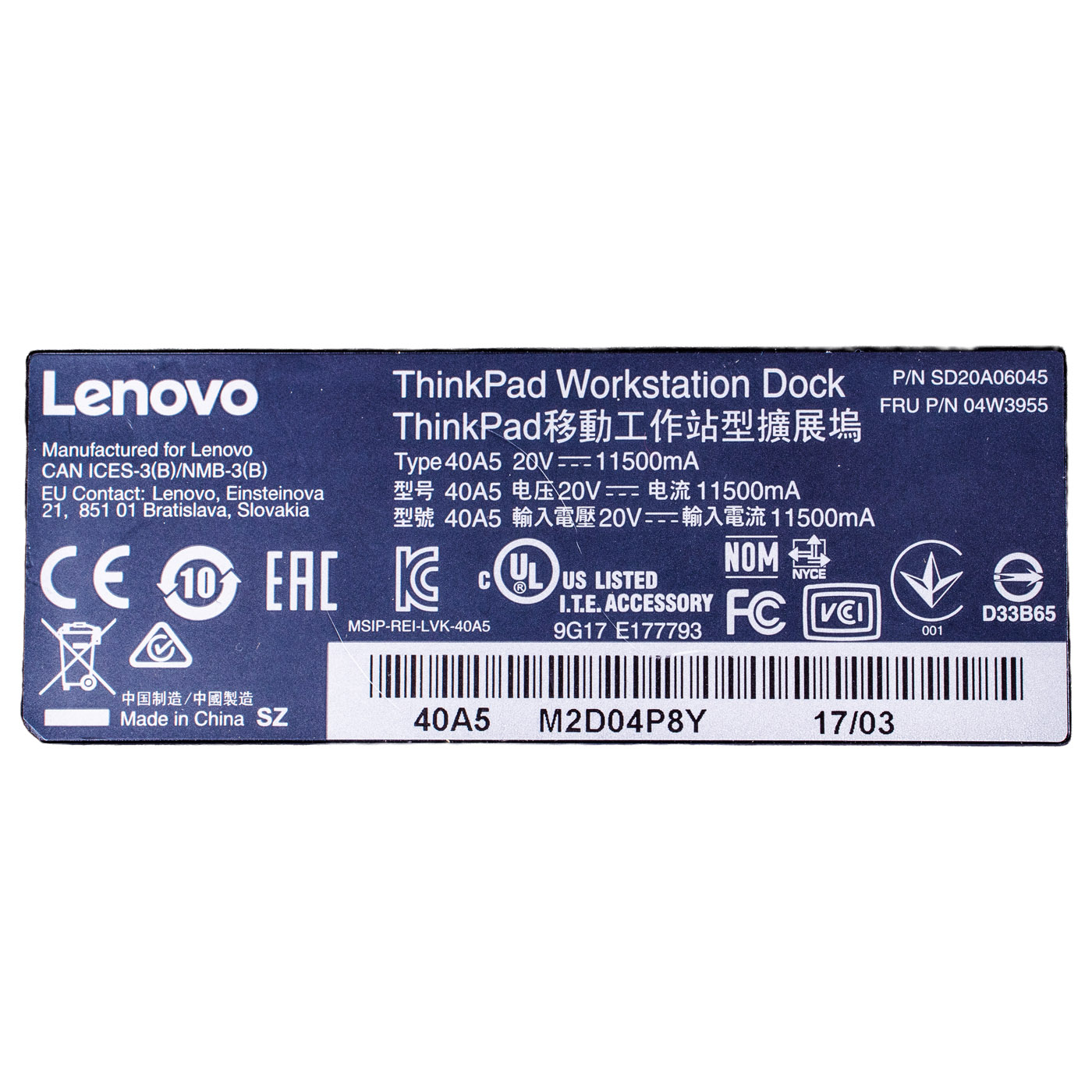

- Dock input power: 20 V DC • max current per label: 11.5 A (11,500 mA)
- Required AC adapter: 170 W or 230 W Slim Tip (select per laptop; not included) ⚠️
- Display support: up to 3 external displays – depends on the notebook/GPU
- Security: mechanical lock, alignment guides
- Color: black (ThinkPad Black)
- Certifications (per label): UL, EAC, CE, KC, NOM and others 🏷️
🧭 Compatibility – Lenovo laptops (Slim Tip generation)
Examples of models commonly compatible with Slim Tip docking (including 40A5). Actual compatibility and monitor count depend on GPU configuration and hardware revision.
🧱 P‑series (Workstation)
- ✅ P50, P51 — 230 W adapter recommended
- ✅ P70, P71 — 230 W adapter recommended
🅣 T‑series (Slim Tip era)
- ✅ T440, T440p, T440s
- ✅ T450, T450s
- ✅ T460, T460p, T460s
- ✅ T470, T470p
- ✅ T540p
🅛 L‑series
- ✅ L440, L450
- ✅ L460, L470
🅦 W‑series (late Slim Tip generation)
- ✅ W540, W541, W550s
🅧 X‑series (Slim Tip with side docking)
- ✅ X240, X250, X260
🚫 Not compatible
- ❌ Classic bottom‑dock generation (round power plug): T430/T530, W530, L430/L530, X230, etc.
- ❌ USB‑C/Thunderbolt generation: T480 and newer, X280 and newer, P1/P53/P15, etc. (require USB‑C/TB docks).
📦 Box contents
- Lenovo ThinkPad Workstation Dock 40A5 (Slim Tip) – FRU 04W3955.
🎯 User benefits
- ⏱️ Instant port expansion without cable swapping.
- 🔗 Reliable LAN and solid DP/DVI/VGA monitor connectivity.
- 🔋 Power your notebook from a single hub – a cleaner desk.
- 🛡️ Safe docking thanks to alignment guides and keyed lock.
📝 Notes
- This is the Slim Tip variant – rectangular power connector. Do not confuse with the classic bottom‑dock using a round plug.
- Some multi‑monitor setups may require active adapters at higher resolutions or certain port combinations.
- For P‑series workstations, a 230 W adapter is typically recommended.
📞 Need to confirm compatibility?
Share your ThinkPad model/MTM – we’ll match the proper AC adapter and verify display support.📱 +48‑601‑415357 • 📧 sklep@abcdeal.pl
| Nazwa części | Stacja dokująca |
|---|---|
| Marka | Lenovo ThinkPad |
| Model | ThinkPad Workstation Dock , type 40A5 |
| Obsługiwane laptopy | T440, T440p, T440s, T450, T450s, T460, T460p, T460s, T470, T470p, T540p, L440, L450, L460, L470, W540, W541, W550s, X240, X250, X260, P50, P51, P70, P71 |
| Stan | Używana |
