🔧 CPU fan for Lenovo IdeaPad Yoga S940 14 IIL 🔧

🖥️ IdeaPad Yoga S940 14 IIL | CPU cooling fan | 14" | Black

⚙️ PRODUCT CHARACTERISTICS

High‑quality CPU cooling fan dedicated to the ultrabook Lenovo IdeaPad Yoga S940 14 IIL with a 14" display. The cooling module is based on a hydraulic bearing, combining high efficiency with low noise. The fan effectively dissipates heat from the processor, keeping the device at a stable operating temperature during everyday use as well as more demanding tasks such as multimedia work or heavy multitasking.

📋 TECHNICAL DATA

Type: CPU cooling fan
Compatibility: Lenovo IdeaPad Yoga S940 14 IIL
Screen size: 14"

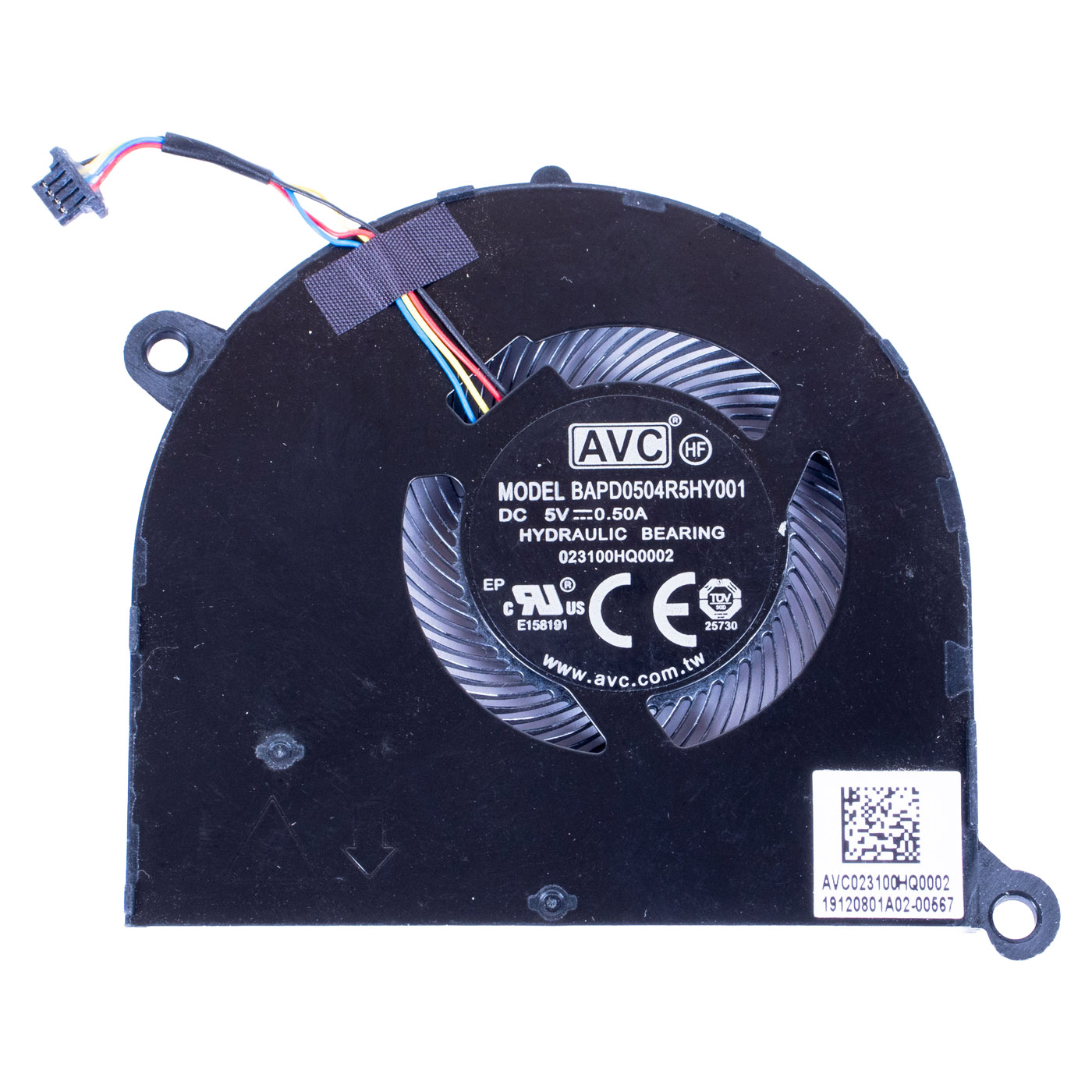

Fan model: BAPD0504R5HY001
FRU number: BAPD0504R5HY001
Alternative FRU: 5H40S19975
Voltage: DC 5V
Current: 0.50A
Bearing type: Hydraulic Bearing
Condition: New
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Designed for Yoga S940 14 IIL – full mechanical and electrical compatibility with the Lenovo ultrabook
🔹 Hydraulic bearing – modern bearing technology providing long lifespan and quiet operation
🔹 Efficient cooling – maintains optimal CPU temperature even under higher load
🔹 Low noise level – ideal for quiet office and home environments
🔹 Original FRU numbers – BAPD0504R5HY001, interchangeable with 5H40S19975
🔹 Easy installation – part designed according to the manufacturer’s specification, which facilitates replacement in a service center or by an experienced user

🔢 CATALOG NUMBERS

FRU: BAPD0504R5HY001
Alternative FRU: 5H40S19975
Compatible laptop model: Lenovo IdeaPad Yoga S940 14 IIL (14")

❓ WHEN SHOULD YOU REPLACE THE CPU FAN?

• When the laptop becomes noticeably hot, even though the air vents are clean
• When you hear unusual noises from the fan area (squeaking, grinding, knocking)
• When fan speed is unstable or the fan does not start at all
• When the laptop shuts down by itself or significantly throttles performance due to overheating

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power adapter and all external devices.
2. If possible, discharge static electricity (ESD) and prepare a clean workspace.
3. Unscrew the screws securing the bottom cover and carefully remove it.
4. Locate the cooling module with the CPU fan.
5. Gently disconnect the fan power connector from the motherboard.
6. Unscrew the screws securing the old fan and remove it from the chassis.
7. Place the new BAPD0504R5HY001 (FRU 5H40S19975) fan in the same position and tighten the screws.
8. Reconnect the fan cable to the motherboard connector.
9. Reinstall the bottom cover, tighten the screws, then power on the laptop and check the cooling system operation.
Note: if you do not have experience with ultrabook repairs, we recommend having the replacement performed by a professional service center.

🎯 PURPOSE

The BAPD0504R5HY001 CPU fan is designed for Lenovo IdeaPad Yoga S940 14 IIL, where it is responsible for maintaining a safe operating temperature of the processor inside the slim 14" chassis. It is a key element of the cooling system that directly affects the stability, performance and lifespan of the entire device.

✅ COMPATIBILITY WARRANTY

The offered fan has been selected to ensure full compatibility with the Lenovo IdeaPad Yoga S940 14 IIL laptop. Matching FRU numbers BAPD0504R5HY001 / 5H40S19975 guarantee proper fit and correct operation of the cooling system. If you are not sure whether this part is suitable for your configuration, please contact us – we will help verify compatibility based on the model and serial number of your laptop.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the fan for Yoga S940 14 IIL or need assistance in choosing other cooling components? Our specialists will be happy to advise you and help you select the right part.

📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL - Your Trusted Lenovo Parts Specialist

At ABCDEAL we have been supplying high‑quality parts for Lenovo laptops for many years. Every item is checked before shipping so you can be sure of reliable operation.

🎯 Choose professionals – invest in high quality!

A properly working cooling system is essential for trouble‑free operation of your ultrabook. By replacing the fan with the original BAPD0504R5HY001 / 5H40S19975 model, you invest in the long life of your Lenovo IdeaPad Yoga S940 14 IIL and stable performance even under load.
