🔧 Fan with Heatsink for Lenovo ThinkPad P1 Gen 6 🔧

🖥️ ThinkPad P1 6th Generation | 16" | Dual Fan Cooling System | Original

⚙️ PRODUCT DESCRIPTION

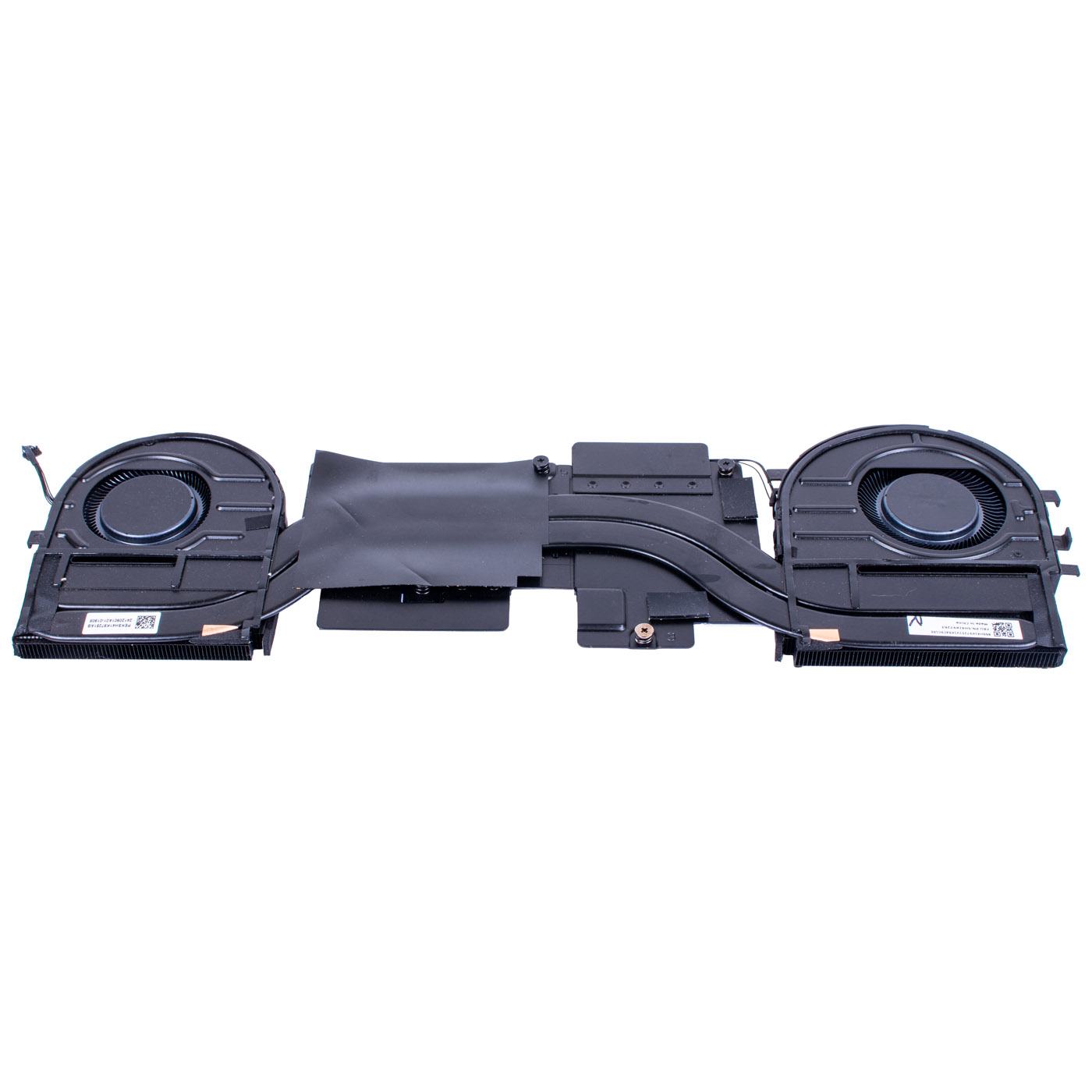

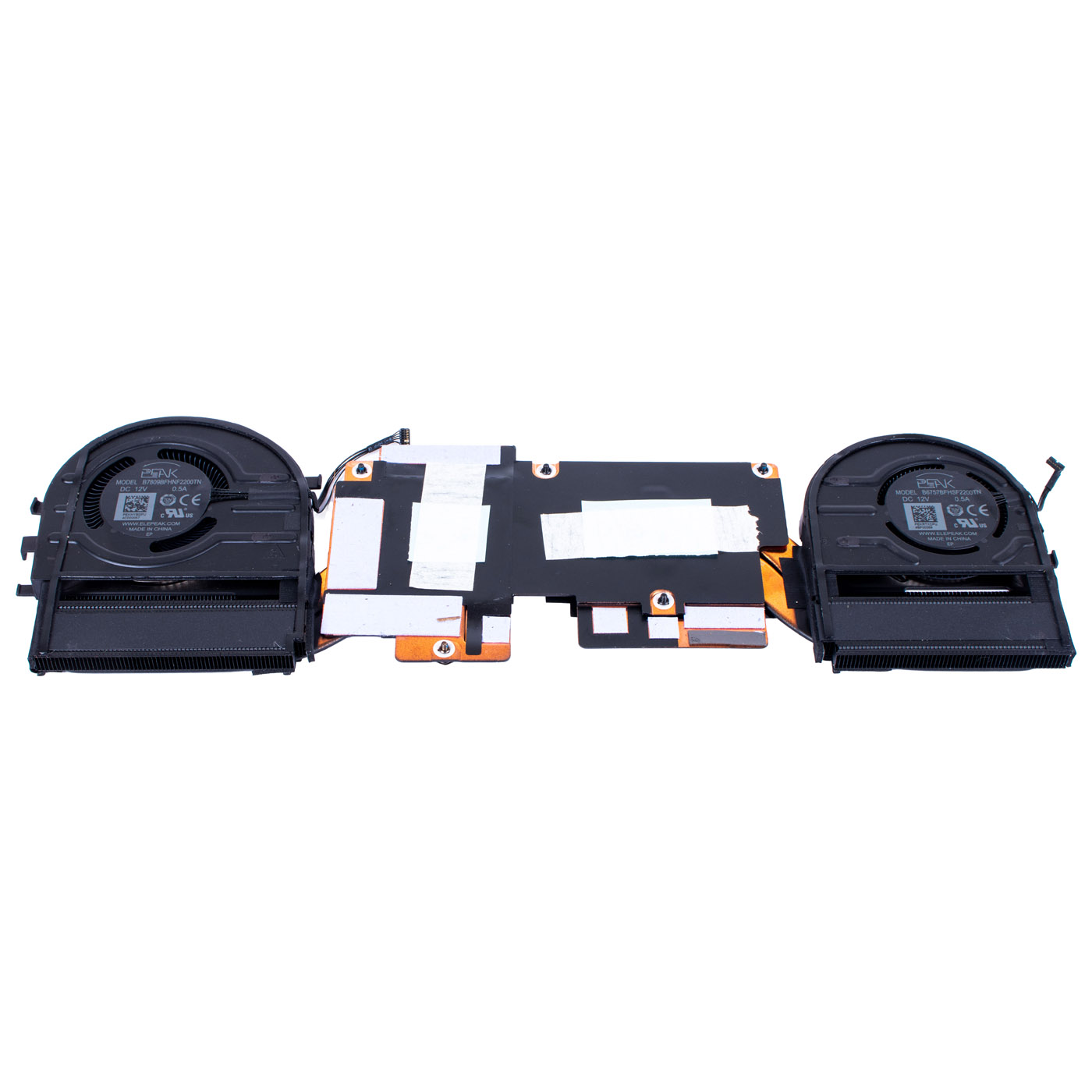

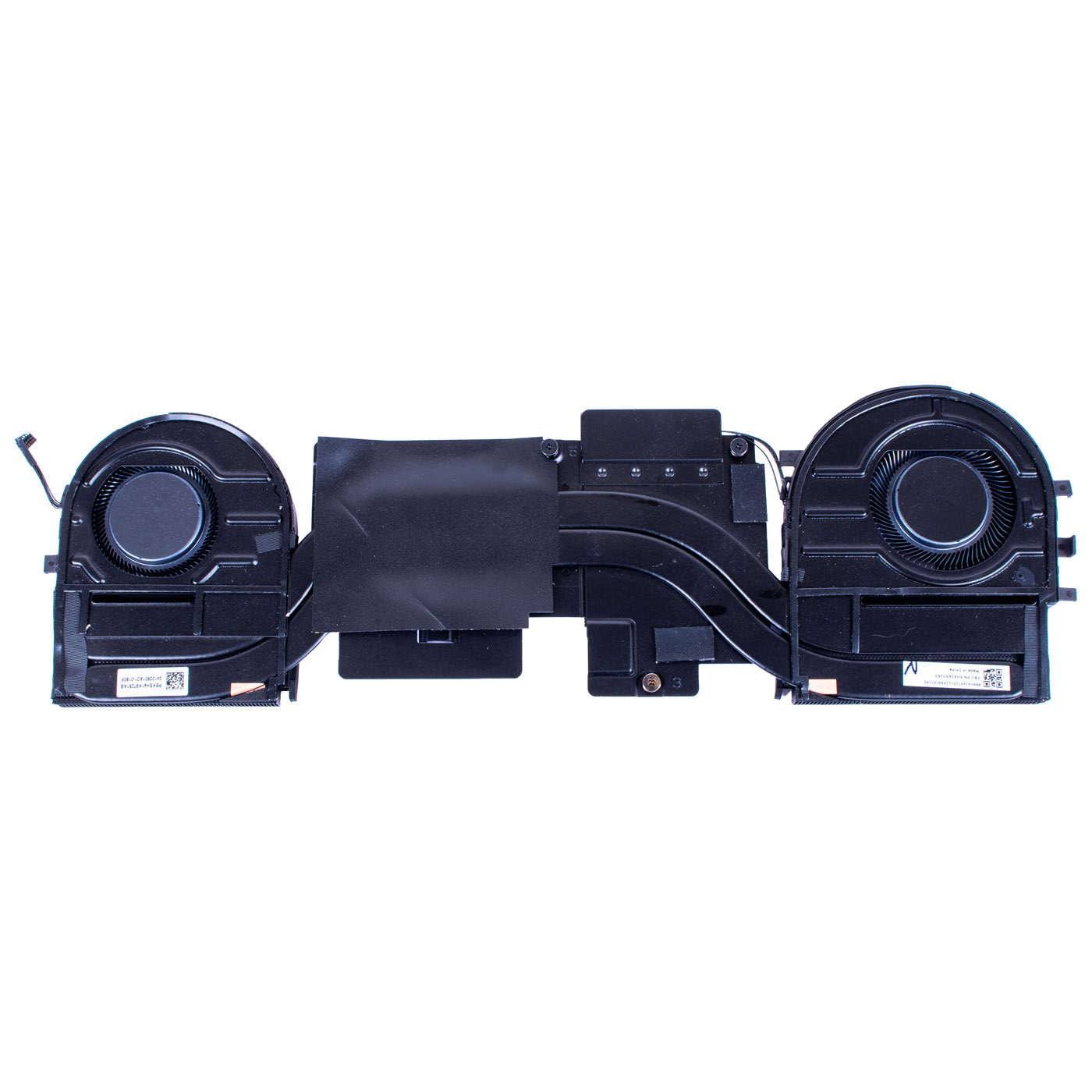

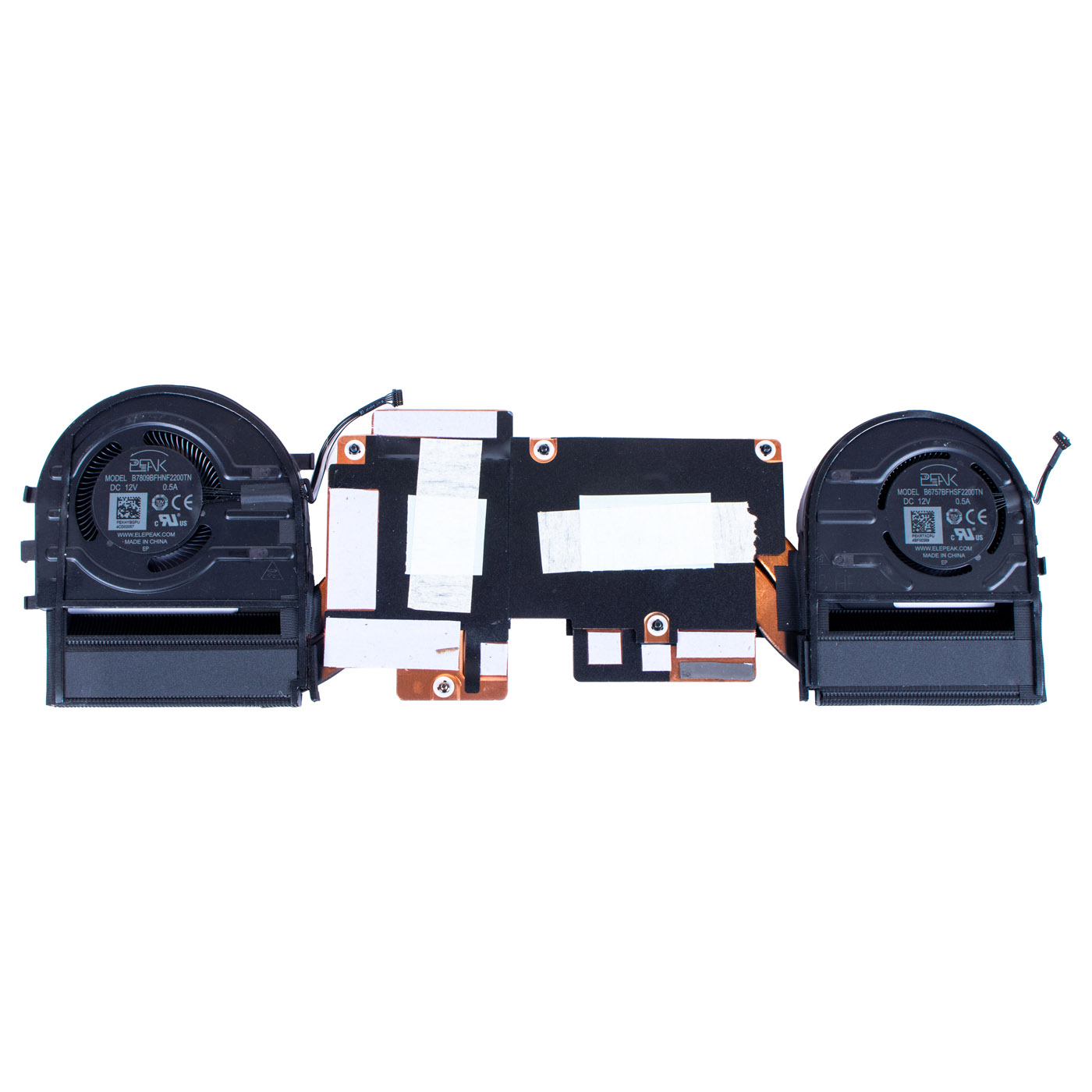

Brand new, original complete cooling assembly dedicated to Lenovo ThinkPad P1 6th Generation (Gen 6) workstations. This thermal module features a robust heatsink with four exhaust sections and two high-performance PEAK fans powered by 12V. The design of this thermal module has been optimized for 16-inch displays and the most powerful hardware configurations, ensuring stable operation for both the CPU and GPU even under extreme workloads. Original Lenovo parts guarantee perfect mechanical fit and maximum thermal efficiency.

📋 TECHNICAL SPECIFICATION

Product type: Dual Fan with Heatsink (Thermal Module)
Brand: Lenovo ThinkPad
Compatibility: ThinkPad P1 Gen 6 (6th Generation)
Screen size: 16"
Condition: Brand new
Fan parameters: DC 12V 0.5A (High Performance)

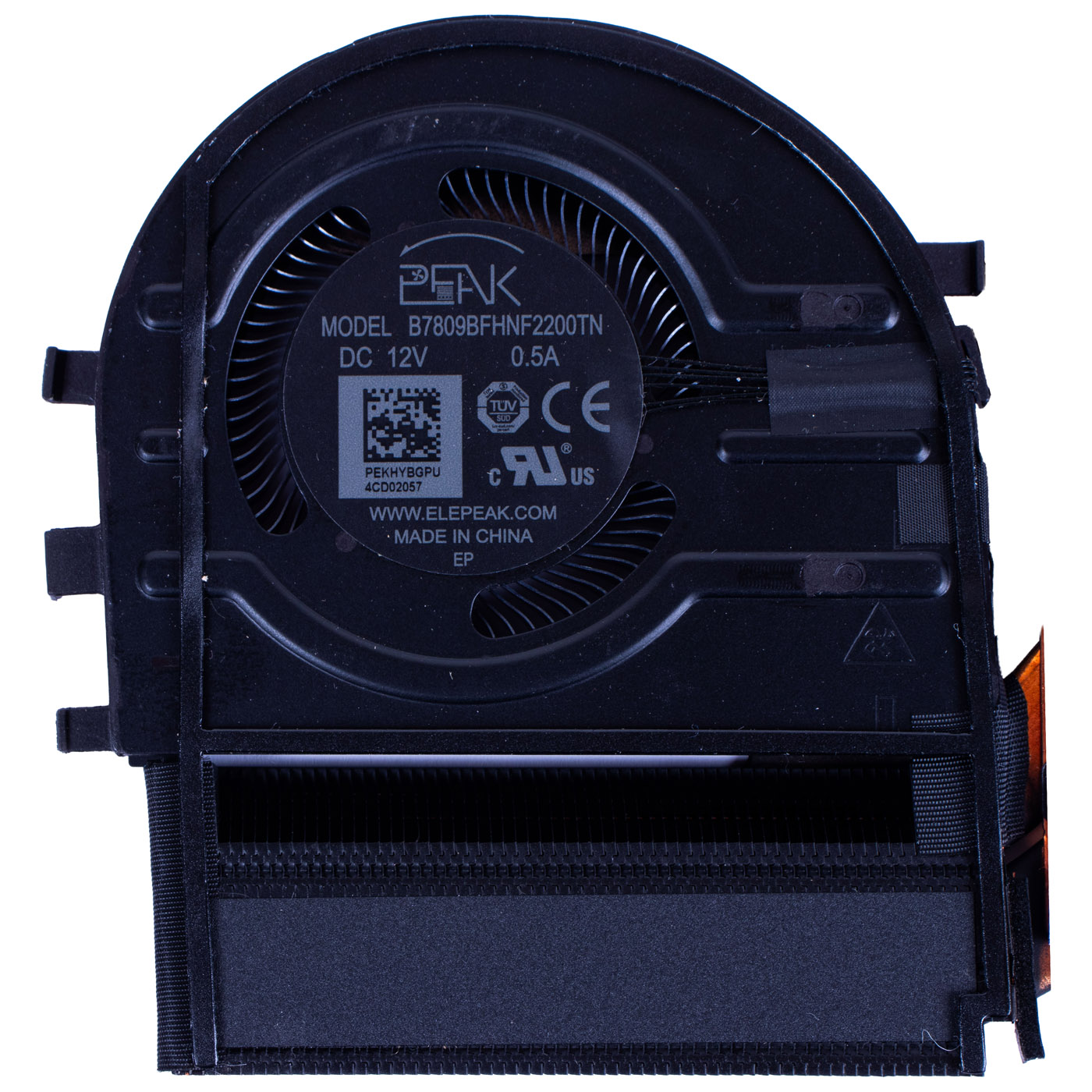

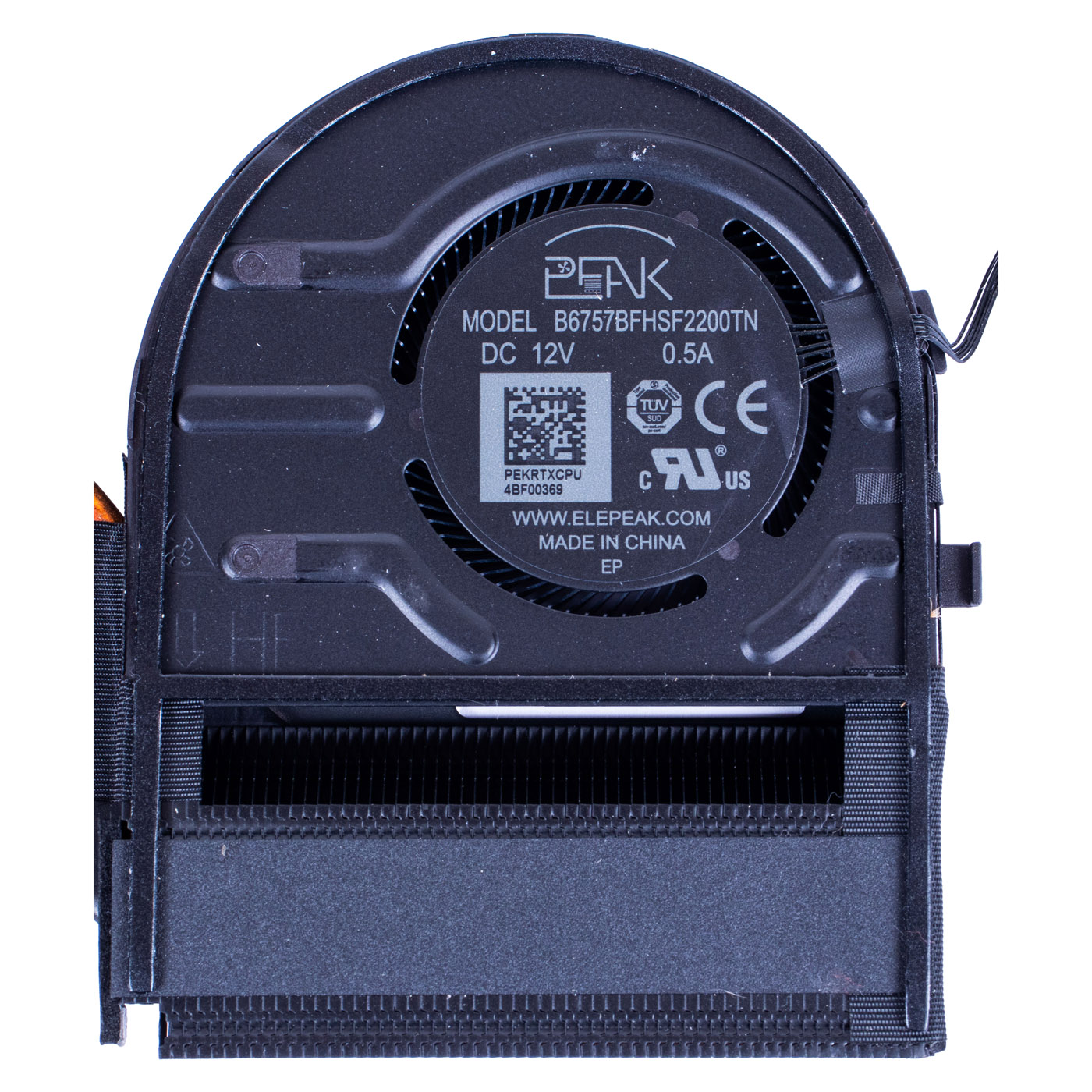

Fan models: PEAK B7809BFHNF2200TN (GPU) / B6757BFHSF2200TN (CPU)

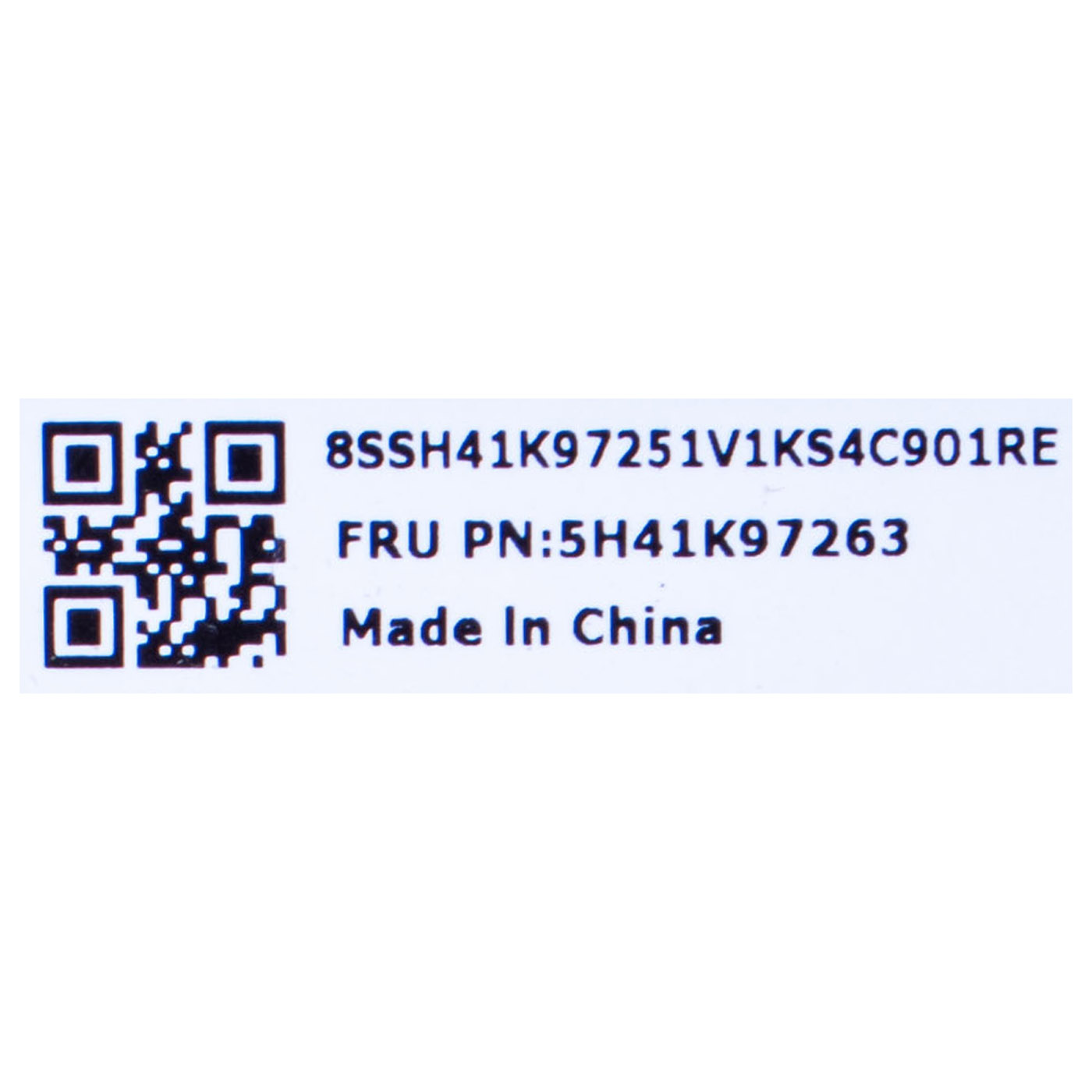

FRU PN: 5H41K97263
Substitute FRUs: 5H41K97264, 5H41K97265, SH41K97251
Warranty: 12 months

🌟 KEY ADVANTAGES

🔹 Genuine Lenovo Part – ensures maximum reliability and 100% compatibility
🔹 12V Dual Fan System – two PEAK 0.5A fans providing superior airflow compared to standard 5V fans
🔹 Quad-Exhaust Design – advanced heatsink with four cooling fin sections for maximum heat dissipation
🔹 Precision Engineering – designed exclusively for the 16" P1 Gen 6 chassis
🔹 Quiet & Stable – high-quality fan bearings reduce vibration and noise levels even under load
🔹 System Stability – prevents thermal throttling and protects key components from overheating

🔢 PART NUMBERS

FRU PN: 5H41K97263
Substitutes: 5H41K97264, 5H41K97265, SH41K97251
Fan markings: PEAK B7809BFHNF2200TN / B6757BFHSF2200TN
Series: ThinkPad P1 6th Gen

❓ WHEN SHOULD YOU REPLACE THE COOLING SYSTEM?

• The laptop overheats significantly during standard tasks
• Fans emit loud, unusual noises (buzzing, rattling, or grinding)
• The system shuts down automatically due to thermal protection
• Noticeable performance drops caused by thermal throttling
• Fans have stopped working or spin irregularly
• "Fan Error" message appears during system startup

🔧 INSTALLATION PROCESS

1. Turn off the laptop, disconnect the power adapter, and remove the bottom cover.
2. Disconnect the battery connector from the motherboard for safety.
3. Disconnect the two fan power connectors (CPU and GPU).
4. Loosen the heatsink screws in the reverse order indicated on the module (usually from the highest number down to 1).
5. Gently lift the old assembly and thoroughly clean the CPU and GPU dies from old thermal paste.
6. Apply a high-quality new thermal paste to the processor and graphics card.
7. Install the new 5H41K97263 module and tighten the screws according to the numbering.
8. Reconnect the fans and battery, then reassemble the bottom cover.

🎯 PURPOSE

This advanced cooling system is designed for professional Lenovo ThinkPad P1 Gen 6 workstations. By utilizing 12V fans, this module offers significantly higher performance than standard 5V solutions, which is essential for models equipped with powerful H-series processors and high-end graphics cards. It is ideal for 3D rendering, video editing, and complex engineering calculations.

✅ COMPATIBILITY GUARANTEE

We guarantee full compatibility with the ThinkPad P1 6th Generation 16" model. FRU numbers 5H41K97263, 5H41K97264, 5H41K97265, and SH41K97251 confirm authenticity and compliance with Lenovo technical specifications. The exact appearance of the offered item (including heat pipe layout and connectors) is shown in the provided photos.
