🌡️ Thermal Pad 100×100mm 3.0mm — 13 W/m·K AlN Formula 🌡️

❄️ Thermal Pad 100×100mm | Thickness 3.0mm | Aluminum Nitride AlN Formula | 13 W/m·K

⚙️ PRODUCT DESCRIPTION

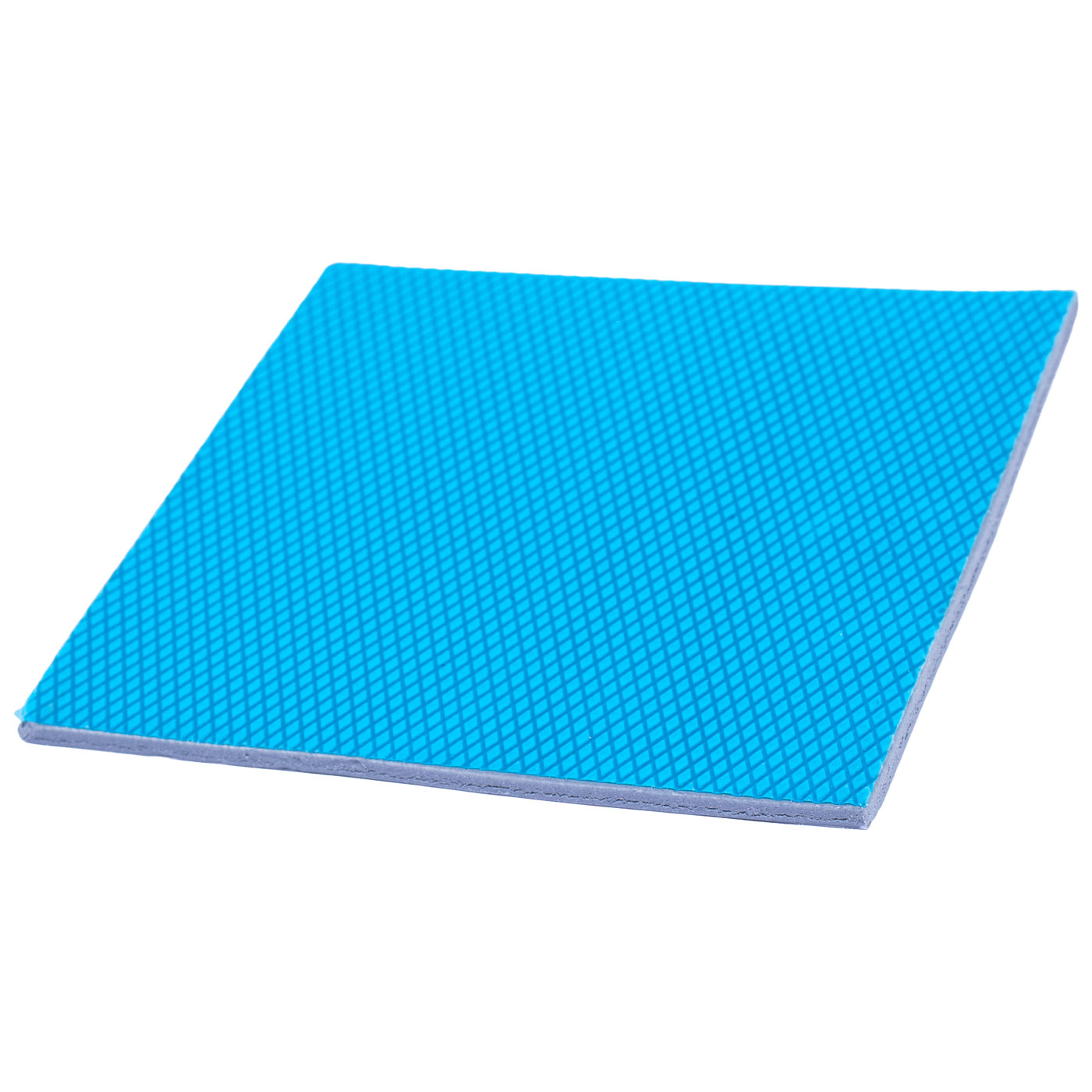

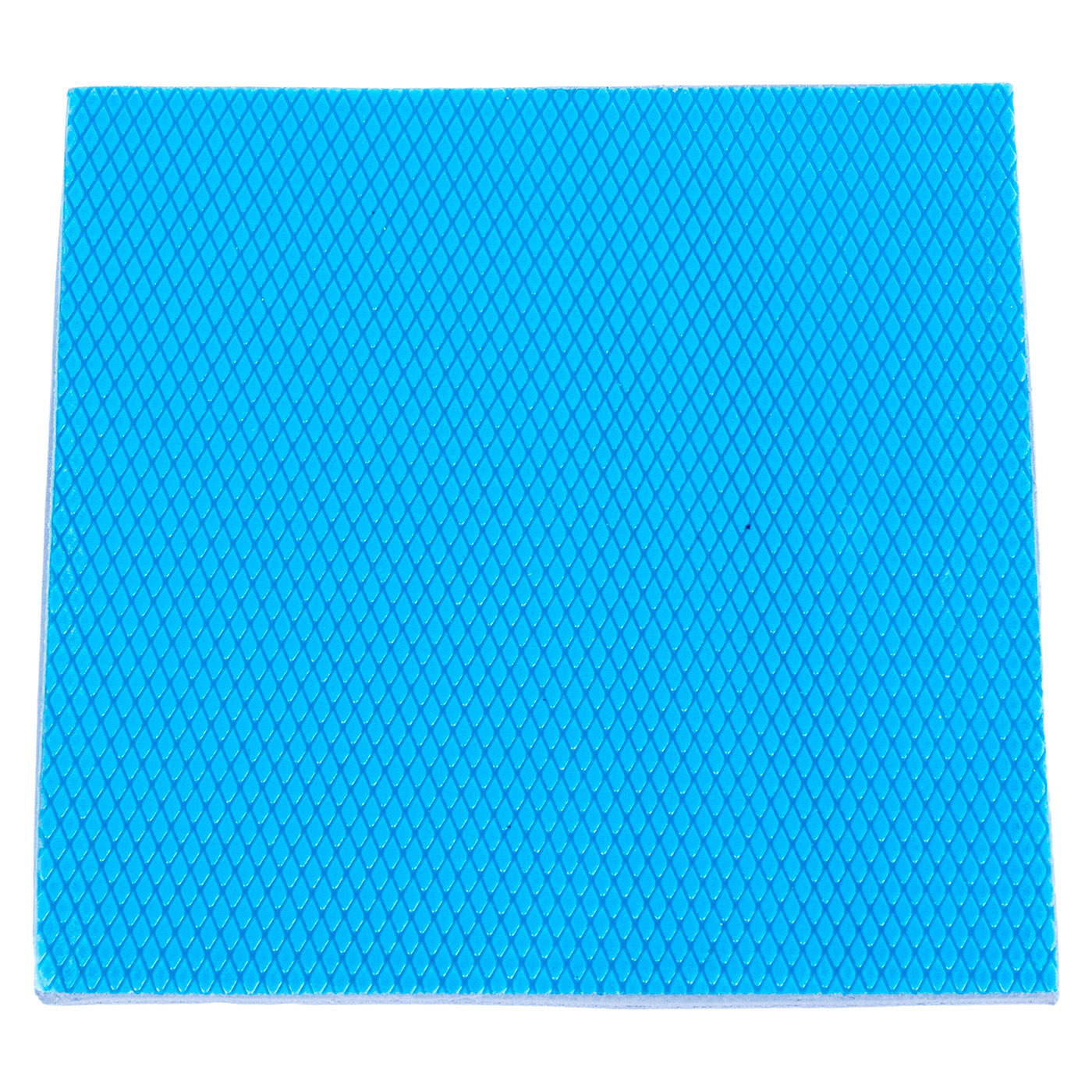

High-performance thermal interface pad, 100×100 mm, 3.0 mm thick. Formulated with aluminum nitride (AlN) — a premium ceramic compound that pushes thermal conductivity to 13 W/m·K, nearly twice the performance of standard silicone pads (6–8 W/m·K). Designed for heat dissipation from CPUs, GPUs, chipsets, RAM modules, M.2 SSDs and VRM circuits. One side features a grey protective film — remove before installation. The working surface has a characteristic diamond texture that ensures excellent contact with the cooled component.

📋 TECHNICAL SPECIFICATIONS

Condition: New
Material: high thermal conductivity silicone with aluminum nitride (AlN) formula
Thermal conductivity: 13 W/m·K
Dimensions: 100 × 100 mm
Thickness: 3.0 mm

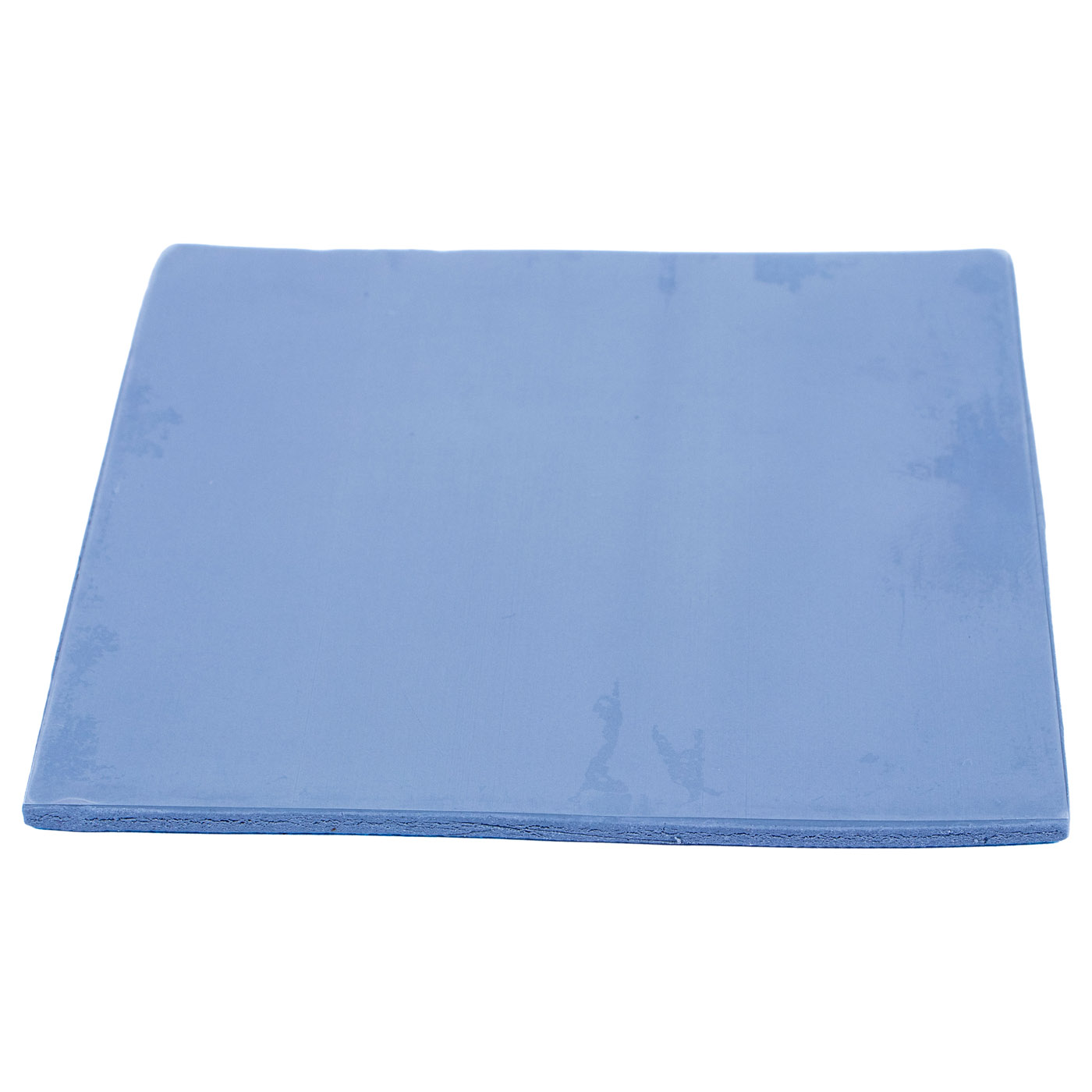

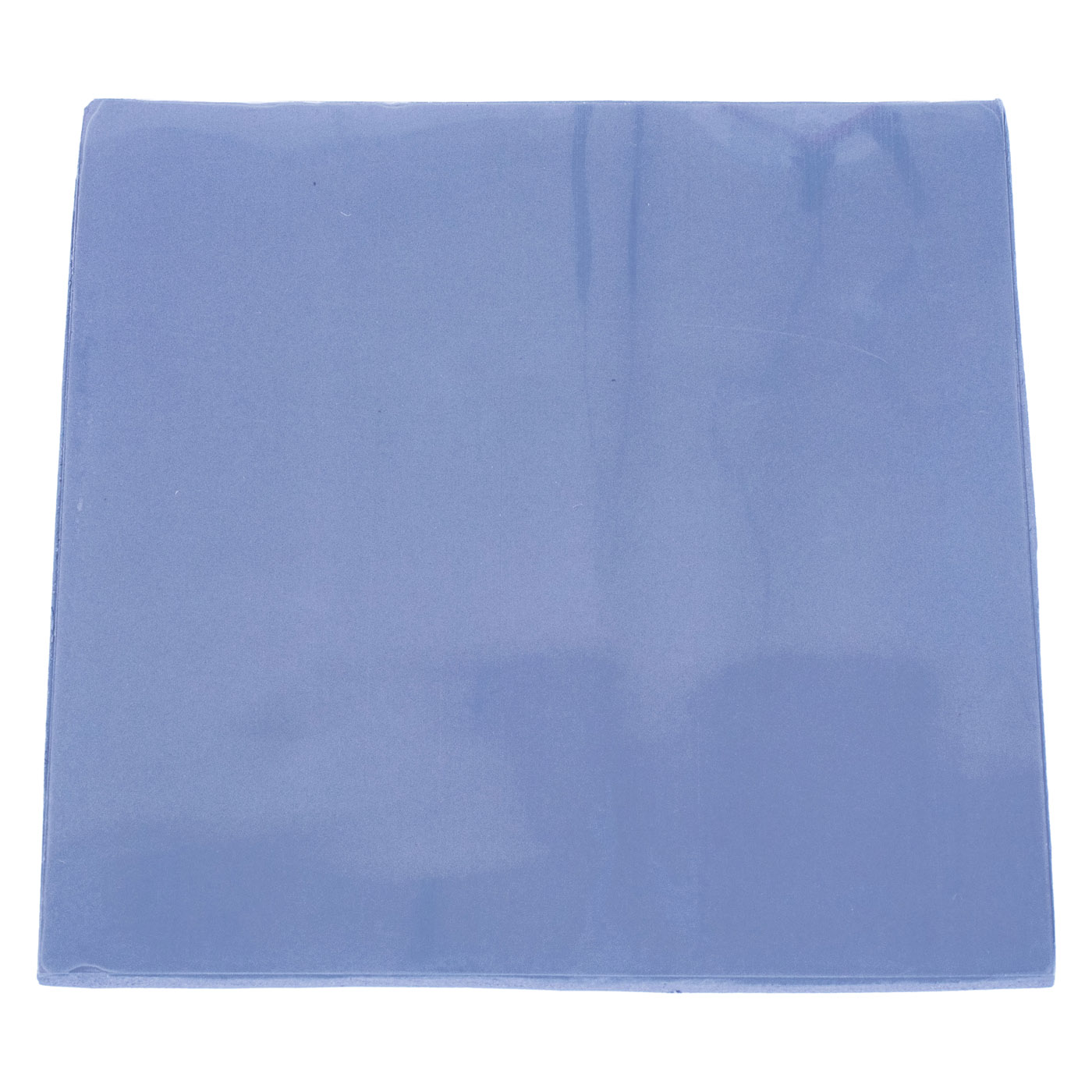

Color: blue (working side) / grey (protective film)
Protective film: yes (remove before use)
Cuttable: yes

🔑 KEY FEATURES

🔹 13 W/m·K thermal conductivity — nearly 2× higher than standard pads (6–8 W/m·K)
🔹 Aluminum nitride (AlN) formula — premium ceramic compound for demanding applications
🔹 Large 100×100 mm format — cut to any required shape for any component
🔹 3.0 mm thickness — ideal for filling medium gaps between components and heatsinks
🔹 Flexible silicone — conforms to surface irregularities without cracking
🔹 Protective film — keeps the working surface clean until installation
🔹 Ready to use — no additional thermal paste required

❓ WHEN TO REPLACE THE THERMAL PAD?

• CPU / GPU temperatures rising above normal — overheating despite a working fan
• Dried-out or damaged original thermal pad — common issue in older laptops and consoles
• Any heatsink removal — always replace the thermal pad after removing the cooler
• Fans running loud under light load — may indicate insufficient heat dissipation

🔧 INSTALLATION

1. Clean CPU/GPU and heatsink surfaces with 99% isopropyl alcohol
2. Cut the pad to the required shape
3. Remove the grey protective film
4. Press the pad onto the component surface
5. Mount the heatsink and tighten screws

🎯 APPLICATIONS

Laptops, desktop PCs, graphics cards, M.2 SSDs, RAM modules, PCH chipsets, motherboard VRM circuits, consumer electronics, workstations, gaming consoles.

✅ COMPATIBILITY

This is an electronic component — check the required thermal pad thickness for your device before ordering. Contact us if you have any questions — we will be happy to help you choose the right thickness. The exact appearance and condition of the item are shown in the photos. We offer hassle-free returns within 14 days.
