🔧 Cooling System for Lenovo ThinkPad P15 Gen 1 N19E 🔧

🖥️ ThinkPad P15 Gen 1 | Cooling System | 15.6" | N19E | 5H40X89383

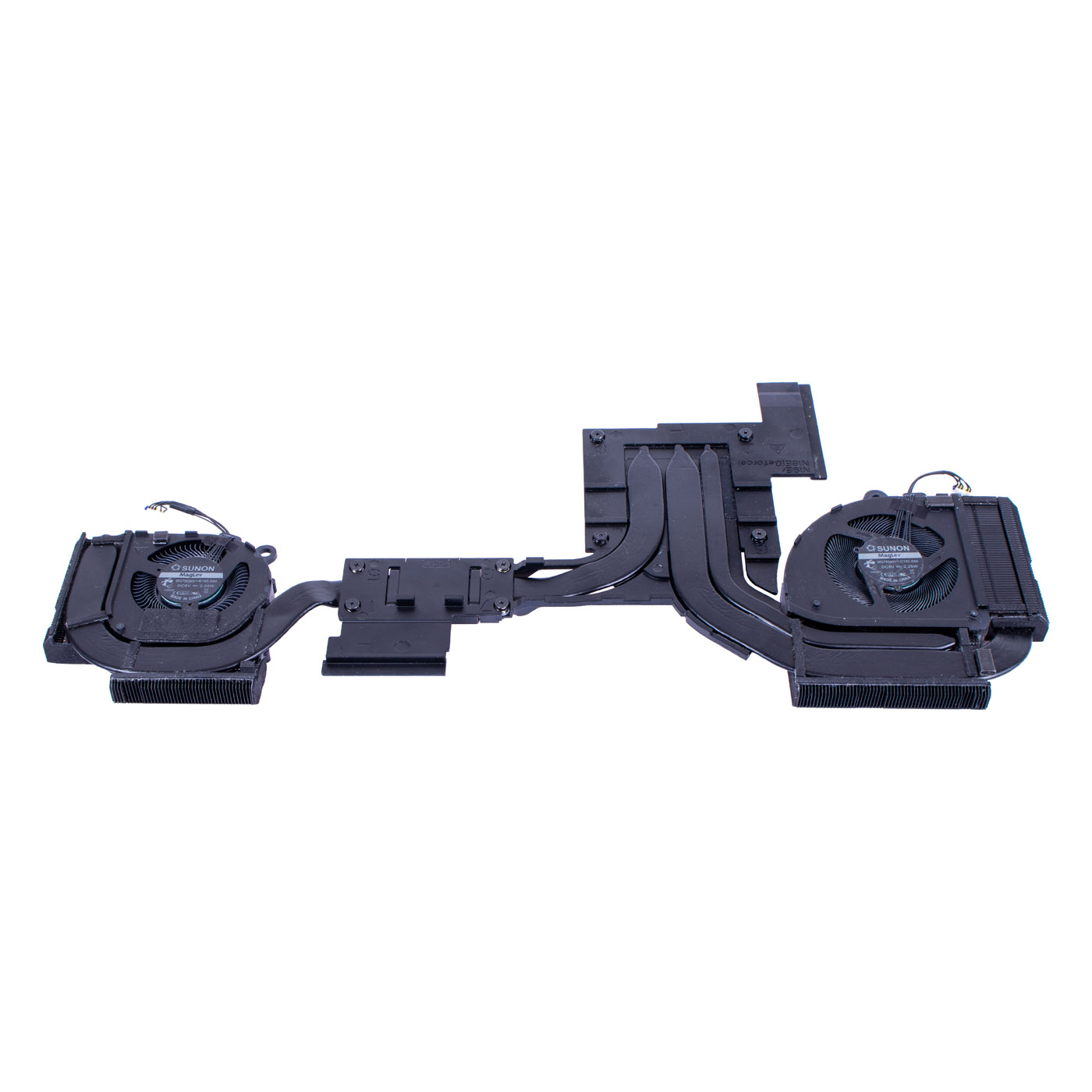

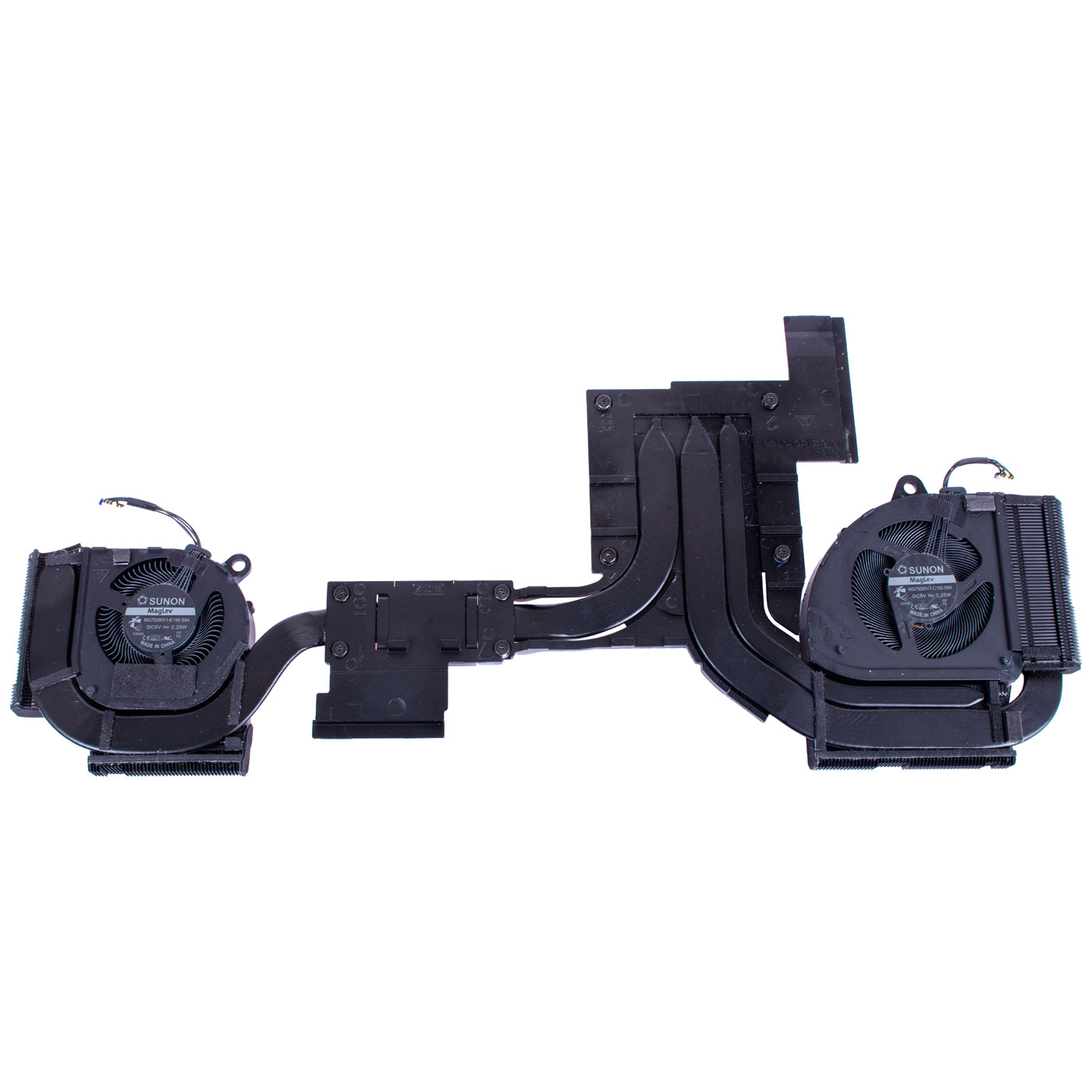

Original complete cooling system — dual SUNON MagLev fans with copper heatsink and heat pipes — dedicated to the Lenovo ThinkPad P15 first generation laptop (N19E). The component is pulled from a working device and has been thoroughly tested — we guarantee 100% functionality. FRU number 5H40X89383 guarantees full compatibility with the ThinkPad P15 Gen 1 N19E model.

⚙️ PRODUCT CHARACTERISTICS

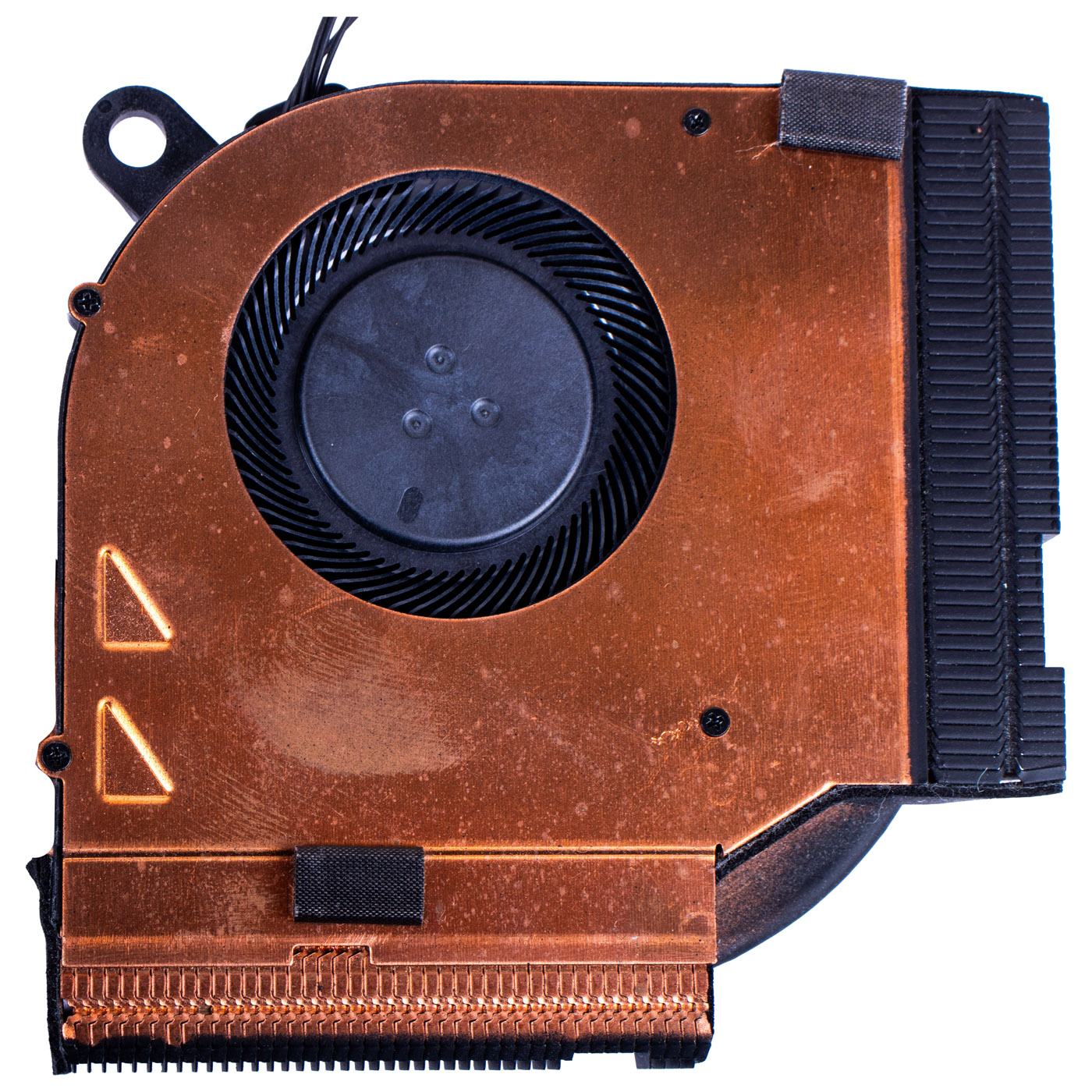

Complete cooling system for the Lenovo ThinkPad P15 first generation laptop in N19E variant. The set includes two SUNON MagLev fans (DC5V, 2.25W each) and a copper heatsink with heat pipes and thermal pads. The component is pulled from a working device and has been tested — we guarantee 100% functionality.

📋 TECHNICAL DATA

Part name: Cooling system (fans + heatsink)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 N19E
Display size: 15.6"

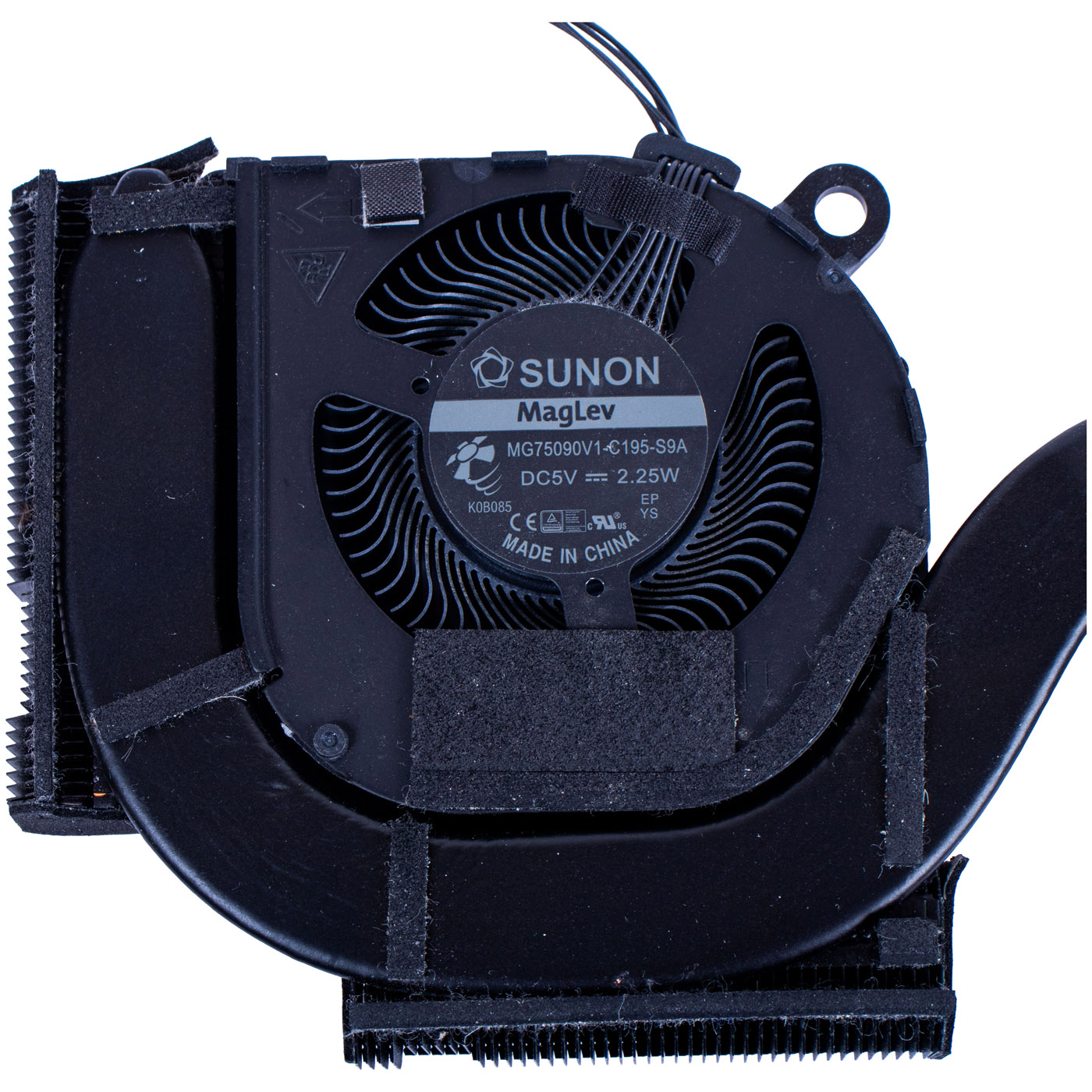

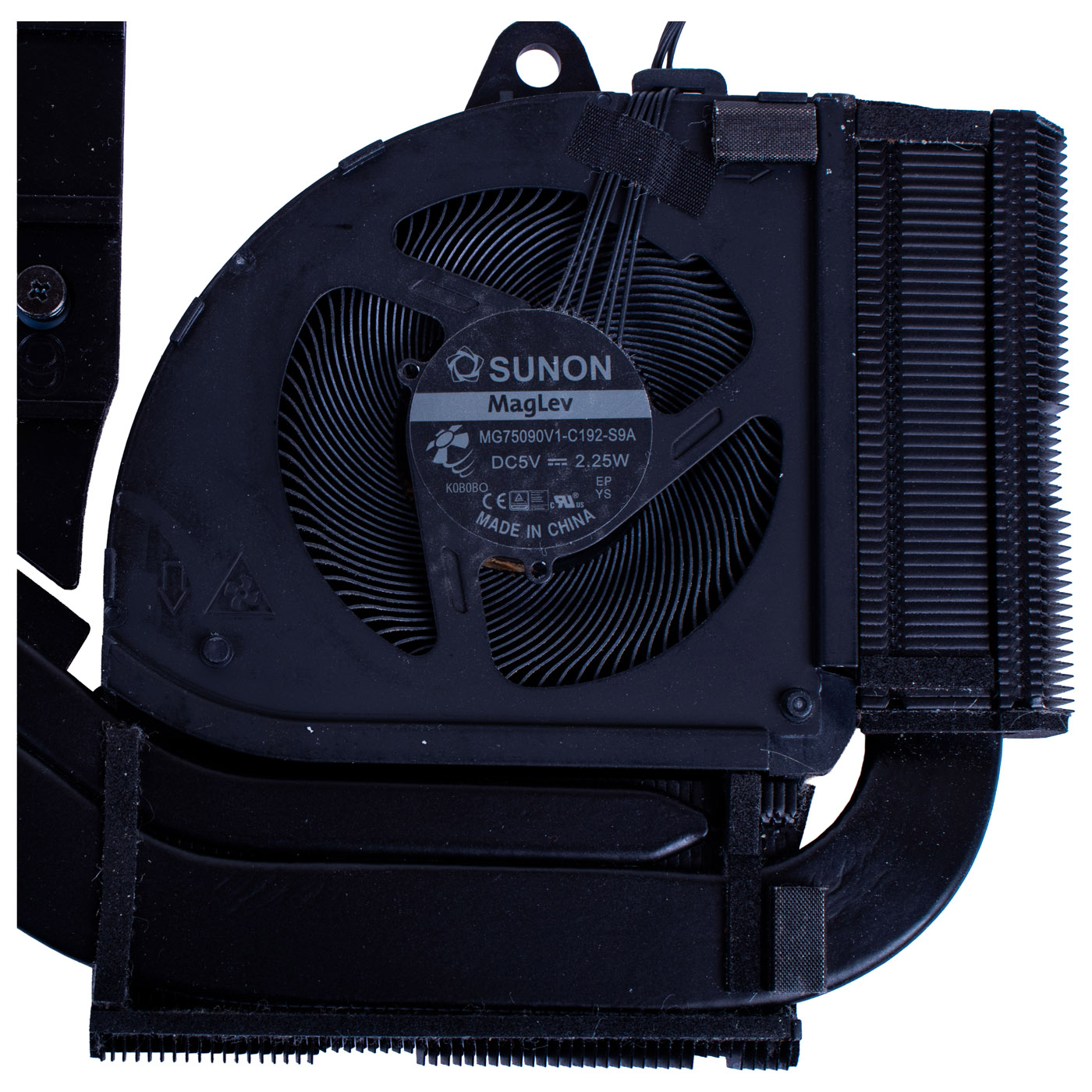

Fans: 2× SUNON MagLev DC5V 2.25W
Condition: Used (pulled, tested)

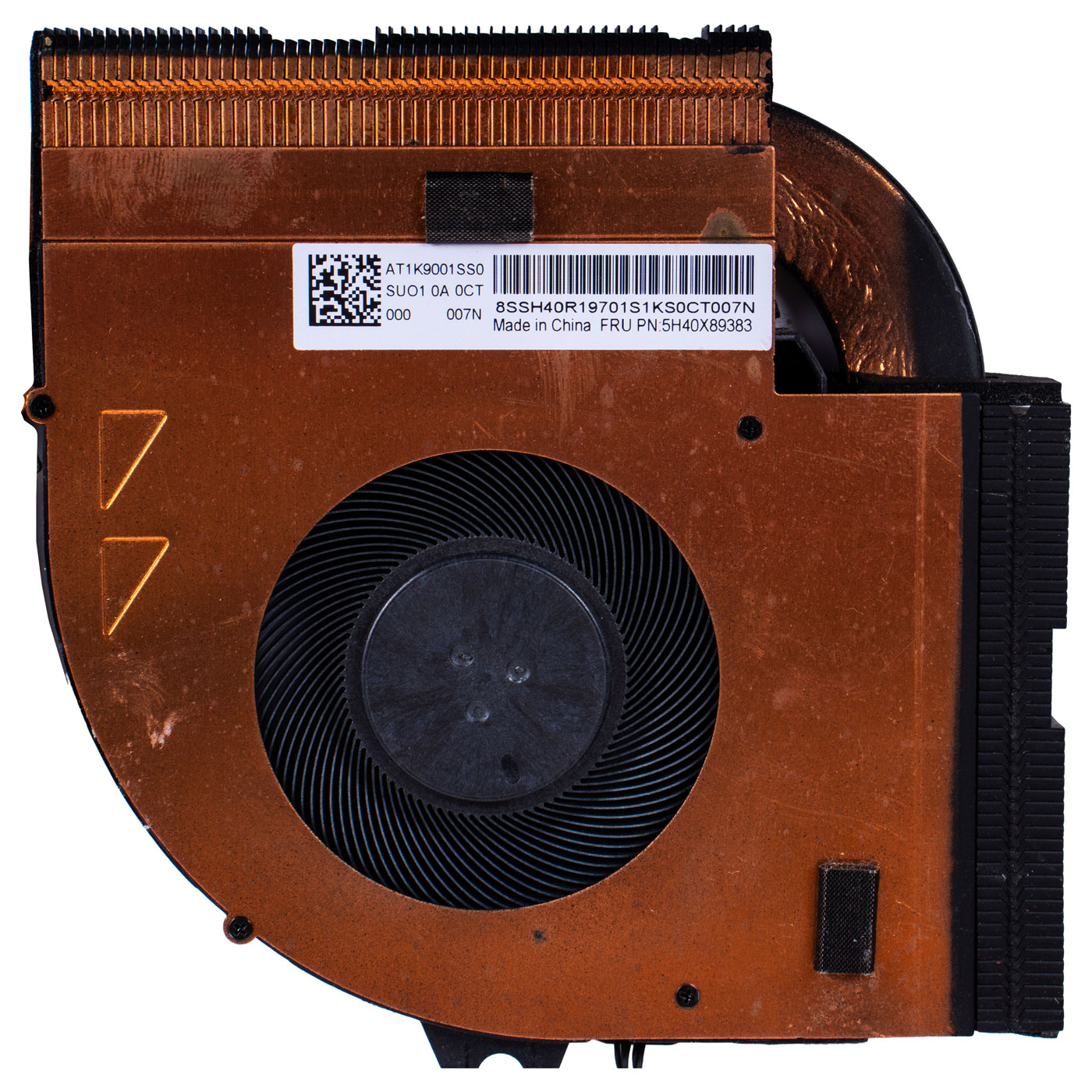

FRU: 5H40X89383
Alternative numbers: 5H40X89381, SH40R19701, AT1K9001SS0

🌟 KEY ADVANTAGES

🔹 Original Lenovo part — guaranteed perfect fit and reliability
🔹 Complete set — dual SUNON MagLev fans + copper heatsink with heat pipes
🔹 Tested component — pulled from a working device, 100% verified functionality
🔹 Effective cooling — ensures optimal CPU and GPU operating temperature

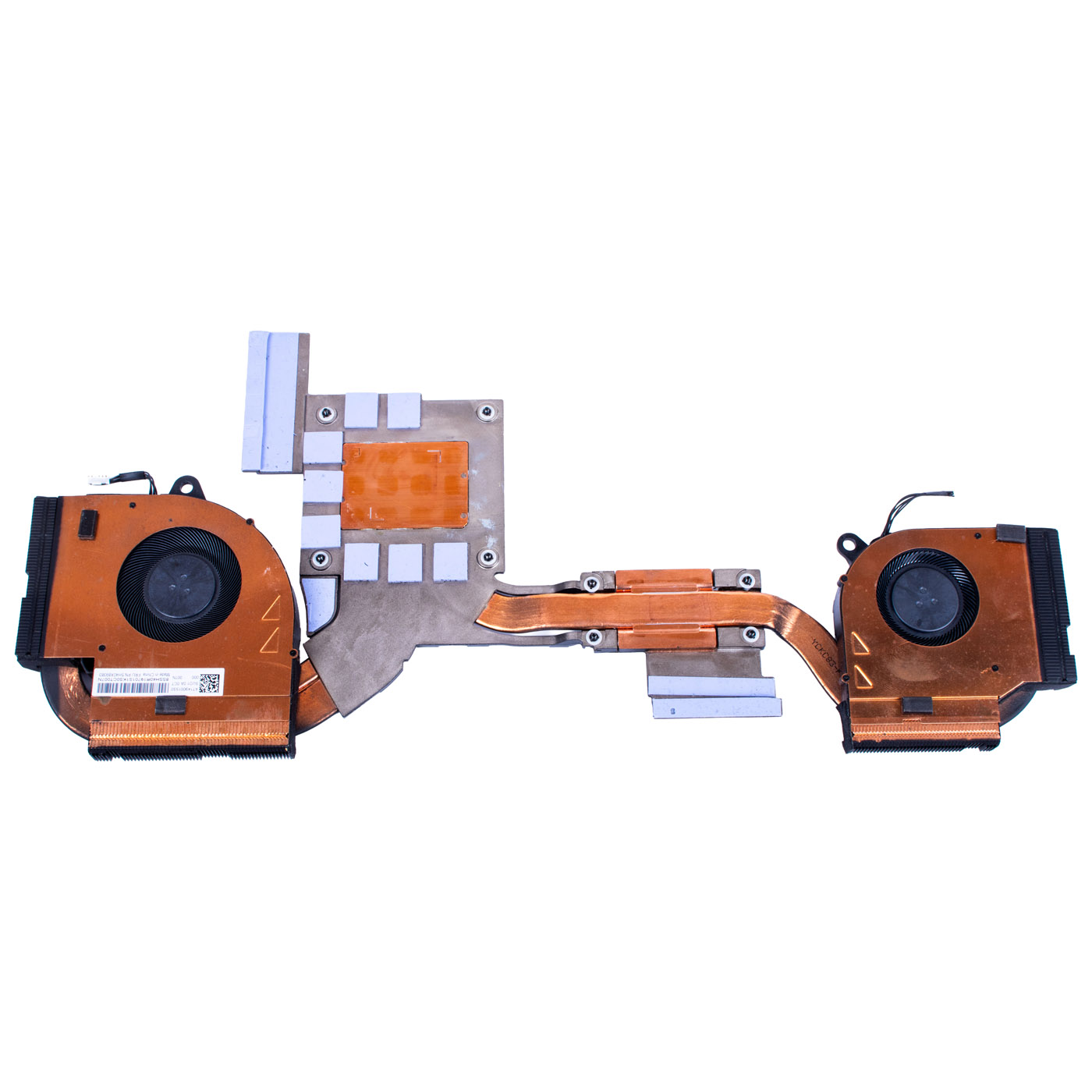

🔹 Thermal pads included — already mounted on the heatsink, ready for installation
🔹 Full compatibility — matched to ThinkPad P15 Gen 1 N19E under FRU 5H40X89383

🔢 CATALOG NUMBERS

Primary FRU: 5H40X89383
Alternative FRU: 5H40X89381, SH40R19701, AT1K9001SS0
Laptop model: Lenovo ThinkPad P15 Gen 1 N19E

❓ WHEN SHOULD YOU REPLACE THE COOLING SYSTEM?

• Laptop overheats and shuts down automatically or reduces performance
• Loud fan operation — clicking, grinding or other unusual noises
• Fan operates irregularly or does not start at all
• System displays warnings about high component temperatures
• Laptop automatically throttles CPU clock speed due to overheating

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Unscrew the bottom cover screws and carefully remove it
3. Disconnect the battery from the motherboard
4. Disconnect the fan connectors from the motherboard
5. Unscrew the heatsink screws — in reverse order to the markings on the heatsink
6. Carefully remove the old cooling system
7. Clean the CPU and GPU surfaces from thermal paste residue
8. Apply new thermal paste to the CPU and GPU
9. Install the new cooling system — tighten heatsink screws alternately following the marked sequence
10. Connect the fan connectors to the motherboard
11. Reconnect the battery, install the bottom cover and screw it in
12. Start the laptop and check operating temperatures using diagnostic software
Replacement by a service technician or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

Complete cooling system dedicated to Lenovo ThinkPad P15 first generation professional workstations in the N19E variant. Designed for efficient heat dissipation from powerful components during intensive work — 3D graphics rendering, engineering calculations, advanced data analysis. Component is tested and ready for installation. The exact appearance and condition of the offered item are shown in the offer photos.

✅ COMPATIBILITY WARRANTY

The offered cooling system has been carefully verified and matched to the Lenovo ThinkPad P15 Gen 1 N19E model. We guarantee full compatibility under FRU number 5H40X89383 and 100% functionality of the component. In case of any compatibility issues, we offer hassle-free returns within 14 days.
