🔧 CPU Fan with Heatsink for Lenovo ThinkPad P15 Gen 1 N19P 🔧

🖥️ ThinkPad P15 Gen 1 | CPU Cooling System | 15.6" | N19P | 5H40X89382

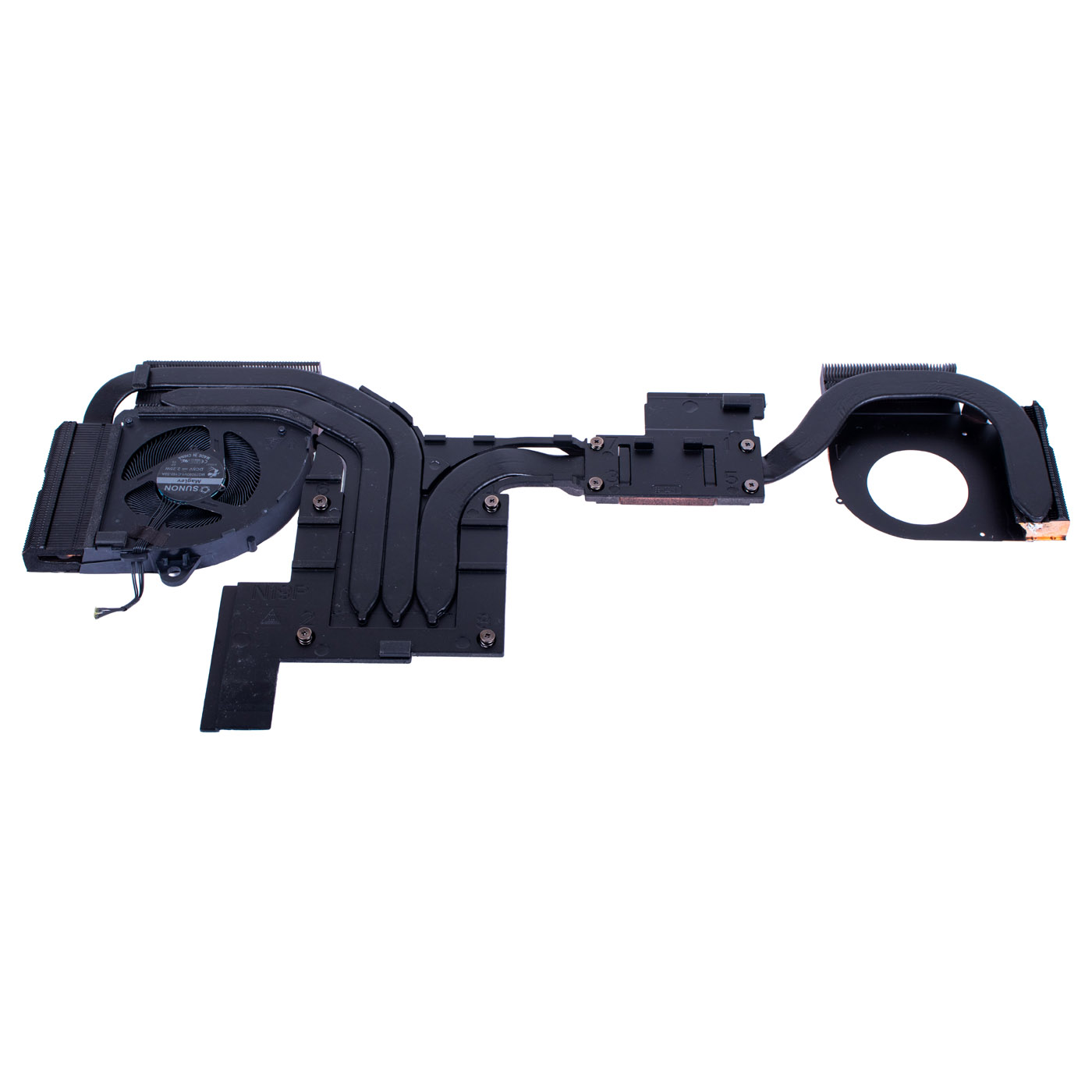

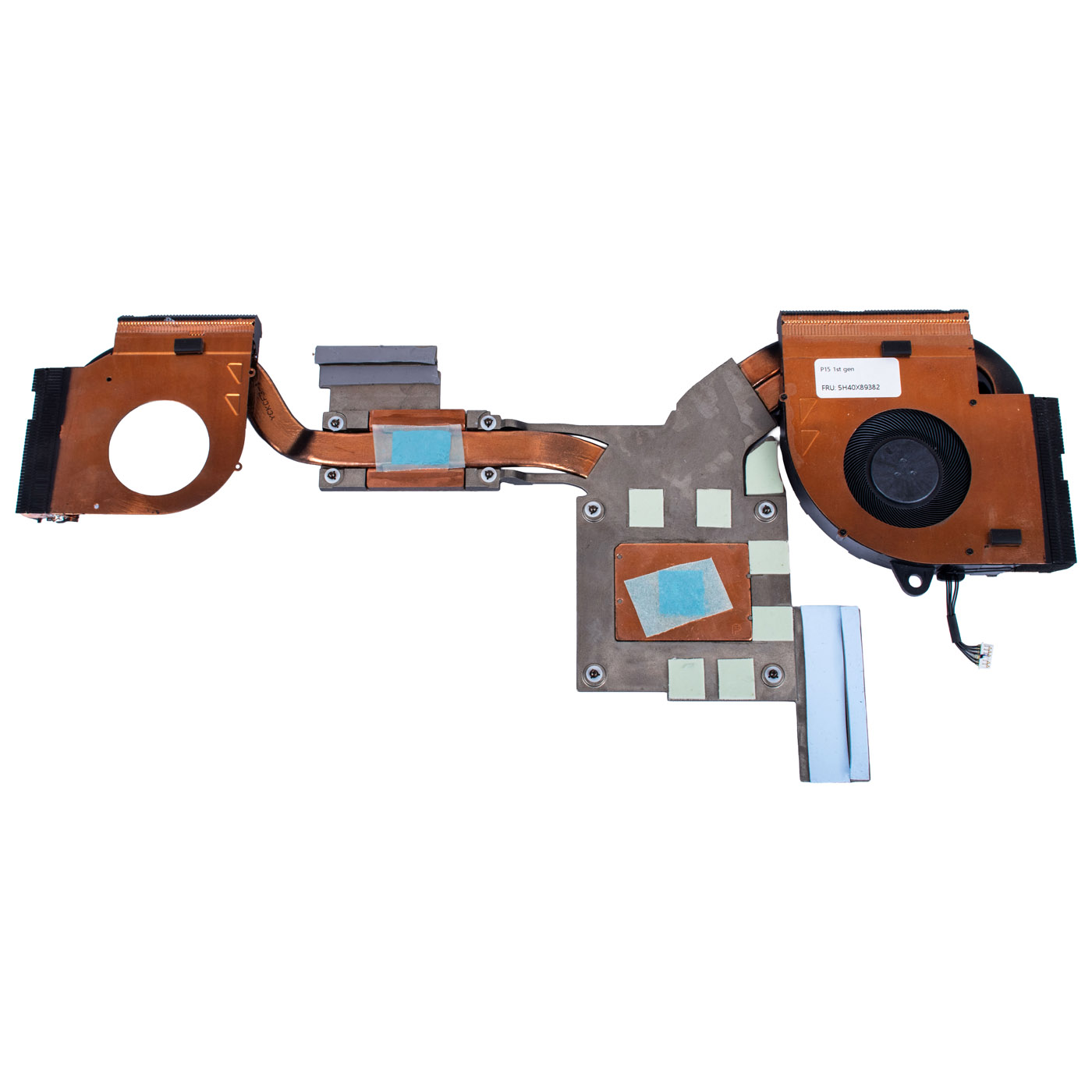

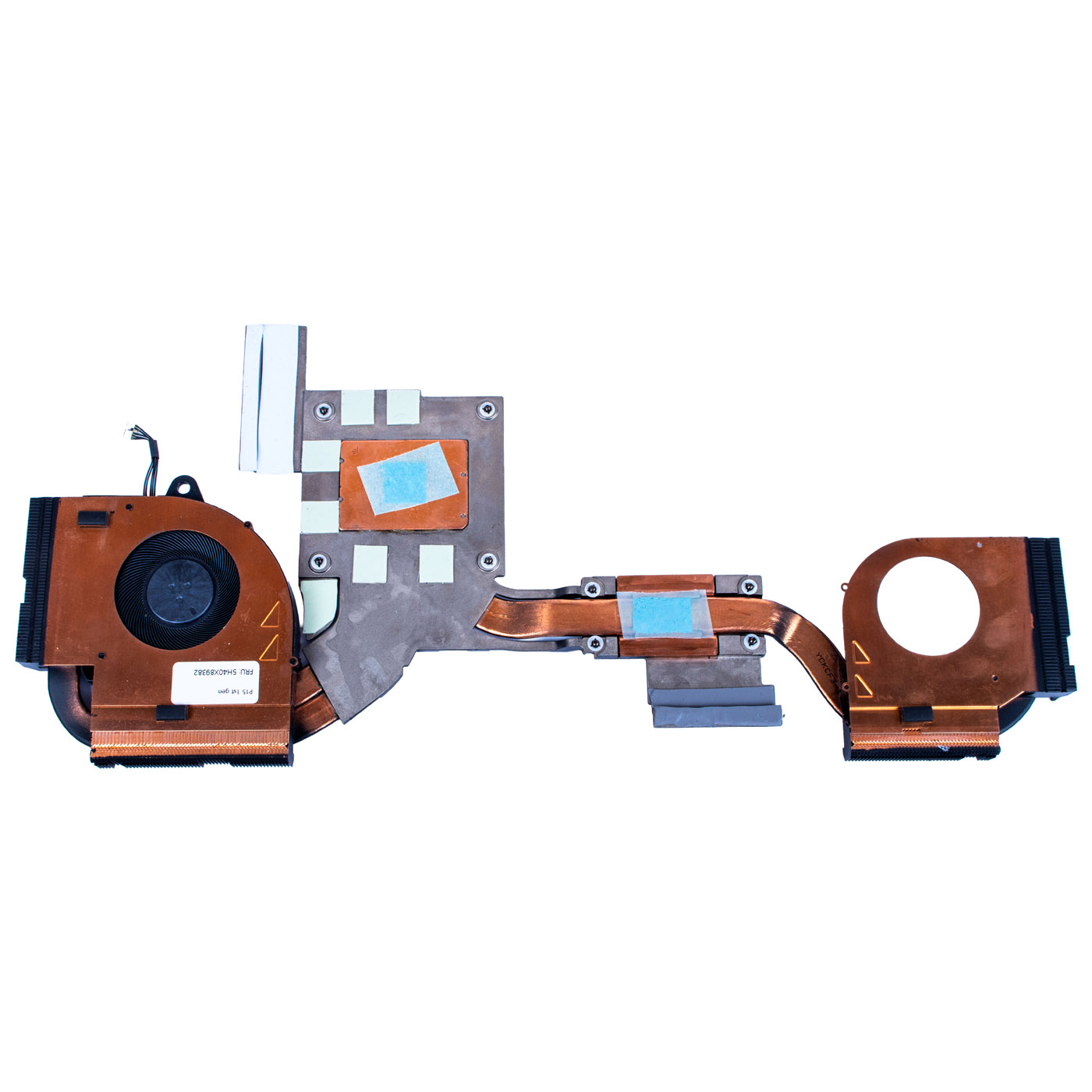

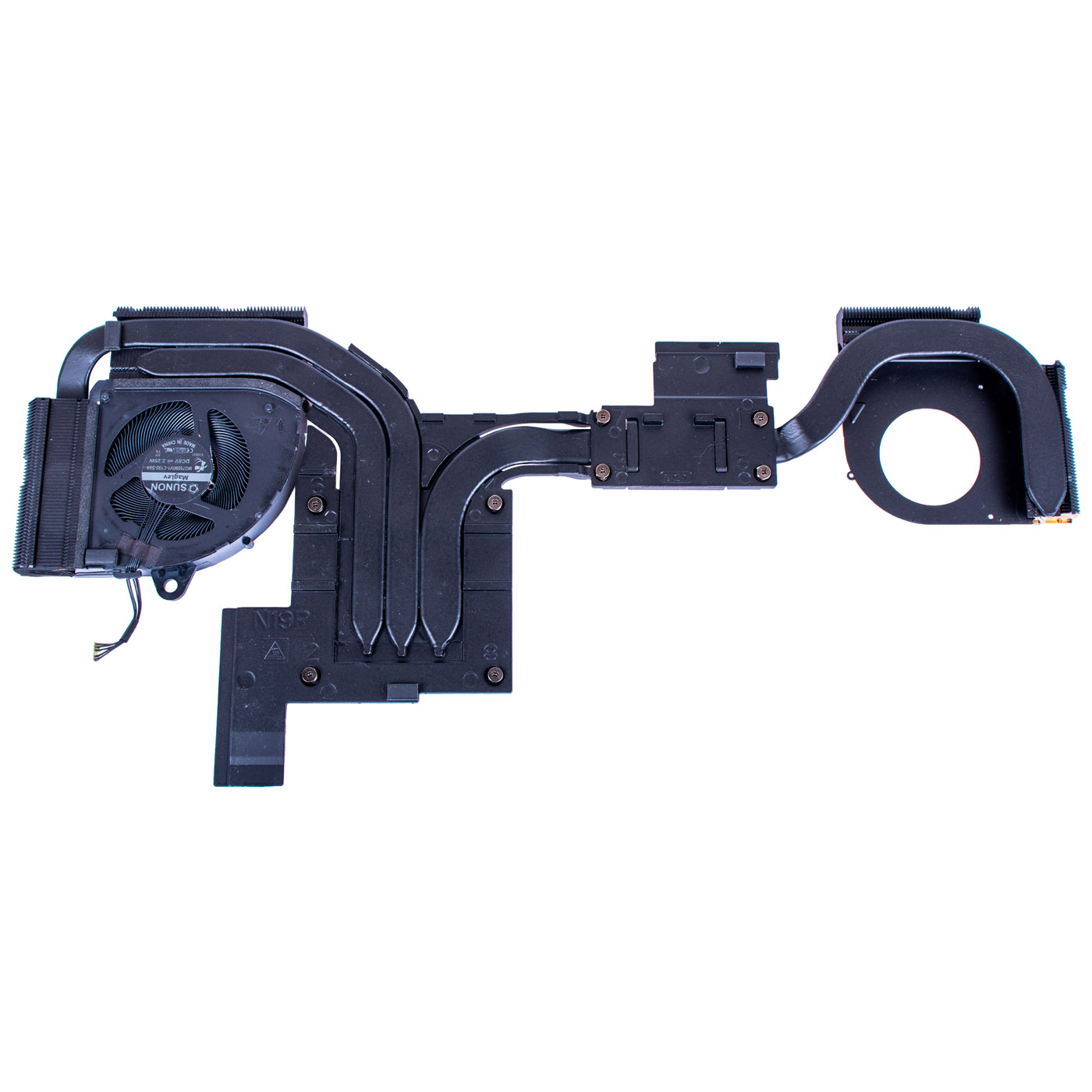

Original CPU cooling system with fan and copper heatsink dedicated to the Lenovo ThinkPad P15 first generation laptop (N19P). Brand new component with FRU number 5H40X89382 guarantees full compatibility with the ThinkPad P15 Gen 1 N19P model. Note: the set includes only the CPU fan — the GPU fan is not included.

⚙️ PRODUCT CHARACTERISTICS

Brand new original cooling system for the Lenovo ThinkPad P15 first generation laptop in the N19P variant. The set includes the CPU fan and a copper heatsink with heat pipes and thermal pads. The GPU fan is not included in the set. The component is designed for efficient heat dissipation from the processor, ensuring optimal operating temperature and system stability.

📋 TECHNICAL DATA

Part name: Cooling system (CPU fan + heatsink)
Brand: Lenovo ThinkPad
Compatible model: ThinkPad P15 Gen 1 N19P
Display size: 15.6"
Set contents: CPU fan + heatsink (without GPU fan)
Condition: New
FRU: 5H40X89382
Alternative numbers: 5H40X89384, SH40R19700, AT1K9002DT0

🌟 KEY ADVANTAGES

🔹 Original Lenovo part — guaranteed perfect fit and highest quality workmanship
🔹 Brand new component — no wear, full reliability
🔹 Effective CPU cooling — ensures optimal processor operating temperature
🔹 Copper heatsink with heat pipes — efficient heat dissipation
🔹 Full compatibility — matched to ThinkPad P15 Gen 1 N19P under FRU 5H40X89382
⚠️ Set contents: CPU fan + heatsink — GPU fan is not included

🔢 CATALOG NUMBERS

Primary FRU: 5H40X89382
Alternative FRU: 5H40X89384, SH40R19700, AT1K9002DT0
Laptop model: Lenovo ThinkPad P15 Gen 1 N19P

❓ WHEN SHOULD YOU REPLACE THE COOLING SYSTEM?

• Laptop overheats and shuts down automatically or reduces performance
• Loud fan operation — clicking, grinding or other unusual noises
• CPU fan operates irregularly or does not start at all
• System displays warnings about high processor temperature
• Laptop automatically throttles CPU clock speed due to overheating

🔧 INSTALLATION PROCESS

1. Turn off the laptop and disconnect the power supply and all external devices
2. Unscrew the bottom cover screws and carefully remove it
3. Disconnect the battery from the motherboard
4. Disconnect the CPU fan connector from the motherboard
5. Unscrew the heatsink screws — in reverse order to the markings on the heatsink
6. Carefully remove the old cooling system
7. Clean the CPU surface from thermal paste residue
8. Apply new thermal paste to the CPU
9. Install the new cooling system — tighten heatsink screws alternately following the marked sequence
10. Connect the CPU fan connector to the motherboard
11. Reconnect the battery, install the bottom cover and screw it in
12. Start the laptop and check CPU temperature using diagnostic software
Replacement by a service technician or a person experienced in laptop repairs is recommended.

🎯 PURPOSE

CPU cooling system dedicated to Lenovo ThinkPad P15 first generation professional workstations in the N19P variant. Designed for efficient heat dissipation from the processor during intensive work — 3D graphics rendering, engineering calculations, advanced data analysis. Brand new, ready for installation. The set includes only the CPU fan and heatsink — the GPU fan is not included. The exact appearance and condition of the offered item are shown in the offer photos.

✅ COMPATIBILITY WARRANTY

The offered cooling system has been carefully verified and matched to the Lenovo ThinkPad P15 Gen 1 N19P model. We guarantee full compatibility under FRU number 5H40X89382. In case of any compatibility issues, we offer hassle-free returns within 14 days.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the compatibility of the cooling system with your ThinkPad P15? Our specialists will be happy to help you select the right part and provide installation guidance. Get in touch!
📱 Phone: +48-601-415357
📧 Email: sklep@abcdeal.pl

🦁 ABCDEAL — Your Trusted Lenovo Parts Specialist

We have been specialising in providing original parts for Lenovo laptops for years. Our experience allows us to offer the highest quality products that meet the expectations of even the most demanding customers. Trust the experts and restore your ThinkPad P15 to full working order.

🎯 Choose professionals — invest in high quality!

By choosing the original CPU cooling system for Lenovo ThinkPad P15 Gen 1 from our offer, you invest in reliability and stable laptop operation. Benefit from the expertise of ABCDEAL specialists and restore optimal thermal performance to your device.
