🔧 45W AC Power Adapter for Lenovo IdeaPad Laptops 🔧

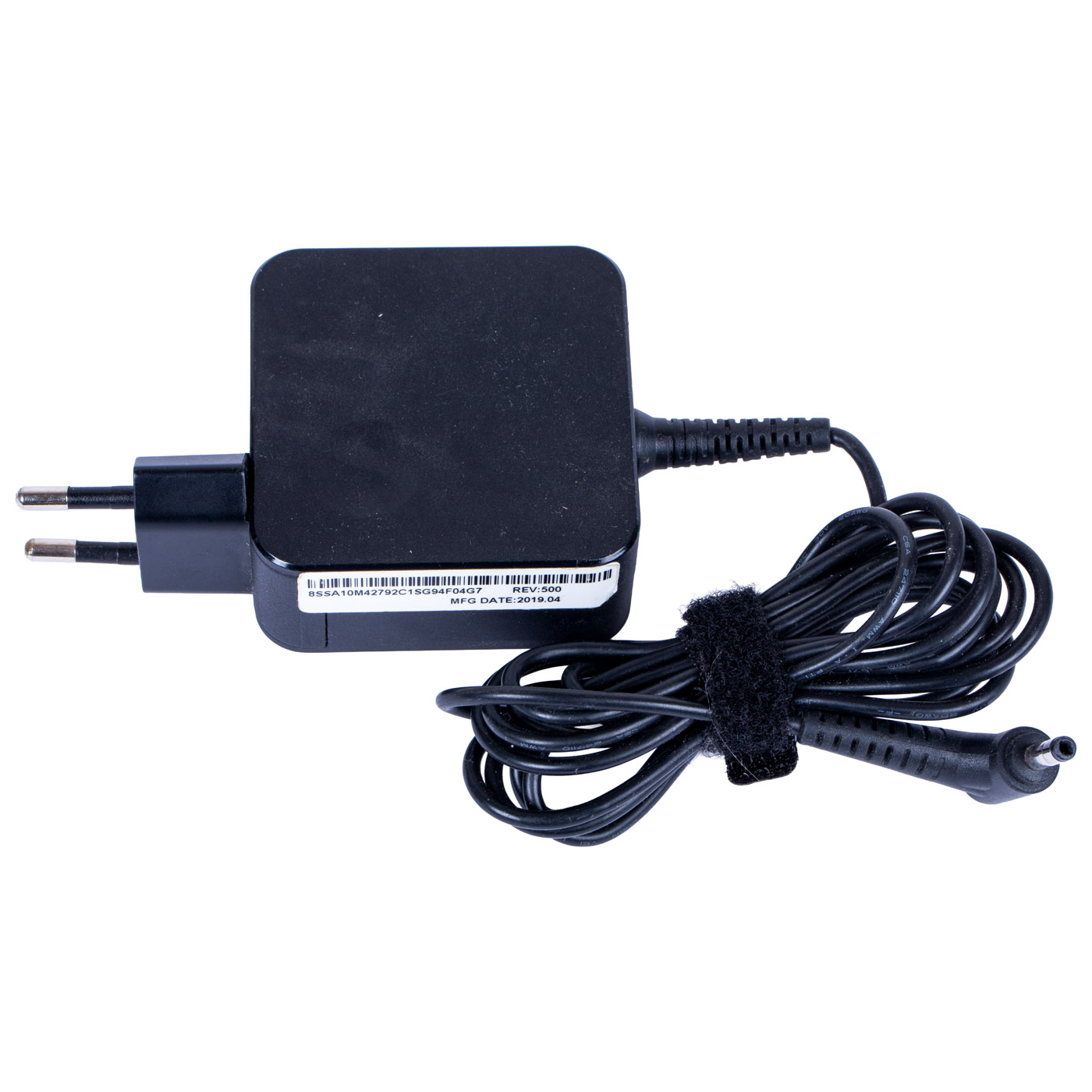

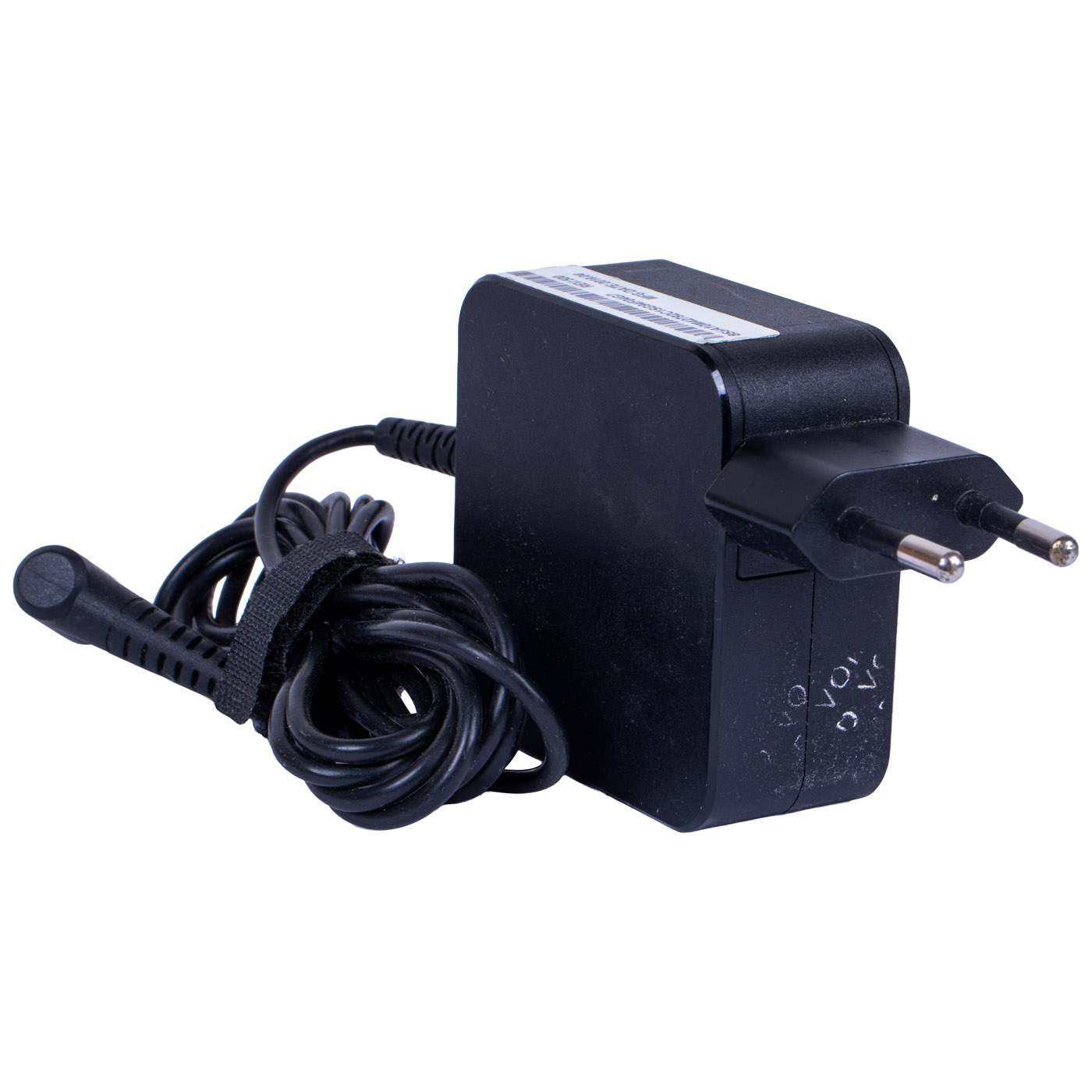

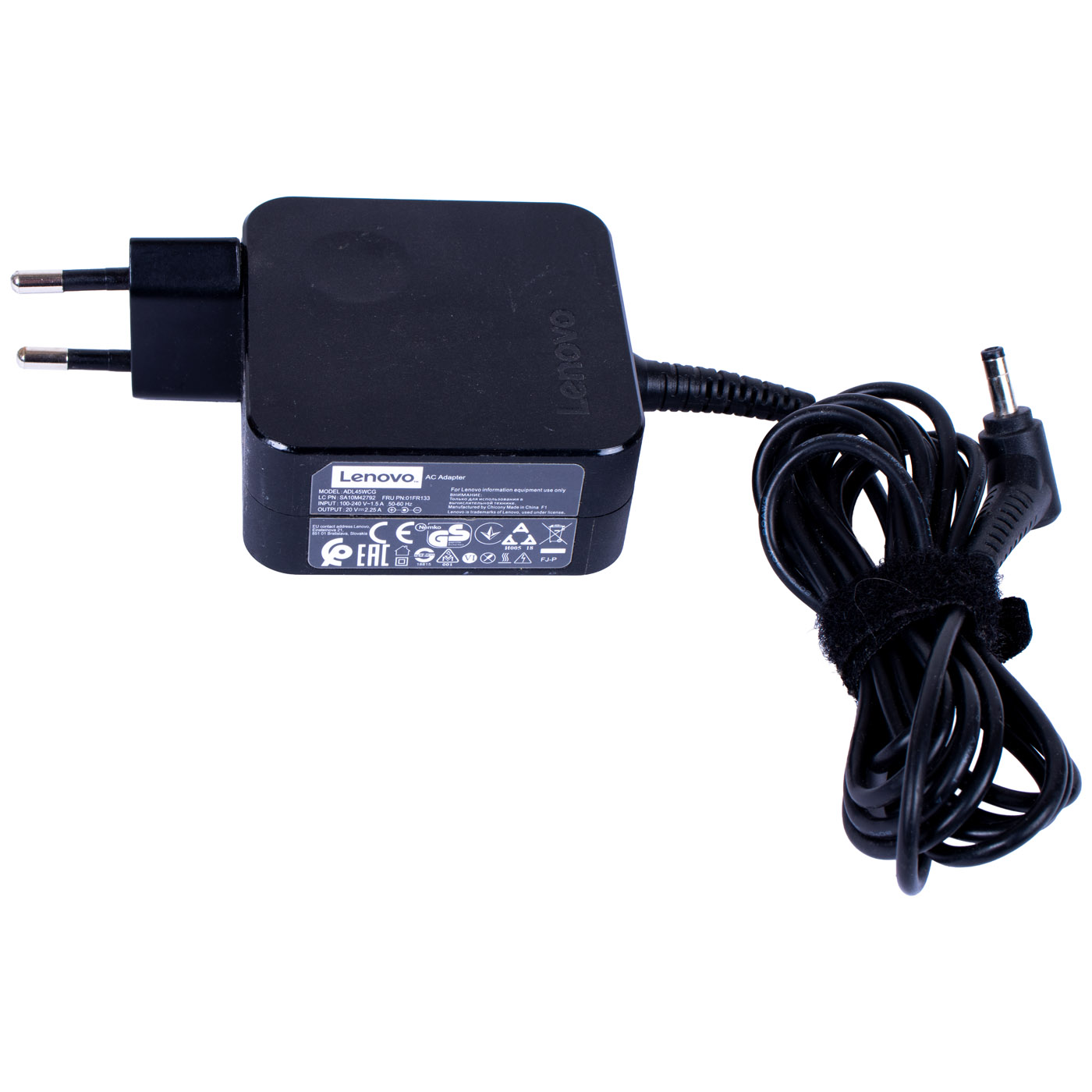

🖥️ Original 45W Power Adapter | Slim Round Yellow Tip | 20V | Lenovo IdeaPad

⚙️ PRODUCT FEATURES

Original Lenovo 45W AC power adapter, a reliable power source for your IdeaPad laptop. Equipped with a Slim Round Yellow Tip connector, it provides a stable 20V output, ensuring optimal device performance and efficient battery charging. The adapter is used, but in very good technical condition and has been thoroughly tested for full operational functionality. Compatible with a wide range of IdeaPad models,  listed further in this offer description.

📋 TECHNICAL DATA

Product name: Original Lenovo AC power adapter
Brand: Lenovo IdeaPad
Model/type : AL45WCG
Connector type: Slim Round barrel angle 90° | thin round plug
Plugin: wallplug (EU)
FRU: 01FR133
Condition: Used
Functionality: 100% functional
Warranty: 6 months

⚡ ELECTRICAL PARAMETERS

Output voltage: 20V DC ±5%
Output current: 1.5A
Output power: 45W (20V × 1.5A = 45W)
Input voltage: 100-240V AC (universal)
Input frequency: 50-60Hz
Energy efficiency: Level VI (compliant with the latest efficiency standards)
Power factor: >0.9 at full load

🔌 DC CONNECTOR SPECIFICATION

Connector type: round, 90° angled
Outer diameter: 4.0 mm
Inner diameter: 1.7 mm
Plug length: 11.0 mm
Center pin: none
Contact material: gold-plated copper
DC cable length: approximately 1.95 m

📐 DIMENSIONS

Housing dimensions: 63 × 28 × 63 mm (L × W × H)
Housing color: matte black
Housing material: high-quality ABS+PC plastic (fire-resistant)

💻 SUPPORTED LENOVO LAPTOPS

• 530S:

  530S-14ARR, 530S-14IKB, 530S-15IKB

• IdeaPad (inne):

  IdeaPad FLEX, IdeaPad Flex, IdeaPad S-serie, IdeaPad na, IdeaPad series, Yoga IdeaPad

• IdeaPad 100:

  IdeaPad 100, IdeaPad 100-14IBD

• IdeaPad 110:

  IdeaPad 110

• IdeaPad 120:

  IdeaPad 120S

• IdeaPad 130:

  IdeaPad 130, IdeaPad 130-14IKB, IdeaPad 130-15AST, IdeaPad 130-15IKB

• IdeaPad 3:

  IdeaPad 3-14ADA05, IdeaPad 3-14ADA6, IdeaPad 3-14ALC6, IdeaPad 3-14ARE05, IdeaPad 3-14IIL05, IdeaPad 3-14IML05, IdeaPad 3-14ITL05, IdeaPad 3-14ITL6, IdeaPad 3-15ADA6, IdeaPad 3-15ALC6, IdeaPad 3-15ARE05, IdeaPad 3-15IIL05, IdeaPad 3-15IML05, IdeaPad 3-15ITL05, IdeaPad 3-15ITL6, IdeaPad 3-17ADA05, IdeaPad 3-17ADA6, IdeaPad 3-17ALC6, IdeaPad 3-17ARE05, IdeaPad 3-17IIL05, IdeaPad 3-17IML05, IdeaPad 3-17ITL6, IdeaPad 3xx

• IdeaPad 310:

  IdeaPad 310, IdeaPad 310-14ISK, IdeaPad 310S

• IdeaPad 320:

  IdeaPad 320, IdeaPad 320-14AST, IdeaPad 320-14IAP, IdeaPad 320-14IKB, IdeaPad 320-14ISK, IdeaPad 320-15ABR, IdeaPad 320-15AST, IdeaPad 320-15IAP, IdeaPad 320-15IKB, IdeaPad 320-15IKBRN, IdeaPad 320-15ISK, IdeaPad 320-17ABR, IdeaPad 320-17AST, IdeaPad 320-17IKB, IdeaPad 320-17ISK, IdeaPad 320C-15IKB, IdeaPad 320S, IdeaPad 320S-13IKB, IdeaPad 320S-14IKBR, IdeaPad 320S-15ABR, IdeaPad 320S-15AST

• IdeaPad 330:

  IdeaPad 330, IdeaPad 330-14AST, IdeaPad 330-14IKB, IdeaPad 330-15ARR, IdeaPad 330-15AST, IdeaPad 330-15IGM, IdeaPad 330-15IKB, IdeaPad 330-17AST, IdeaPad 330-17IKB, IdeaPad 330S, IdeaPad 330S-14AST, IdeaPad 330S-14IKB, IdeaPad 330S-15ARR, IdeaPad 330S-15AST, IdeaPad 330S-15IKB

• IdeaPad 5:

  IdeaPad 5-14ALC05, IdeaPad 5-14ARE05, IdeaPad 5-14IIL05, IdeaPad 5-14ITL05, IdeaPad 5-15ALC05, IdeaPad 5-15ARE05, IdeaPad 5-15IIL05

• IdeaPad 510:

  IdeaPad 510, IdeaPad 510S

• IdeaPad 520:

  IdeaPad 520, IdeaPad 520-15IKB, IdeaPad 520S

• IdeaPad 530:

  IdeaPad 530S

• IdeaPad 7:

  IdeaPad 7xx

• IdeaPad 710:

  IdeaPad 710S, IdeaPad 710s

• IdeaPad 720:

  IdeaPad 720S

• IdeaPad B110:

  IdeaPad B110, IdeaPad B110-14IBR

• IdeaPad C340:

  IdeaPad C340-14API, IdeaPad C340-14IML, IdeaPad C340-14IWL, IdeaPad C340-15IML, IdeaPad C340-15IWL

• IdeaPad L3:

  IdeaPad L3-15IML05, IdeaPad L3-15ITL6

• IdeaPad L340:

  IdeaPad L340, IdeaPad L340-15API, IdeaPad L340-15IWL, IdeaPad L340-17API, IdeaPad L340-17IWL

• IdeaPad S130:

  IdeaPad S130

• IdeaPad S145:

  IdeaPad S145-14API, IdeaPad S145-14AST, IdeaPad S145-14IIL, IdeaPad S145-14IKB, IdeaPad S145-14IWL, IdeaPad S145-15API, IdeaPad S145-15AST, IdeaPad S145-15IIL, IdeaPad S145-15IKB, IdeaPad S145-15IWL

• IdeaPad S340:

  IdeaPad S340-14API, IdeaPad S340-14IIL, IdeaPad S340-14IML, IdeaPad S340-14IWL, IdeaPad S340-15API, IdeaPad S340-15IIL, IdeaPad S340-15IML, IdeaPad S340-15IWL

• IdeaPad S530:

  IdeaPad S530-13IML, IdeaPad S530-13IWL

• IdeaPad S540:

  IdeaPad S540-14API, IdeaPad S540-14IML, IdeaPad S540-14IWL, IdeaPad S540-15IML, IdeaPad S540-15IWL

• Inne:

  v3-25a-, v3-25a-coo-

• V130:

  V130-14

• V14:

  V14 G1-IML, V14 G2-ALC, V14 G2-ITL, V14-ADA, V14-ARE, V14-IIL, V14-IKB, V14-IWL

• V145:

  V145-14AST, V145-15AST

• V15:

  V15 G2-ALC, V15 G2-ITL, V15-ADA, V15-IIL, V15-IKB, V15-IWL

• V155:

  V155-15, V155-15API

• V15515:

  V15515

• V17:

  V17 G2-ITL, V17-IIL

• V320:

  V320-17IKB, V320-17ISK

• V720:

  V720S-14IKB

• Yoga (others):

  ThinkPad Yoga

• Yoga 510:

  Yoga 510

• Yoga 520:

  Yoga 520, Yoga 520-14IKB

• Yoga 530:

  Yoga 530, Yoga 530-14ARR, Yoga 530-14IKB

• Yoga 7:

  Yoga 7

• Yoga 710:

  Yoga 710

• Yoga 720:

  Yoga 720-12IKB

• Yoga C640:

  Yoga C640-13

• Yoga S740:

  Yoga S740, Yoga S740-14, Yoga S740-14IIL

and others

🌟 KEY ADVANTAGES

🔹 Original Lenovo part — guaranteed quality and device safety
🔹 Slim Round Yellow Tip connector — compatible with IdeaPad models
🔹 Compact dimensions — convenient to carry in a laptop bag
🔹 Stable power — reliable energy delivery without voltage spikes
🔹 Wide compatibility — fits many models in the IdeaPad series
🔹 Verified technical condition — used, tested, fully functional

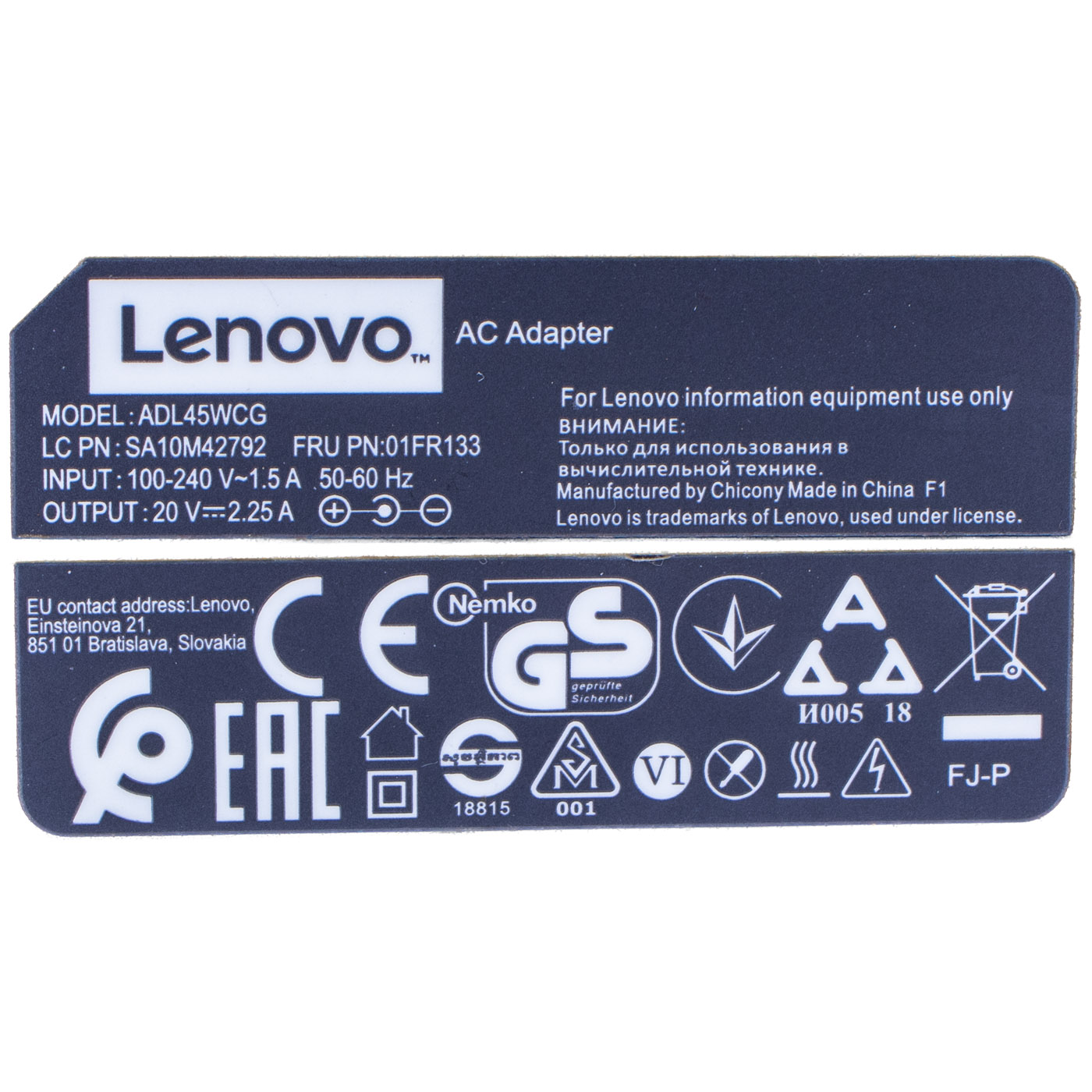

🔢 PART NUMBERS

Main FRU: 01FR133
Replacement FRUs: 01FR124, 01FR116, 01FR020, SA10M42792
Identification: Original Lenovo 45W 20V Slim Round Yellow Tip 4mm power adapter

❓ WHEN SHOULD YOU REPLACE THE POWER ADAPTER?

• When the current adapter has suffered mechanical damage
• When the power cable is frayed or damaged
• When the laptop does not charge properly or charges intermittently
• When the adapter overheats during operation
• When you notice decreased battery performance with the adapter connected
• When you need an additional adapter to work in different locations
• When the adapter emits unusual noises during operation

🔧 CONNECTION PROCESS

1. Plug the adapter into a 220/230V power outlet
2. Connect the THIN PLUG tip to the appropriate port on the laptop
3. Check whether the charging indicator on the laptop lights up
4. Make sure the laptop recognizes the adapter and starts charging
5. For optimal performance, allow the battery to charge fully during the first use

🎯 PURPOSE

The adapter is dedicated to Lenovo IdeaPad laptops equipped with a power port — a thin plug with a 4 mm outer diameter. It provides stable power during intensive work while ensuring safe battery charging. Ideal for everyday office use and as a spare power source during business trips.

✅ COMPLIANCE GUARANTEE

The offered adapter is 100% compatible with the Lenovo IdeaPad laptop models listed above. It has been tested for performance and user safety. As an original Lenovo product, it ensures optimal operating parameters while protecting your laptop’s battery from damage. If you have any doubts regarding compatibility with your model, we encourage you to contact our experts, who will help verify compatibility.

📞 NEED HELP? CONTACT OUR EXPERTS!

Do you have questions about the adapter or are you unsure whether it will fit your laptop? Our specialists are at your disposal! We will be happy to help you choose the right adapter for your IdeaPad model. With many years of industry experience, we can recommend the best solution tailored to your needs.

📱 Phone: +48-601-415357
📧 Email: [email protected]

🦁 ABCDEAL — Your Trusted Lenovo Parts Specialist

At ABCDEAL, we specialize in delivering high-quality parts for Lenovo ThinkPad and IdeaPad laptops. Our many years of experience allow us to offer proven and trustworthy products. Every adapter undergoes a thorough technical inspection before shipping, which guarantees full functionality. We prioritize professionalism and customer satisfaction, which is why we always provide expert advice and technical support.

🎯 Choose professionals — invest in high quality!

An original Lenovo adapter is an investment in the safety and long-term operation of your laptop. By choosing a verified product from ABCDEAL, you gain the confidence that your IdeaPad will be powered safely and efficiently. Remember that the quality of the power adapter has a direct impact on the battery’s lifespan and the entire system. Do not risk using non-original adapters that may cause damage — choose proven quality and enjoy peace of mind and long operating time for your laptop!
